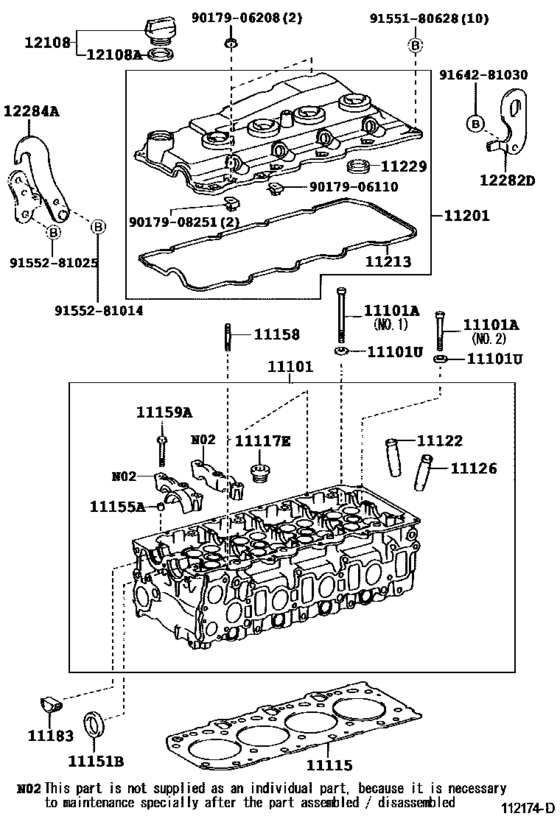

Cylinder Head ([08.2001 - 08.2006] (0108-0608)2KDFTV) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-0L050
Head Sub-Assy, Cylinder
[10.2004 - 08.2006] 2KDFTV..KLH1#,2# (L) |
11101-0L050 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-30071 Head Sub-Assy, CylinderCYLINDER [10.2004 - 08.2006] 2KDFTV..KLH1#,2# (L) |
11101-30071 |
from US $1,302.64 |
||
|
11101
|
11101
11101-0L051
Head Sub-Assy, Cylinder
[08.2010 -] 2KDFTV..KLH1#,2#..STD (L) |
11101-0L051 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-30071 Head Sub-Assy, CylinderCYLINDER [08.2010 -] 2KDFTV..KLH1#,2#..STD (L) |
11101-30071 |
from US $1,302.64 |
||
|
11101
|
11101
11101-30040 Head Sub-Assy, CylinderCYLINDER [08.2001 - 06.2002] 2KDFTV..KLH1#,2# |
11101-30040 |
US $1,834.56 |
||
| replacements | |||||
|
11101
|
11101
11101-30071 Head Sub-Assy, CylinderCYLINDER [08.2001 - 06.2002] 2KDFTV..KLH1#,2# |
11101-30071 |
from US $1,302.64 |
||
|
11101
|
11101
23770-30021 Pipe Assy, Nozzle Leakage, No.2NOZZLE LEAKAGE, NO.2 [08.2001 - 06.2002] 2KDFTV..KLH1#,2# |
23770-30021 |
US $70.76 |
||
|
11101
|
11101
23770-30031
Pipe Assy, Nozzle Leakage, No.2
[08.2001 - 06.2002] 2KDFTV..KLH1#,2# |
23770-30031 |
— | ||
|
11101
|
11101
83420-26010 Gage Assy, Water Temperature Sender[08.2001 - 06.2002] 2KDFTV..KLH1#,2# |
83420-26010 |
US $49.80 |
||
|
11101
|
11101
90430-12221 Gasket[08.2001 - 06.2002] 2KDFTV..KLH1#,2# |
90430-12221 |
from US $1.07 |
||
|
11101
|
11101
11101-30041 Head Sub-Assy, CylinderCYLINDER [06.2002 - 05.2004] 2KDFTV..KLH1#,2# |
11101-30041 |
US $1,834.56 |
||
| replacements | |||||
|
11101
|
11101
11101-30071 Head Sub-Assy, CylinderCYLINDER [06.2002 - 05.2004] 2KDFTV..KLH1#,2# |
11101-30071 |
from US $1,302.64 |
||
|
11101
|
11101
83420-26010 Gage Assy, Water Temperature Sender[06.2002 - 05.2004] 2KDFTV..KLH1#,2# |
83420-26010 |
US $49.80 |
||
|
11101
|
11101
90430-12221 Gasket[06.2002 - 05.2004] 2KDFTV..KLH1#,2# |
90430-12221 |
from US $1.07 |
||
|
11101
|
11101
11101-30060
Head Sub-Assy, Cylinder
[05.2004 - 10.2004] 2KDFTV..KLH1#,2# |
11101-30060 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-30071 Head Sub-Assy, CylinderCYLINDER [05.2004 - 10.2004] 2KDFTV..KLH1#,2# |
11101-30071 |
from US $1,302.64 |
||
|
11101
|
11101
11101-30071 Head Sub-Assy, CylinderCYLINDER [10.2009 - 08.2010] 2KDFTV..KLH1#,2#..STD |
11101-30071 |
from US $1,302.64 |
||
|
11101A
|
11101A
90910-02145 Bolt(For Cylinder Head Set)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# NO.2 |
90910-02145 |
from US $6.73 |
||
|
11101A
|
11101A
90910-02146 Bolt(For Cylinder Head Set)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# NO.1 |
90910-02146 |
from US $8.07 |
||
|
11101U
|
11101U
90560-13023 Spacer(For Cylinder Head Set Bolt)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
90560-13023 |
from US $2.18 |
||
|
11115
|
11115
11115-30040-A0
Gasket, Cylinder Head
[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK A,REFER REPAIR MANUAL |
11115-30040-A0 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-30041-A0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK A,REFER REPAIR MANUAL |
11115-30041-A0 |
from US $58.46 |
||
|
11115
|
11115
11115-30040-B0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK B,REFER REPAIR MANUAL |
11115-30040-B0 |
US $125.22 |
||
| replacement | |||||
|
11115
|
11115
11115-30041-B0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK B,REFER REPAIR MANUAL |
11115-30041-B0 |
from US $63.45 |
||
|
11115
|
11115
11115-30040-C0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK C,REFER REPAIR MANUAL |
11115-30040-C0 |
US $125.22 |
||
| replacement | |||||
|
11115
|
11115
11115-30041-C0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK C,REFER REPAIR MANUAL |
11115-30041-C0 |
from US $58.42 |
||
|
11115
|
11115
11115-30040-D0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK D,REFER REPAIR MANUAL |
11115-30040-D0 |
US $125.22 |
||
| replacement | |||||
|
11115
|
11115
11115-30041-D0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK D,REFER REPAIR MANUAL |
11115-30041-D0 |
from US $60.49 |
||
|
11115
|
11115
11115-30040-E0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK E,REFER REPAIR MANUAL |
11115-30040-E0 |
US $125.22 |
||
| replacement | |||||
|
11115
|
11115
11115-30041-E0 Gasket, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# MARK E,REFER REPAIR MANUAL |
11115-30041-E0 |
from US $57.86 |
||
|
11115
|
11115
11115-30041-A0 Gasket, Cylinder Head[02.2007 -] 2KDFTV..KLH1#,2# MARKA,REFER REPAIR MANUAL |
11115-30041-A0 |
from US $58.46 |
||
|
11115
|
11115
11115-30041-B0 Gasket, Cylinder Head[02.2007 -] 2KDFTV..KLH1#,2# MARKB,REFER REPAIR MANUAL |
11115-30041-B0 |
from US $63.45 |
||
|
11115
|
11115
11115-30041-C0 Gasket, Cylinder Head[02.2007 -] 2KDFTV..KLH1#,2# MARKC,REFER REPAIR MANUAL |
11115-30041-C0 |
from US $58.42 |
||
|
11115
|
11115
11115-30041-D0 Gasket, Cylinder Head[02.2007 -] 2KDFTV..KLH1#,2# MARKD,REFER REPAIR MANUAL |
11115-30041-D0 |
from US $60.49 |
||
|
11115
|
11115
11115-30041-E0 Gasket, Cylinder Head[02.2007 -] 2KDFTV..KLH1#,2# MARKE,REFER REPAIR MANUAL |
11115-30041-E0 |
from US $57.86 |
||
|
11117E
|
11117E
90341-14015 Plug, W/head Straight Screw, No.1[08.2001 - 05.2004] 2KDFTV..KLH1#,2# |
90341-14015 |
from US $2.13 |
||
|
11117E
|
11117E
90341-T0005
Plug, W/head Straight Screw, No.1
[10.2004 - 08.2006] 2KDFTV..KLH1#,2# (L) |
90341-T0005 |
— | ||
|
11122
|
11122
11122-30020 Bush, Valve Guide (OS 0.05)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# O/S 0.05 |
11122-30020 |
from US $8.19 |
||
|
11122
|
11122
11123-30020 Bush, Valve Guide[08.2001 - 08.2006] 2KDFTV..KLH1#,2# STD |
11123-30020 |
from US $8.03 |
||
|
11126
|
11126
11122-30020 Bush, Valve Guide (OS 0.05)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# O/S 0.05 |
11122-30020 |
from US $8.19 |
||
|
11126
|
11126
11123-30020 Bush, Valve Guide[08.2001 - 08.2006] 2KDFTV..KLH1#,2# STD |
11123-30020 |
from US $8.03 |
||
|
11151B
|
11151B
90311-32019 Seal, Oil(For Camshaft Setting)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
90311-32019 |
from US $6.27 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[08.2001 - 05.2004] 2KDFTV..KLH1#,2# |
90253-10004 |
US $2.15 |
||
|
11155A
|
11155A
90253-T0001
Pin, Ring W/head
[10.2004 - 08.2006] 2KDFTV..KLH1#,2# (L) |
90253-T0001 |
— | ||
|
11158
|
11158
90116-06149 Bolt, Stud(For Head To Cylinder Head Cover)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# S=9 & 16,L=37 |
90116-06149 |
US $1.61 |
||
|
11159A
|
11159A
90119-07011 Bolt(For Head To Camshaft Bearing Cap)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
90119-07011 |
US $0.79 |
||
|
11183
|
11183
11183-67020 Plug, Semicircular[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
11183-67020 |
from US $6.14 |
||
|
11201
|
11201
11210-30081
Cover Sub-Assy, Cylinder Head
[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
11210-30081 |
— | ||
| replacement | |||||
|
11201
|
11201
11210-30083 Cover Sub-Assy, Cylinder Head[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
11210-30083 |
from US $138.65 |
||
|
11201
|
11201
11210-30120
Cover Sub-Assy, Cylinder Head
[08.2006 -] 2KDFTV..KLH1#,2# |
11210-30120 |
— | ||
|
11213
|
11213
11213-30020
Gasket, Cylinder Head Cover
[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
11213-30020 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-30021 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
11213-30021 |
from US $13.98 |
||
|
11213
|
11213
11213-30021 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [06.2009 -] 2KDFTV..KLH1#,2# |
11213-30021 |
from US $13.98 |
||
|
11229
|
11229
23682-30020 Gasket, Cylinder Head Cover, No.3[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
23682-30020 |
from US $4.56 |
||
|
12108
|
12108
12180-21010 Cap Sub-Assy, Oil Filler[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
12180-21010 |
from US $11.76 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
90430-37140 |
from US $1.17 |
||
|
12282D
|
12282D
12282-67030 Hanger, Engine, No.2[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
12282-67030 |
US $62.33 |
||
|
12284A
|
12284A
12284-30020 Hanger, Engine, No.1 Upper[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
12284-30020 |
US $22.01 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.61 |
||
|
9017906208
|
9017906208
90179-06208 NUT |
90179-06208 |
US $1.25 |
||
|
9017908251
|
9017908251
90179-08251 New Genuine Part |
90179-08251 |
US $3.40 |
||
|
9155180628
|
9155180628
91551-80628 BOLT FLANGE |
91551-80628 |
US $1.08 |
||
|
9155281014
|
9155281014
91552-81014 New Genuine Part |
91552-81014 |
US $1.10 |
||
|
9155281025
|
9155281025
91552-81025 BOLT TLANGE |
91552-81025 |
US $1.79 |
||
|
9164281030
|
9164281030
91642-81030 Bolt |
91642-81030 |
US $3.05 |
||
