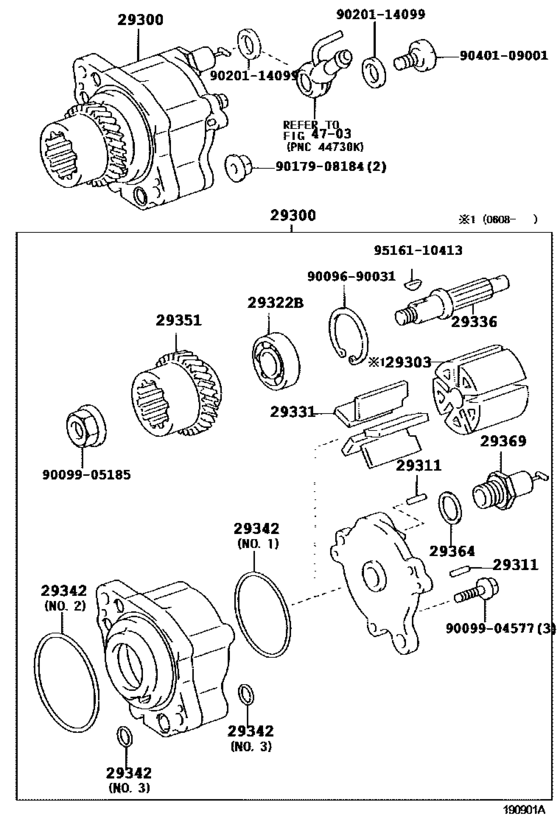

Vacuum Pump ([08.2001 - ] (0108- )2KDFTV) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-67020 Pump Assy, Vacuum[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
29300-67020 |
from US $522.60 |
||
|
29303
|
29303
29303-67020 Rotor Sub-Assy, Vacuum Pump[08.2006 -] 2KDFTV..KLH1#,2# |
29303-67020 |
US $20.97 |
||
|
29311
|
29311
29311-76010 Pin, Vacuum Pump Dowel, No.1[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
29311-76010 |
US $1.92 |
||
|
29322B
|
29322B
90099-10185 Bearing, Ball[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
90099-10185 |
US $7.69 |
||
|
29331
|
29331
29331-67020 Blade, Vacuum Pump, A[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
29331-67020 |
from US $5.24 |
||
|
29336
|
29336
29336-58050
Shaft, Vacuum Pump
[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
29336-58050 |
— | ||
|
29342
|
29342
29342-58010 Packing, Vacuum Pump[08.2001 - 08.2006] 2KDFTV..KLH1#,2# NO.1 |
29342-58010 |
from US $3.84 |
||
|
29342
|
29342
29342-67020 Packing, Vacuum Pump[08.2001 - 08.2006] 2KDFTV..KLH1#,2# NO.2 |
29342-67020 |
from US $3.92 |
||
|
29342
|
29342
29342-68010 Packing, Vacuum Pump[08.2001 - 08.2006] 2KDFTV..KLH1#,2# NO.3 |
29342-68010 |
from US $1.35 |
||
|
29351
|
29351
29351-67020 Gear, Vacuum Pump[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
29351-67020 |
from US $45.43 |
||
|
29364
|
29364
29364-66010 Washer, Vacuum Pump[07.1999 - 08.2006] 2KDFTV..KLH1#,2# |
29364-66010 |
US $3.23 |
||
|
29369
|
29369
29369-64030 Valve Sub-Assy, Check[07.1999 - 08.2006] 2KDFTV..KLH1#,2# |
29369-64030 |
US $23.76 |
||
|
9009690031
|
9009690031
90096-90031
RING HOLE SNAP
|
90096-90031 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9017908184
|
9017908184
90179-08184 NUT |
90179-08184 |
US $1.61 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.50 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
US $2.48 |
||
| replacement | |||||
|
9040109001
|
9040109001
90401-09003 Bolt, Union(For Vacuum Pump Union) |
90401-09003 |
from US $2.81 |
||
|
9516110413
|
9516110413
95161-10413
Key(For Alternator Pulley)
|
95161-10413 |
— | ||
