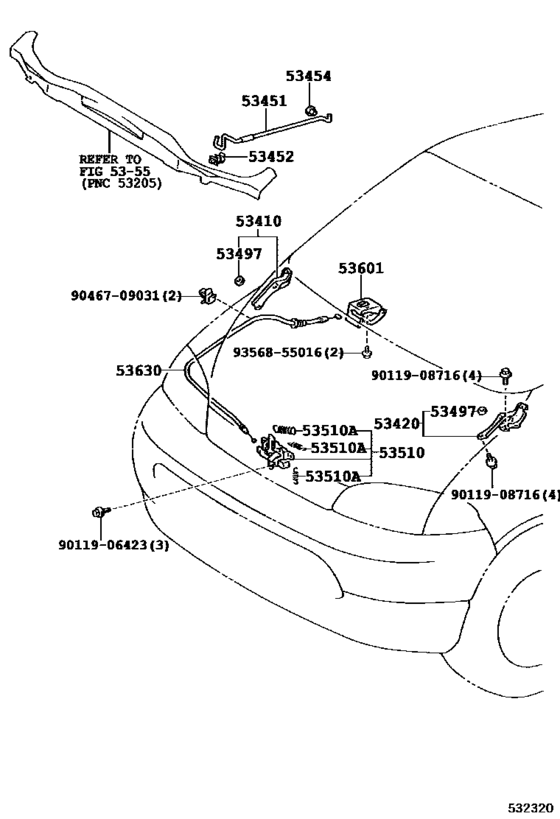

Hood Lock & Hinge ([08.2006 - ] (0608- )) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-26030 Hinge Assy, Hood, Rh[07.1999 - 08.2006] KLH1#,2# |
53410-26030 |
US $26.64 |
||
|
53420
|
53420
53420-26030 Hinge Assy, Hood, Lh[07.1999 - 08.2006] KLH1#,2# |
53420-26030 |
US $26.64 |
||
|
53451
|
53451
53440-26020 Rod, Hood SupportHOOD SUPPORT [07.1999 - 08.2006] KLH1#,2# |
53440-26020 |
US $20.09 |
||
|
53451
|
53451
53451-26040 Rod, Hood Support[08.2006 -] KLH1#,2# |
53451-26040 |
US $11.36 |
||
|
53452
|
53452
53452-26010 Holder, Hood Stay[08.2006 -] KLH1#,2# |
53452-26010 |
US $4.66 |
||
|
53454
|
53454
90480-15025 Grommet(For Hood Support)[08.2009 -] KLH1#,2# |
90480-15025 |
from US $3.94 |
||
|
53454
|
53454
90480-15028 Grommet(For Hood Support)[08.2006 - 07.2009] KLH1#,2# |
90480-15028 |
from US $1.83 |
||
|
53497
|
53497
53497-12050
Pad, Hood Hinge, No.1
[08.1995 - 02.2000] LXH1#,2#,RCH1#,2# T=1.0 |
53497-12050 |
— | ||
| replacements | |||||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[08.1995 - 02.2000] LXH1#,2#,RCH1#,2# T=1.0 |
53497-42010 |
US $1.79 |
||
|
53497
|
53497
53497-12070 Pad, Hood Hinge, No.1[08.1995 - 02.2000] LXH1#,2#,RCH1#,2# T=1.0 |
53497-12070 |
US $1.79 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[02.2000 - 08.2006] KLH1#,2# T=0.5 |
53497-42010 |
US $1.79 |
||
|
53510
|
53510
53510-26020 Lock Assy, Hood[08.1995 -] KLH12,22,LXH12,22,RCH12,13,22..RHD |
53510-26020 |
US $43.24 |
||
|
53510
|
53510
53510-26040 Lock Assy, Hood[08.2006 -] KLH12,22..RHD |
53510-26040 |
US $35.82 |
||
|
53510A
|
53510A
90506-09051 Spring, Tension(For Hood Lock)[08.1995 -] KLH18..03S;KLH12,2#,LXH1#,2#,RCH1#,2# WD=0.9,CW=9.75 |
90506-09051 |
US $2.04 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[08.1995 -] KLH18..03S;KLH12,2#,LXH1#,2#,RCH1#,2# WD=0.9,CW=21 |
90506-09055 |
from US $1.52 |
||
|
53510A
|
53510A
90506-18067 Spring, Tension(For Hood Lock)[08.1995 -] KLH18..03S;KLH12,2#,LXH1#,2#,RCH1#,2# WD=1.8,CW=13 |
90506-18067 |
from US $1.48 |
||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[09.1998 -] KLH18..03S;KLH12,2#,LXH1#,2#,RCH1#,2# BLACK,TRIM1# |
53601-10020-C0 |
US $35.47 |
||
|
53630
|
53630
53630-26020 Cable Assy, Hood Lock Control[08.1995 - 07.1999] LXH12,22,RCH12,13..RHD |
53630-26020 |
US $21.69 |
||
| replacement | |||||
|
53630
|
53630
53630-26021 Cable Assy, Hood Lock Control[08.1995 - 07.1999] LXH12,22,RCH12,13..RHD |
53630-26021 |
US $18.05 |
||
|
53630
|
53630
53630-26021 Cable Assy, Hood Lock Control[08.2001 - 08.2006] KLH12,22..RHD |
53630-26021 |
US $18.05 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.76 |
||
|
9046709031
|
9046709031
90467-09031 Clamp(For Hood Lock Control Cable) |
90467-09031 |
US $3.58 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
