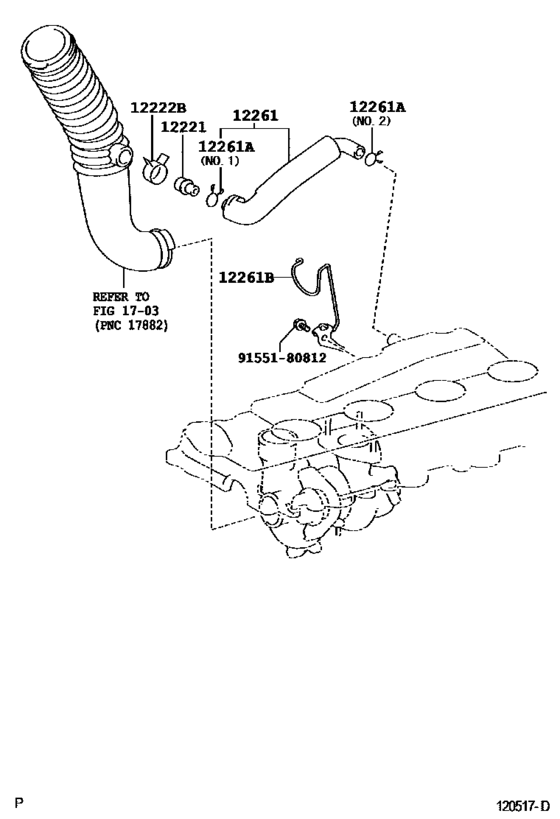

Ventilation Hose ([08.2006 - ] (0608- )) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 4DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- DCR
- Side Window
- SP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12221
|
12221
17878-30010 Pipe, Intake Air Connector, No.3[08.2006 -] 2KDFTV..KLH1#,2# |
17878-30010 |
US $4.89 |
||
|
12222B
|
12222B
90466-30001 Clip Or Clamp(For Ventilation Hose)[08.2006 -] 2KDFTV..KLH1#,2# |
90466-30001 |
from US $3.37 |
||
|
12261
|
12261
12261-30010
Hose, Ventilation
[08.2001 - 08.2006] 2KDFTV..KLH1#,2# |
12261-30010 |
— | ||
|
12261
|
12261
12261-30080
Hose, Ventilation
[08.2006 -] 2KDFTV..KLH1#,2# |
12261-30080 |
— | ||
|
12261A
|
12261A
90467-22010 Clip Or Clamp(For Ventilation Hose)[08.2006 -] 2KDFTV..KLH1#,2# NO.2 |
90467-22010 |
from US $1.42 |
||
|
12261A
|
12261A
90467-23002 Clip Or Clamp(For Ventilation Hose)[08.2006 -] 2KDFTV..KLH1#,2# NO.1 |
90467-23002 |
US $1.61 |
||
|
12261B
|
12261B
16581-30180 Clamp(For Ventilation Hose)[08.2006 -] 2KDFTV..KLH1#,2# |
16581-30180 |
US $4.95 |
||
|
9155180812
|
9155180812
91551-80812 BOLT FLANGE |
91551-80812 |
US $1.43 |
