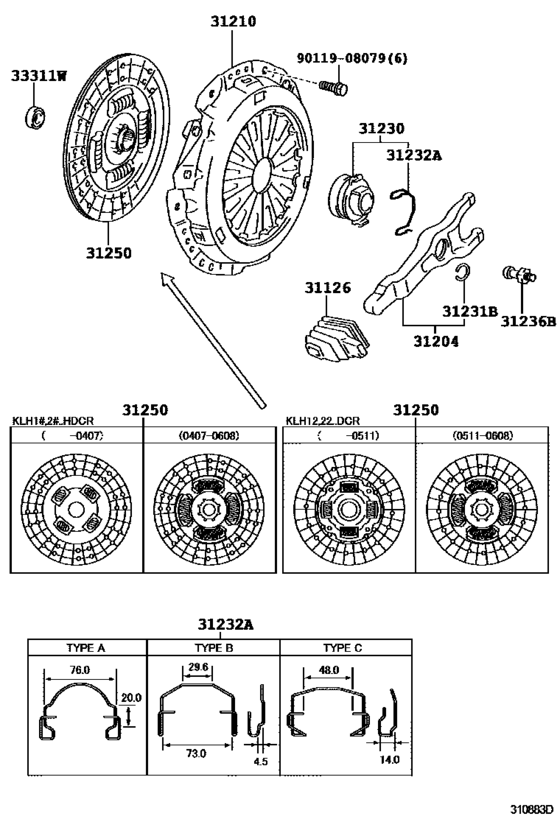

Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM) Diagram Toyota HIACE
- Year
- 2001 - 2011
- Sales region
- General
- Frame
- KLH12
- grade
- STD
- body
- 5DV
- ENGINE
- 2KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- HIACE/ HIACE S.B.V.
- From
- 08.2001
- To
- 11.2011
- Seating Capacity
- 03S
- Driver's Position
- RHD
- Fuel Induction
- HDCR
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-60081 Boot, Clutch Release Fork[08.2001 - 08.2006] KLH1#,2#..MTM |
31126-60081 |
from US $13.80 |
||
|
31204
|
31204
31204-60090 Fork Sub-Assy, Clutch Release[08.2001 - 08.2006] KLH1#,2#..MTM |
31204-60090 |
from US $76.94 |
||
|
31210
|
31210
31210-26090
Cover Assy, Clutch
[08.2001 - 07.2004] KLH1#,2#..MTM..HDCR |
31210-26090 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-26131 Cover Assy, Clutch[08.2001 - 07.2004] KLH1#,2#..MTM..HDCR |
31210-26131 |
from US $223.08 |
||
|
31210
|
31210
31210-26130 Cover Assy, Clutch[07.2004 - 02.2006] KLH1#,2#..MTM..HDCR |
31210-26130 |
US $266.45 |
||
| replacement | |||||
|
31210
|
31210
31210-26131 Cover Assy, Clutch[07.2004 - 02.2006] KLH1#,2#..MTM..HDCR |
31210-26131 |
from US $223.08 |
||
|
31210
|
31210
31210-26131 Cover Assy, Clutch[03.2006 - 08.2006] KLH1#,2#..MTM..HDCR |
31210-26131 |
from US $223.08 |
||
|
31210
|
31210
31210-35270 Cover Assy, ClutchCLUTCH [08.2006 - 11.2011] KLH1#,2# |
31210-35270 |
US $155.79 |
||
|
31230
|
31230
31230-60170 Bearing Assy, Clutch Release[08.2001 - 08.2006] KLH1#,2#..MTM..HDCR |
31230-60170 |
from US $31.58 |
||
|
31231B
|
31231B
90521-22003 Ring, Snap(For Clutch Release Hub)[08.2001 - 08.2006] KLH1#,2#..MTM |
90521-22003 |
US $1.79 |
||
|
31232A
|
31232A
31232-36030 Clip Or Spring, Release Bearing Hub[08.2001 - 08.2006] KLH1#,2#..MTM..HDCR TYPE A:REFER ILLUST. |
31232-36030 |
from US $1.44 |
||
|
31232A
|
31232A
31232-60030 Clip, Release Bearing Hub[08.2001 - 08.2006] KLH1#,2#..MTM..HDCR TYPE B:REFER ILLUST. |
31232-60030 |
US $3.58 |
||
|
31232A
|
31232A
31232-71010 Clip, Release Bearing HubRELEASE BEARING HUB [05.2009 - 11.2011] KLH1#,2# TYPE B:REFER ILLUST. |
31232-71010 |
from US $1.44 |
||
|
31236B
|
31236B
31236-60060 Support, Release Fork[08.2001 - 08.2006] KLH1#,2#..MTM |
31236-60060 |
from US $9.96 |
||
|
31250
|
31250
31250-25160
Disc Assy, Clutch
[08.2001 - 07.2004] KLH1#,2#..MTM..HDCR |
31250-25160 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-26260
Disc Assy, Clutch
[08.2001 - 07.2004] KLH1#,2#..MTM..HDCR |
31250-26260 |
— | ||
|
31250
|
31250
31250-26210
Disc Assy, Clutch
[07.2004 - 08.2006] KLH1#,2#..MTM..HDCR |
31250-26210 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-26260
Disc Assy, Clutch
[07.2004 - 08.2006] KLH1#,2#..MTM..HDCR |
31250-26260 |
— | ||
|
31250
|
31250
31250-26240 Disc Assy, ClutchCLUTCH [08.2006 - 07.2010] KLH1#,2# |
31250-26240 |
US $282.46 |
||
| replacement | |||||
|
31250
|
31250
31250-26241 Disc Assy, Clutch[08.2006 - 07.2010] KLH1#,2# |
31250-26241 |
from US $252.27 |
||
|
31250
|
31250
31250-26241 Disc Assy, Clutch[08.2010 - 11.2011] KLH1#,2# |
31250-26241 |
from US $252.27 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[07.1999 - 08.2006] KLH1#,2#..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[07.1999 - 08.2006] KLH1#,2#..MTM |
90363-12024 |
from US $5.67 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
