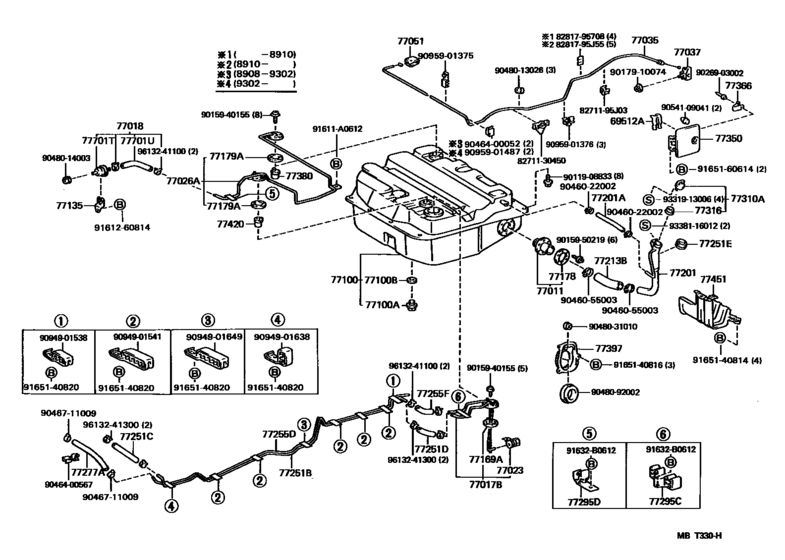

Fuel Tank & Tube ([08.1989 - ] (8908- )LH10#,11#) Diagram Toyota HIACE
- Year
- 1989 - 1993
- Sales region
- Europe
- Frame
- LH102
- grade
- DX
- body
- V
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1993
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69512A
|
69512A
69512-87001 Retainer, Front Door Lock Cylinder[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..DX,STD |
69512-87001 |
US $1.79 |
||
|
77011
|
77011
77011-26010 Pipe Sub-Assy, Fuel Tank Filler, Lower[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77011-26010 |
US $45.86 |
||
|
77017B
|
77017B
77017-26130
Tube Sub-Assy, Fuel Tank Vent
[08.1989 - 04.1995] LH10#,11#,RZH102,112 |
77017-26130 |
— | ||
| replacement | |||||
|
77017B
|
77017B
77017-26131 Tube Sub-Assy, Fuel Tank Vent[08.1989 - 04.1995] LH10#,11#,RZH102,112 |
77017-26131 |
US $65.35 |
||
|
77018
|
77018
77018-26160 Valve Sub-Assy, Fuel Vapour Separate[08.1989 - 08.1995] LH10#,11#,RZH102,112 |
77018-26160 |
US $28.25 |
||
|
77023
|
77023
77023-32010 Filter Sub-Assy, Fuel Suction Tube[08.1989 - 08.1995] LH10#,11#,RZH102,112 |
77023-32010 |
US $16.13 |
||
|
77026A
|
77026A
77026-26040 Tube Sub-Assy, Fuel Evaporation, No.1[08.1989 - 04.1995] LH10#,11#,RZH10#,11# |
77026-26040 |
US $67.12 |
||
| replacement | |||||
|
77026A
|
77026A
77026-26041 Tube Sub-Assy, Fuel Evaporation, No.1[08.1989 - 04.1995] LH10#,11#,RZH10#,11# |
77026-26041 |
US $83.64 |
||
|
77035
|
77035
77035-95J03 Cable Sub-Assy, Fuel Lid Lock ControlFUEL LID LOCK CONTROL [08.1989 - 05.1991] RZH102..4D..STD;LH102,RZH103,109..LHD..4D; RZH102..DX W(*FLO) |
77035-95J03 |
US $39.89 |
||
|
77037
|
77037
77037-32010 Lock Sub-Assy, Fuel Tank Cap[08.1989 - 05.1991] RZH102..DX; RZH102..STD;LH10#,11#,RZH103,109,11# |
77037-32010 |
US $18.20 |
||
|
77051
|
77051
77051-95J01-03
Lever Sub-Assy, Fuel Lid Open
[08.1989 - 05.1991] RZH102..DX GRAY,TRIM1#; RZH102..STD;LH10#,11#,RZH103,109,11# GRAY,TRIM1# |
77051-95J01-03 |
— | ||
| replacement | |||||
|
77051
|
77051
77051-95J01-C0 Lever Sub-Assy, Fuel Lid Open[08.1989 - 05.1991] RZH102..DX GRAY,TRIM1#; RZH102..STD;LH10#,11#,RZH103,109,11# GRAY,TRIM1# |
77051-95J01-C0 |
US $28.51 |
||
|
77100
|
77100
77001-26500 Tank Assy, Fuel[08.1989 - 08.1991] LH10#,11# |
77001-26500 |
US $679.95 |
||
| replacement | |||||
|
77100
|
77100
77001-26900 Tank Assy, Fuel (lpg)[08.1989 - 08.1991] LH10#,11# |
77001-26900 |
US $787.80 |
||
|
77100A
|
77100A
90105-12116 Plug(For Fuel Tank)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90105-12116 |
from US $1.31 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90430-12245 |
from US $0.88 |
||
|
77135
|
77135
77135-26010 Bracket, Check Valve[08.1989 - 08.1995] LH10#,11#,RZH102,112 |
77135-26010 |
US $4.08 |
||
|
77169A
|
77169A
77169-14020 Gasket, Fuel Tank Vent[08.1989 - 08.1995] LH10#,11#,RZH102,112 |
77169-14020 |
from US $3.28 |
||
|
77178
|
77178
77178-20010 Gasket, Fuel Tank Filler Pipe, Lower[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77178-20010 |
US $7.71 |
||
|
77179A
|
77179A
77179-26010
Gasket, Fuel Tank Evap/vent Tube
[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77179-26010 |
— | ||
| replacement | |||||
|
77179A
|
77179A
77179-26011 Gasket, Fuel Suction Tube Set, No.1[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77179-26011 |
US $3.40 |
||
|
77201
|
77201
77201-26140 Pipe Sub-Assy, Fuel Tank Inlet[08.1989 - 05.1992] LH10#,11#,RZH102,112 |
77201-26140 |
US $107.74 |
||
|
77201
|
77201
77201-26141 Pipe Sub-Assy, Fuel Tank Inlet[05.1992 - 09.1992] LH10#,11#,RZH102,112 |
77201-26141 |
US $126.67 |
||
| replacement | |||||
|
77201
|
77201
77201-26170 Pipe Sub-Assy, Fuel Tank Inlet[05.1992 - 09.1992] LH10#,11#,RZH102,112 |
77201-26170 |
US $122.30 |
||
|
77201
|
77201
77201-26170 Pipe Sub-Assy, Fuel Tank Inlet[09.1992 - 08.1995] LH10#,11#,RZH102,112 |
77201-26170 |
US $122.30 |
||
|
77201A
|
77201A
95311-13032 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# L=320 |
95311-13032 |
US $9.32 |
||
|
77213B
|
77213B
77213-26080 Hose, Fuel Tank To Filler Pipe[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77213-26080 |
US $58.80 |
||
|
77251B
|
77251B
77251-26510 Tube, Fuel Main[08.1989 - 08.1995] LH10# |
77251-26510 |
US $63.50 |
||
|
77251C
|
77251C
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1989 - 08.1993] LH10#,11# *H,L=300 |
95333-08030 |
US $11.83 |
||
|
77251D
|
77251D
95333-08020
Hose, Lpg Injector
[08.1989 - 08.1995] LH10#,11# L=200,ID=8 |
95333-08020 |
— | ||
| replacement | |||||
|
77251D
|
77251D
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1989 - 08.1995] LH10#,11# L=200,ID=8 |
95337-08020 |
from US $5.56 |
||
|
77251E
|
77251E
77251-10010 Shield, Fuel Tank, Inlet, No.1[08.1989 - 05.1992] LH10#,11#,RZH10#,11# |
77251-10010 |
US $16.97 |
||
|
77251E
|
77251E
90480-75002 Shield, Fuel Tank Inlet Pipe[05.1992 - 08.1995] LH10#,11#,RZH10#,11# |
90480-75002 |
US $5.53 |
||
|
77255D
|
77255D
77255-26320 Tube, Fuel Return[08.1989 - 08.1995] LH10# |
77255-26320 |
US $52.08 |
||
|
77255F
|
77255F
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1989 - 08.1995] LH10#,11# *H,L=200 |
95333-06020 |
— | ||
| replacement | |||||
|
77255F
|
77255F
95337-06020 Hose, Differential Pressure Control[08.1989 - 08.1995] LH10#,11# *H,L=200 |
95337-06020 |
from US $10.21 |
||
|
77277A
|
77277A
90447-12118 Hose, Fuel, No.1(For Return Tube, No.1)[08.1989 - 08.1995] LH10#,11# L=300 |
90447-12118 |
US $18.05 |
||
|
77310A
|
77310A
77310-32011 Cap Assy, Fuel Tank[05.1992 - 08.1995] LH10#,11# |
77310-32011 |
from US $22.89 |
||
|
77310A
|
77310A
77310-35061 Cap Assy, Fuel Tank[08.1989 - 05.1992] LH10#,11# |
77310-35061 |
from US $28.35 |
||
|
77316
|
77316
77316-12050 Gasket (For Fuel Tank Cap)[08.1989 - 05.1992] LH10#,11#,RZH10#,11# |
77316-12050 |
from US $4.17 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[05.1992 - 08.1995] LH10#,11#,RZH10#,11# |
77316-16010 |
from US $11.06 |
||
|
77350
|
77350
77350-26010 Lid Assy, Fuel Filler Opening[05.1992 - 08.1993] LH10#,11#,RZH10#,11# W(*FLO) |
77350-26010 |
US $54.69 |
||
|
77350
|
77350
77350-95J00 Lid Assy, Fuel Filler Opening[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..DX,STD |
77350-95J00 |
US $48.34 |
||
|
77350
|
77350
77350-95J01 Lid Assy, Fuel Filler Opening[08.1989 - 10.1990] RZH102..STD;LH10#,11#,RZH103,109,11# W(*FLO); RZH102..DX NORWAY SPEC OR W(*FLO) |
77350-95J01 |
US $60.72 |
||
|
77366
|
77366
77366-95J01 Spring, Fuel Filler Opening Lid Hinge[08.1989 - 05.1991] RZH102..DX; RZH102..STD;LH10#,11#,RZH103,109,11# |
77366-95J01 |
US $2.48 |
||
|
77380
|
77380
77380-26010 Valve Assy, Fuel Cut Off[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77380-26010 |
from US $10.22 |
||
|
77397
|
77397
77397-95J01 Plate, Fuel Inlet Pipe Seal[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77397-95J01 |
US $16.77 |
||
|
77420
|
77420
77420-26010 Valve Assy, Fuel Cut Off, No.2[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77420-26010 |
from US $11.21 |
||
|
77451
|
77451
77451-26010 Protector, Fuel Inlet Hose[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
77451-26010 |
US $61.68 |
||
|
77701T
|
77701T
90917-10069
Valve, Check (For Main Fuel Tank)
[08.1989 - 01.1991] LH10#,11#,RZH102,112 |
90917-10069 |
— | ||
| replacement | |||||
|
77701T
|
77701T
90917-10082 Hose, Fuel, No.1 (For Breather Valve)[08.1989 - 01.1991] LH10#,11#,RZH102,112 |
90917-10082 |
from US $17.31 |
||
|
77701T
|
77701T
90917-10082 Hose, Fuel, No.1 (For Breather Valve)[01.1991 - 08.1995] LH10#,11#,RZH102,112 |
90917-10082 |
from US $17.31 |
||
|
77701U
|
77701U
95333-06030
Hose, Fuel
[08.1989 - 08.1995] LH10#,11#,RZH102,112 *H,L=300 |
95333-06030 |
— | ||
| replacement | |||||
|
77701U
|
77701U
95338-06030 HOSE, FUEL[08.1989 - 08.1995] LH10#,11#,RZH102,112 *H,L=300 |
95338-06030 |
from US $10.39 |
||
|
91611A0612
|
91611A0612
91611-A0612 New Genuine Part |
91611-A0612 |
US $1.51 |
||
|
91632B0612
|
91632B0612
91632-B0612 New Genuine Part |
91632-B0612 |
US $1.16 |
||
| replacement | |||||
|
91632B0612
|
91632B0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
8271195J03
|
8271195J03
82711-95J03 Wire, Fuse To Fuse(for Combustion Heater) |
82711-95J03 |
US $6.99 |
||
|
8281795J55
|
8281795J55
82817-95J55 Support, Slide Roof Rain Channel Hose |
82817-95J55 |
US $1.75 |
||
|
8271130450
|
8271130450
82711-30450 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30450 |
US $2.77 |
||
|
8281795708
|
8281795708
82817-95708 Protector, Wiring Harness, No.15 |
82817-95708 |
US $3.35 |
||
|
9011908833
|
9011908833
90119-08833 New Genuine Part |
90119-08833 |
US $2.87 |
||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $2.15 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.59 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9017910074
|
9017910074
90179-10074 New Genuine Part |
90179-10074 |
US $1.97 |
||
|
9026903002
|
9026903002
90269-03002 RIVET |
90269-03002 |
from US $1.27 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.23 |
||
|
9046055003
|
9046055003
90460-55003 Clamp Or Clip(For Air Hose, No.1) |
90460-55003 |
from US $4.84 |
||
|
9046400052
|
9046400052
90464-00052 New Genuine Part |
90464-00052 |
US $3.58 |
||
|
9046400567
|
9046400567
90464-00567 CLAMP |
90464-00567 |
US $1.35 |
||
|
9046711009
|
9046711009
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-11009 |
— | ||
| replacement | |||||
|
9046711009
|
9046711009
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
|
9048013026
|
9048013026
90480-13026 New Genuine Part |
90480-13026 |
US $1.46 |
||
|
9048014003
|
9048014003
90480-14003 New Genuine Part |
90480-14003 |
US $1.22 |
||
|
9048031010
|
9048031010
90480-31010 New Genuine Part |
90480-31010 |
US $5.42 |
||
|
9048092002
|
9048092002
90480-92002 GROMMET |
90480-92002 |
from US $13.44 |
||
|
9054109041
|
9054109041
90541-09041 Cushion, Hood Bumper |
90541-09041 |
US $1.51 |
||
|
9094901538
|
9094901538
90949-01538 New Genuine Part |
90949-01538 |
US $6.45 |
||
|
9094901541
|
9094901541
90949-01541 New Genuine Part |
90949-01541 |
US $6.45 |
||
|
9094901638
|
9094901638
90949-01638 New Genuine Part |
90949-01638 |
US $3.99 |
||
|
9094901649
|
9094901649
90949-01649 New Genuine Part |
90949-01649 |
US $5.78 |
||
|
9095901375
|
9095901375
90959-01375 New Genuine Part |
90959-01375 |
US $1.89 |
||
|
9095901376
|
9095901376
90959-01376 New Genuine Part |
90959-01376 |
US $0.58 |
||
|
9095901487
|
9095901487
90959-01487 New Genuine Part |
90959-01487 |
US $3.06 |
||
|
9161260814
|
9161260814
91612-60814
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91612-60814 |
— | ||
| replacement | |||||
|
9161260814
|
9161260814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331913006
|
9331913006
93319-13006 New Genuine Part |
93319-13006 |
US $0.44 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613241300
|
9613241300
96132-41300
Clip, No.4(For Idle-Up Hose)
|
96132-41300 |
— | ||
| replacement | |||||
|
9613241300
|
9613241300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
