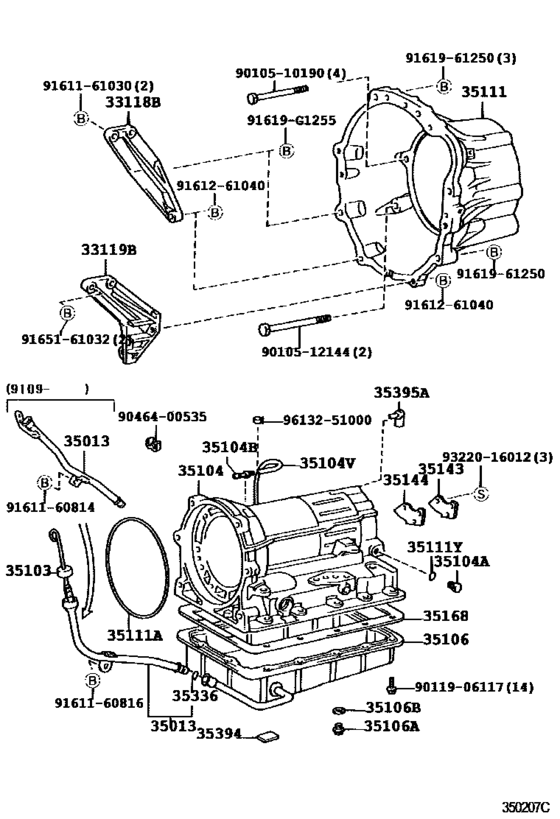

Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC) Diagram Toyota HIACE
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- LH107
- grade
- SCL
- body
- WG
- Roof
- MRF
- ENGINE
- 3L
- Model
- HIACE/REGIUSACE
- From
- 10.1990
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 4WD
- Seating Capacity
- 07S
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-25020 Plate, Stiffener, Rh(Mtm)[08.1989 - 07.1999] LH100,102,103,107,113,119,123,129,162,17#,18#..4FC..(DSL,TD) |
33118-25020 |
US $22.01 |
||
|
33119B
|
33119B
33119-26010
Plate, Stiffener, Lh(Mtm)
[08.1989 - 05.1998] LH107,119,129..4FC |
33119-26010 |
— | ||
| replacement | |||||
|
33119B
|
33119B
33119-25060 Plate, Stiffener, Lh(Mtm)[08.1989 - 05.1998] LH107,119,129..4FC |
33119-25060 |
US $49.80 |
||
|
35013
|
35013
35013-26060
Tube Sub-Assy, Transmission Oil Filler
[08.1989 - 09.1991] LH100,102,107,113,119,123..4FC..(DSL,TD) ｲﾗｽﾄ ｻﾝｼﾖｳ |
35013-26060 |
— | ||
|
35103
|
35103
35103-26090 Gage Sub-Assy, Transmission Oil Level[08.1989 - 08.1998] LH100,102,103,107,113,119,123,129..4FC..(DSL,TD) |
35103-26090 |
US $18.93 |
||
|
35104
|
35104
35104-26040 Case Sub-Assy, Automatic Transmission[08.1989 - 08.1993] LH107..4FC |
35104-26040 |
US $965.33 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.1989 - 07.1999] KZH100,110,120,132,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,11 2,124,125,133..4FC |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[08.1989 - 12.1990] LH100,102,107,113,119,120,123,RZH10#,112..4FC ミッション ケース側 |
90930-03098 |
from US $7.20 |
||
|
35104B
|
35104B
90930-03099 Plug, Breather, No.1 (Atm)[08.1989 - 07.1999] LH100..4FC..TD;KZH10#,11#,120,13#,LH102,103,107,113,119,123,129,162,17#,18#,RZH10# ,111,112,124,125,133..4FC ボデー側 |
90930-03099 |
US $7.86 |
||
|
35104V
|
35104V
90445-11084 Hose (For Breather Plug)[08.1989 - 04.1992] LH100,102,107,113,119,120,123,RZH10#,112..4FC |
90445-11084 |
US $10.19 |
||
| replacement | |||||
|
35104V
|
35104V
90445-11090 Hose (For Breather Plug)[08.1989 - 04.1992] LH100,102,107,113,119,120,123,RZH10#,112..4FC |
90445-11090 |
US $10.19 |
||
|
35104V
|
35104V
90445-11096 Hose (For Breather Plug)[04.1992 - 07.1999] LH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
90445-11096 |
US $6.29 |
||
|
35106
|
35106
35106-30051 Pan Sub-Assy, Automatic Transmission Oil[01.1990 - 11.1994] LH100,102,103,107,113,119,123,129,RZH10#,112..4FC..(CBR,DSL,EFI,TD) |
35106-30051 |
US $103.32 |
||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[08.1989 - 08.1998] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4 FC |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1989 - 08.1998] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4 FC |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.1989 - 07.1999] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,11 2,124,125,133..4FC |
35178-30010 |
US $3.40 |
||
|
35111
|
35111
35111-26020 Housing, Automatic Transmission[08.1989 - 08.1997] LH107,119,129..4FC |
35111-26020 |
US $816.82 |
||
| replacement | |||||
|
35111
|
35111
35111-26021 Housing, Automatic Transmission[08.1989 - 08.1997] LH107,119,129..4FC |
35111-26021 |
US $818.27 |
||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[08.1989 - 07.1999] LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CB R,DSL,EFI,TD) |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.1989 - 07.1999] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,11 2,124,125,133..4FC |
90301-06196 |
from US $2.24 |
||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[08.1989 - 07.1999] LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CB R,DSL,EFI,TD) |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-22010
Gasket, Transmission Case Rear Cover
[10.1989 - 12.1990] LH100,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD) |
35144-22010 |
— | ||
| replacement | |||||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[10.1989 - 12.1990] LH100,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD) |
35144-28010 |
US $2.62 |
||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[12.1990 - 07.1999] LH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[08.1989 - 07.1999] LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CB R,DSL,EFI,TD) |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1989 - 07.1999] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,11 2,124,125,133..4FC |
90301-09173 |
from US $2.03 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1989 - 07.1999] LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CB R,DSL,EFI,TD) |
35394-30011 |
from US $5.62 |
||
|
91619G1255
|
91619G1255
91619-G1255 New Genuine Part |
91619-G1255 |
US $2.48 |
||
|
9010510190
|
9010510190
90105-10190 New Genuine Part |
90105-10190 |
US $3.20 |
||
|
9010512144
|
9010512144
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011906117
|
9011906117
90119-06117
Bolt (For Automatic Transmission Oil Pan)
|
90119-06117 |
— | ||
| replacement | |||||
|
9011906117
|
9011906117
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90119-06173 |
from US $0.76 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $2.15 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161261040
|
9161261040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165161032
|
9165161032
91651-61032 BOLT |
91651-61032 |
US $2.06 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
