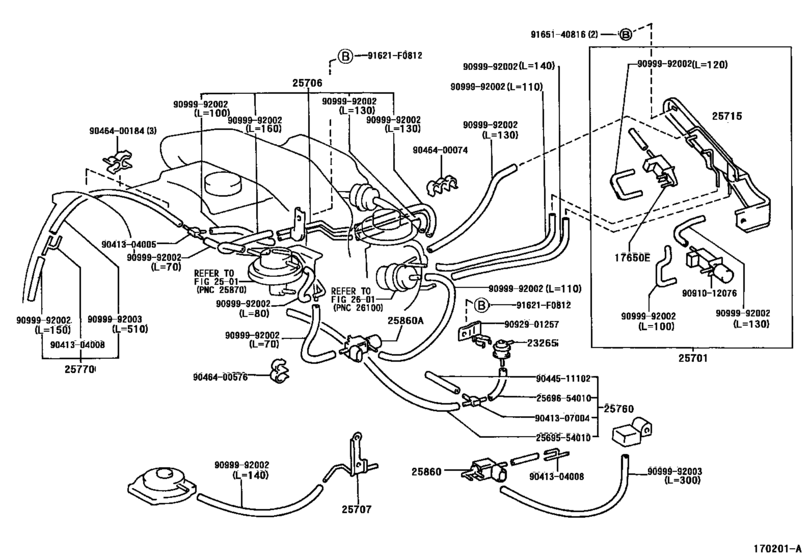

Vacuum Piping ([08.1989 - 08.1993] (8908-9308)3L..LH107,117) Diagram Toyota HIACE
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- LH107
- grade
- SCL
- body
- WG
- Roof
- MRF
- ENGINE
- 3L
- Model
- HIACE/REGIUSACE
- From
- 10.1990
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 4WD
- Seating Capacity
- 07S
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650E
|
17650E
90910-12059
Valve Assy, Vacuum Switching
[08.1989 - 08.1993] 3L..LH107,117 |
90910-12059 |
— | ||
|
23265
|
23265
90917-11033
Filter, Gas, No.1
[08.1989 - 08.1993] 2LT#,3L..LH100,107,117,120 |
90917-11033 |
— | ||
|
25701
|
25701
25701-54010 Valve Set, Emission Control[08.1989 - 08.1993] 3L..LH107,117 |
25701-54010 |
US $241.70 |
||
|
25706
|
25706
25706-54020 Pipe Sub-Assy, Vacuum Transmitting, No.1[08.1989 - 08.1993] 3L..LH107,117 |
25706-54020 |
US $59.26 |
||
|
25707
|
25707
25707-54010 Pipe Sub-Assy, Vacuum Transmitting, No.2[08.1989 - 08.1993] 3L..LH107,117 |
25707-54010 |
US $15.58 |
||
|
25715
|
25715
25715-54010 Bracket, Emission Control Valve[08.1989 - 08.1993] 3L..LH107,117 |
25715-54010 |
US $25.48 |
||
|
25760
|
25760
25760-54020 Hose Assy, Vacuum Transmitting[08.1989 - 08.1993] 3L..LH107,117 |
25760-54020 |
US $44.12 |
||
|
25770
|
25770
25770-54010 Hose Assy, Vacuum Transmitting, No.2[08.1989 - 08.1993] 3L..LH107,117 |
25770-54010 |
US $24.61 |
||
|
25860
|
25860
25860-54040 Valve Assy, Vacuum Switching, No.1[08.1989 - 08.1993] 3L..LH107,117 |
25860-54040 |
US $80.08 |
||
|
25860A
|
25860A
25860-54050
Valve, Vacuum Switching, No.1
[08.1989 - 08.1993] 3L..LH107,117 |
25860-54050 |
— | ||
|
91621F0812
|
91621F0812
91621-F0812
New Genuine Part
|
91621-F0812 |
— | ||
|
2569554010
|
2569554010
25695-54010 Hose(For Egr Vacuum Modulator) |
25695-54010 |
US $44.55 |
||
|
2569654010
|
2569654010
25696-54010 New Genuine Part |
25696-54010 |
US $5.24 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9041307004
|
9041307004
90413-07004 New Genuine Part |
90413-07004 |
US $5.39 |
||
|
9044511102
|
9044511102
90445-11102 New Genuine Part |
90445-11102 |
US $3.49 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400184
|
9046400184
90464-00184 Clamp, Vacuum Tube |
90464-00184 |
US $6.27 |
||
|
9046400576
|
9046400576
90464-00576 Clamp, No.1 (For Transfer Vacuum) |
90464-00576 |
US $1.14 |
||
|
9091012076
|
9091012076
90910-12076
Valve, Vacuum Switching
|
90910-12076 |
— | ||
|
9092901257
|
9092901257
90929-01257 New Genuine Part |
90929-01257 |
US $3.64 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
