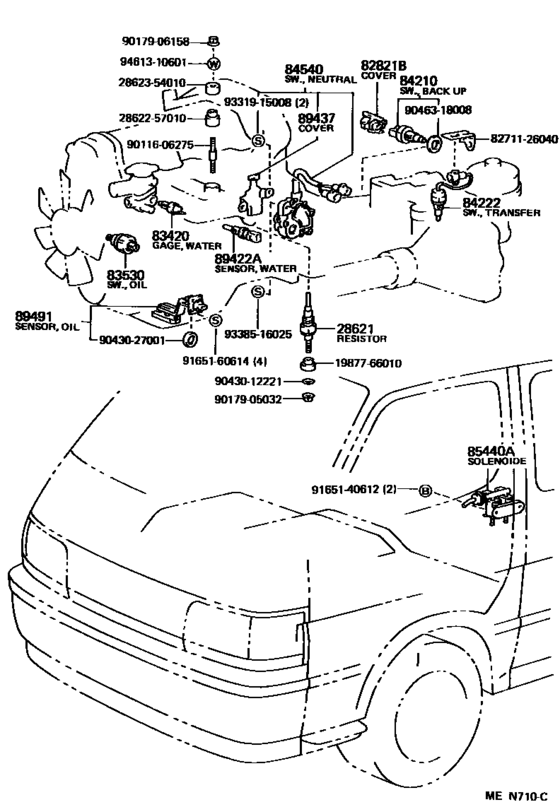

Switch & Relay & Computer ([08.1989 - ] (8908- )LH10#,11#) Diagram Toyota HIACE
- Year
- 1993 - 1995
- Sales region
- Europe
- Frame
- LH112
- grade
- STD
- body
- V
- ENGINE
- 2L
- DESTINATION
- FRG
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1993
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28621
|
28621
28621-54080
Resistor, Glow Plug
[08.1989 - 08.1995] 2L..LH10#,11# |
28621-54080 |
— | ||
|
82821B
|
82821B
82821-12251
Cover, Connector
[03.1992 - 12.1994] LH10#,11#,RZH10#,11#..5F |
82821-12251 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1993 - 08.1995] LH10#,11#,RZH10#,11# NIPPONDENSO |
83420-16040 |
from US $28.76 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[08.1993 - 05.1994] LH10#,11#,RZH10#,11# YAZAKI |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1993 - 05.1994] LH10#,11#,RZH10#,11# YAZAKI |
83420-16040 |
from US $28.76 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[08.1989 - 08.1995] LH10#,11# |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[08.1989 - 08.1995] LH10#,11# |
83530-60030 |
from US $23.52 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.1989 - 08.1995] LH10#,11#,RZH10#,11#..5F |
84210-52050 |
from US $22.85 |
||
|
89422A
|
89422A
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1989 - 08.1995] LH10#,11# |
89422-20010 |
from US $40.66 |
||
|
89491
|
89491
89491-26110 Sensor, Engine Oil Level[08.1991 - 08.1995] LH102,112 |
89491-26110 |
US $304.30 |
||
| replacement | |||||
|
89491
|
89491
S8346-01580 Sensor, Engine Oil Level[08.1991 - 08.1995] LH102,112 |
S8346-01580 |
US $227.20 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
8271126040
|
8271126040
82711-26040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-26040 |
US $6.41 |
||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.05 |
||
|
9046318008
|
9046318008
90463-18008
New Genuine Part
|
90463-18008 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
