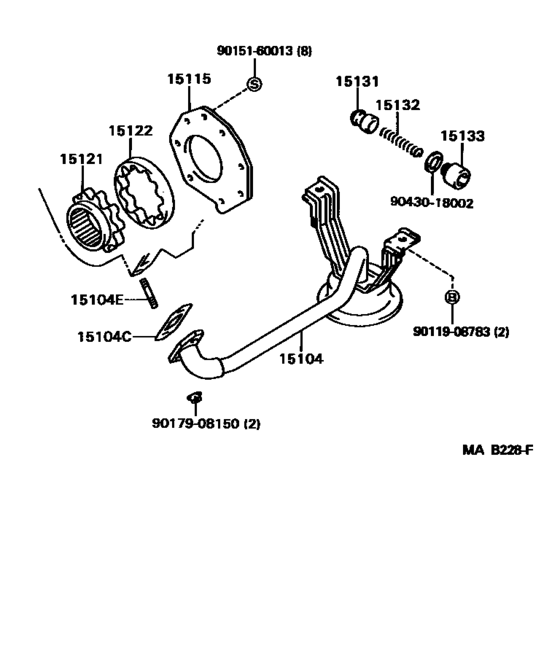

Engine Oil Pump ([08.1989 - ] (8908- )2L) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- LH112
- grade
- STD
- body
- V
- ENGINE
- 2L
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-54180 Strainer Sub-Assy, Oil[08.1989 - 05.1991] 2L..LH102,112 |
15104-54180 |
US $144.14 |
||
| replacement | |||||
|
15104
|
15104
15104-54220 Strainer Sub-Assy, Oil[08.1989 - 05.1991] 2L..LH102,112 |
15104-54220 |
US $139.78 |
||
|
15104
|
15104
15104-54181 Strainer Sub-Assy, Oil[05.1991 - 08.1995] 2L..LH102,112 |
15104-54181 |
US $138.32 |
||
| replacement | |||||
|
15104
|
15104
15104-54220 Strainer Sub-Assy, Oil[05.1991 - 08.1995] 2L..LH102,112 |
15104-54220 |
US $139.78 |
||
|
15104C
|
15104C
15149-54012
Gasket(For Oil Strainer)
[08.1989 - 08.1995] 2L..LH10#,11# |
15149-54012 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-54030 Gasket(For Oil Strainer)[08.1989 - 08.1995] 2L..LH10#,11# |
15149-54030 |
from US $2.09 |
||
|
15104E
|
15104E
92122-40816 Bolt, Stud(For Oil Strainer)[08.1989 - 08.1995] 2L..LH10#,11# |
92122-40816 |
US $1.40 |
||
|
15115
|
15115
15115-54020
Cover, Oil Pump
[08.1989 - 12.1989] 2L..LH10#,11# |
15115-54020 |
— | ||
| replacement | |||||
|
15115
|
15115
15115-54021
Cover, Oil Pump
[08.1989 - 12.1989] 2L..LH10#,11# |
15115-54021 |
— | ||
|
15115
|
15115
15115-54021
Cover, Oil Pump
[12.1989 - 05.1995] 2L..LH10#,11# |
15115-54021 |
— | ||
|
15115
|
15115
15115-54022 Cover, Oil Pump[05.1995 - 08.1995] 2L..LH10#,11# |
15115-54022 |
from US $11.15 |
||
|
15121
|
15121
15121-54020 Gear, Oil Pump Drive[08.1989 - 08.1995] 2L..LH10#,11# |
15121-54020 |
from US $22.11 |
||
|
15122
|
15122
15122-54020 Gear, Oil Pump Driven[08.1989 - 08.1995] 2L..LH10#,11# |
15122-54020 |
from US $21.27 |
||
|
15131
|
15131
15131-54010 Valve, Oil Pump Relief[08.1989 - 08.1995] 2L..LH10#,11# |
15131-54010 |
from US $5.07 |
||
|
15132
|
15132
15132-54010 Spring, Oil Pump Relief Valve[08.1989 - 08.1995] 2L..LH10#,11# |
15132-54010 |
from US $1.44 |
||
|
15133
|
15133
15133-54010 Plug, Oil Pump Relief Valve[08.1989 - 08.1995] 2L..LH10#,11# |
15133-54010 |
US $4.37 |
||
|
9011908783
|
9011908783
90119-08783 BOLT WWASHER |
90119-08783 |
from US $1.08 |
||
|
9015160013
|
9015160013
90151-60013 BOLT |
90151-60013 |
from US $0.70 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9043018002
|
9043018002
90430-18002 Gasket |
90430-18002 |
US $1.97 |
||
