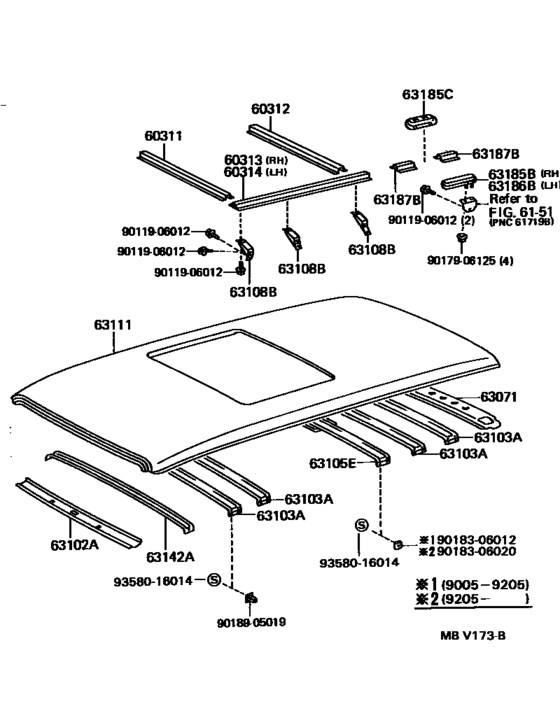

Roof Panel & Back Panel ([05.1990 - ] ｷﾔﾝﾋﾟﾝｸﾞｶ- OR ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ (9005- )LH113..V1..DX ; (9103- )LH119..05S ; (9508- )KZH11#..4FC) Diagram Toyota HIACE
- Year
- 1989 - 1998
- Sales region
- Japan
- Frame
- LH113
- grade
- DX
- body
- V1
- Roof
- HRF
- ENGINE
- 3L
- Model
- HIACE/REGIUSACE
- From
- 08.1989
- To
- 08.1998
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 06S
- Loading Capacity
- 1000K
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63071
|
63071
63071-95J05 Frame Sub-Assy, Back Door Opening, Upper[08.1989 - 05.1992] LH113,123,125,129,RZH112,12#..HRF |
63071-95J05 |
US $131.04 |
||
|
63102A
|
63102A
63102-95J06
Panel Sub-Assy, Windshield Header
[08.1989 - 08.1996] KZH100,11#,LH100,102,103,109,11#,123,129,140,RZH100,102,11#,122..CD,DX,GL,SW |
63102-95J06 |
— | ||
|
63103A
|
63103A
63103-95J12 Reinforcement Sub-Assy, Roof Panel[08.1993 - 07.1999] LH113,123,129,172,18#,RZH112..HRF..DX |
63103-95J12 |
US $186.37 |
||
|
63103A
|
63103A
63103-95J13 Reinforcement Sub-Assy, Roof Panel[08.1989 - 08.1993] LH113,123,129,RZH112,122..HRF |
63103-95J13 |
US $187.82 |
||
| replacement | |||||
|
63103A
|
63103A
63103-95J12 Reinforcement Sub-Assy, Roof Panel[08.1989 - 08.1993] LH113,123,129,RZH112,122..HRF |
63103-95J12 |
US $186.37 |
||
|
63105E
|
63105E
63105-95J10 Reinforcement Sub-Assy, Roof Panel, No.3[08.1989 - 08.1993] LH113,123,129,RZH112,122..HRF |
63105-95J10 |
US $142.69 |
||
|
63111
|
63111
63111-95J19 Panel, Roof[08.1989 - 07.1999] LH113,172,RZH112..HRF |
63111-95J19 |
US $1,958.40 |
||
|
9011906012
|
9011906012
90119-06012 New Genuine Part |
90119-06012 |
US $2.18 |
||
|
9017906125
|
9017906125
90179-06125 Nut (For Rear Wiper Arm Setting) |
90179-06125 |
US $1.92 |
||
|
9018306012
|
9018306012
90183-06012 New Genuine Part |
90183-06012 |
US $1.75 |
||
|
9018306020
|
9018306020
90183-06020 New Genuine Part |
90183-06020 |
US $1.75 |
||
|
9018905019
|
9018905019
90189-05019 New Genuine Part |
90189-05019 |
US $1.76 |
||
|
9358016014
|
9358016014
93580-16014 New Genuine Part |
93580-16014 |
US $2.18 |
||
