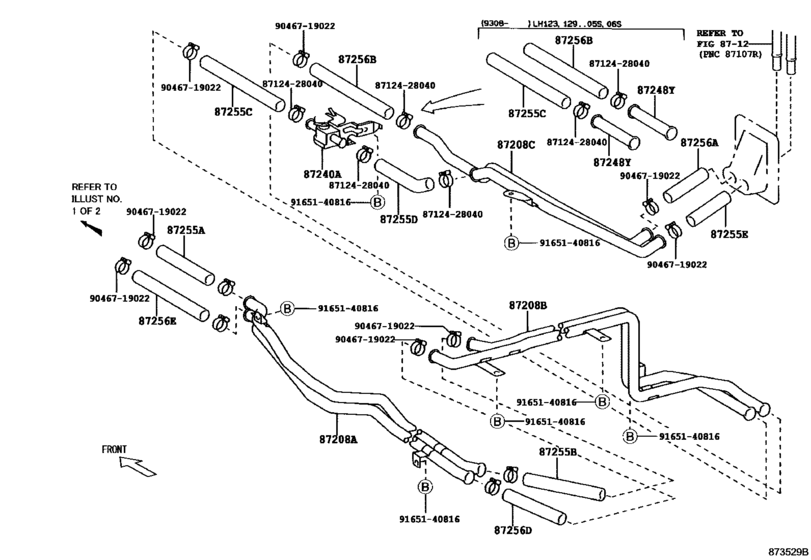

Heating & Air Conditioning - Water Piping ([08.1989 - 08.1998] ﾘﾔ-ﾄﾘﾑ(1) (8908-9808)LH10#,11#,12#,140) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGE
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87208A
|
87208A
87208-95J59
Pipe Sub-Assy, Heater Water, A
[05.1992 - 08.1998] LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S |
87208-95J59 |
— | ||
|
87208B
|
87208B
87208-94350
Pipe Sub-Assy, Heater Water, B
[05.1992 - 08.1993] LH120 |
87208-94350 |
— | ||
|
87208C
|
87208C
C8709-95B01 Pipe Sub-Assy, Heater Water, C[05.1992 - 08.1993] LH120,RZH12# ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
C8709-95B01 |
US $68.87 |
||
|
87240A
|
87240A
87240-94351 Valve Assy, Rear Heater Water[05.1992 - 08.1993] LH120 |
87240-94351 |
US $43.53 |
||
|
87255A
|
87255A
99556-20200 Hose, Water(For Lpg Regulator Outlet)[05.1992 - 08.1993] LH10#,11#,12#,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ＊Ｈ，Ｌ＝１４０ |
99556-20200 |
from US $6.32 |
||
|
87255B
|
87255B
99556-20200 Hose, Water(For Lpg Regulator Outlet)[05.1992 - 08.1993] LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S ＊Ｈ，Ｌ＝１３０ |
99556-20200 |
from US $6.32 |
||
|
87255C
|
87255C
C8725-95B02 Hose, Rear Heater Water Inlet, C[05.1992 - 08.1993] LH120,RZH12#; LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
C8725-95B02 |
US $5.24 |
||
| replacement | |||||
|
87255C
|
87255C
87245-89209 Hose, Rear Heater Water Inlet, A(From Engine)REAR HEATER WATER INLET, A(FROM ENGINE) [05.1992 - 08.1993] LH120,RZH12#; LH119..05S;LH113..V1..SRF..4D..06S..DX ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
87245-89209 |
US $12.67 |
||
|
87255D
|
87255D
99556-20100
Hose, Rear Heater Water Inlet, A(From Engine)
[05.1992 - 08.1993] LH120,RZH12# ＊Ｈ，Ｌ＝９０ |
99556-20100 |
— | ||
| replacement | |||||
|
87255D
|
87255D
99556-20200 Hose, Water(For Lpg Regulator Outlet)[05.1992 - 08.1993] LH120,RZH12# ＊Ｈ，Ｌ＝９０ |
99556-20200 |
from US $6.32 |
||
|
87255E
|
87255E
C8725-95B03 Hose, Rear Heater Water Inlet, E(To Heater Unit)[05.1992 - 08.1993] LH120..GCGE ｸﾞﾗﾝﾄﾞｷﾔﾋﾞﾝ |
C8725-95B03 |
US $10.19 |
||
|
87256A
|
87256A
C8725-95B03 Hose, Rear Heater Water Inlet, E(To Heater Unit)[05.1992 - 08.1993] LH120..GCGE ｸﾞﾗﾝﾄﾞｷﾔﾋﾞﾝ |
C8725-95B03 |
US $10.19 |
||
|
87256B
|
87256B
99556-20165 Hose, Rear Heater Water Inlet, B[05.1992 - 08.1993] LH120 ＊Ｈ，Ｌ＝１６５ |
99556-20165 |
US $3.93 |
||
| replacement | |||||
|
87256B
|
87256B
99556-20200 Hose, Water(For Lpg Regulator Outlet)[05.1992 - 08.1993] LH120 ＊Ｈ，Ｌ＝１６５ |
99556-20200 |
from US $6.32 |
||
|
87256D
|
87256D
99556-20170 Hose, Rear Heater Water Outlet, D[05.1992 - 08.1993] LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S ＊Ｈ，Ｌ＝１７０ |
99556-20170 |
US $3.93 |
||
| replacement | |||||
|
87256D
|
87256D
99556-20200 Hose, Water(For Lpg Regulator Outlet)[05.1992 - 08.1993] LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S ＊Ｈ，Ｌ＝１７０ |
99556-20200 |
from US $6.32 |
||
|
87256E
|
87256E
99556-20200 Hose, Water(For Lpg Regulator Outlet)[05.1992 - 08.1993] LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S ＊Ｈ，Ｌ＝１８０ |
99556-20200 |
from US $6.32 |
||
|
8712428040
|
8712428040
87124-28040
Clamp, Heater
|
87124-28040 |
— | ||
|
9046719022
|
9046719022
90467-19022 Clip(For Ventilation Hose No.2) |
90467-19022 |
from US $2.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
