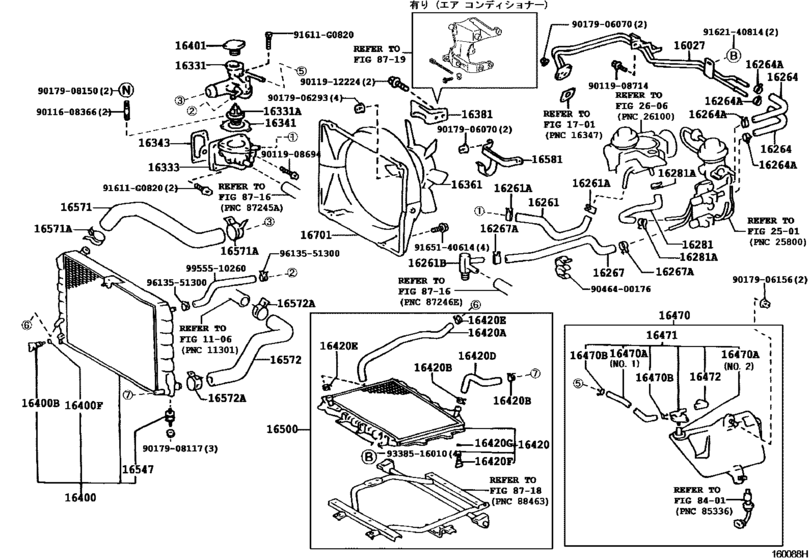

Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGE
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16027
|
16027
16027-54042 Pipe Sub-Assy, Turbo Water, No.1[01.1992 - 08.1993] 2LTE..LH100,120 |
16027-54042 |
US $106.29 |
||
|
16261
|
16261
16261-54110 Hose, Water By-Pass[10.1990 - 08.1993] 2LTE..LH100,120 |
16261-54110 |
US $13.26 |
||
|
16261A
|
16261A
90467-15022 Clip Or Clamp(For Ventilation Hose)[09.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
90467-15022 |
from US $1.07 |
||
|
16261B
|
16261B
90404-54040
Union(For Water By-Pass Hose)
[08.1991 - 01.1995] 2L#,3L..LH10#,11#,12#,140 |
90404-54040 |
— | ||
| replacement | |||||
|
16261B
|
16261B
90404-54037 Union(For Water By-Pass Hose)[08.1991 - 01.1995] 2L#,3L..LH10#,11#,12#,140 |
90404-54037 |
from US $9.68 |
||
|
16264
|
16264
16264-54090 Hose, Water By-Pass, No.2[10.1990 - 08.1993] 2LTE..LH100,120 |
16264-54090 |
US $7.43 |
||
|
16264A
|
16264A
90467-15022 Clip Or Clamp(For Ventilation Hose)[10.1990 - 08.1993] 2LTE..LH100,120 |
90467-15022 |
from US $1.07 |
||
|
16267
|
16267
16267-54070 Hose, Water By-Pass, No.3[10.1990 - 08.1993] 2LTE..LH100,120 |
16267-54070 |
US $21.69 |
||
|
16267A
|
16267A
90467-15022 Clip Or Clamp(For Ventilation Hose)[10.1990 - 08.1993] 2LTE..LH100,120 |
90467-15022 |
from US $1.07 |
||
|
16281
|
16281
16281-54020 Hose, Water By-Pass, No.4[10.1990 - 08.1993] 2LTE..LH100,120 |
16281-54020 |
US $8.59 |
||
|
16281A
|
16281A
90467-15022 Clip Or Clamp(For Ventilation Hose)[10.1990 - 08.1993] 2LTE..LH100,120 |
90467-15022 |
from US $1.07 |
||
|
16331
|
16331
16331-54121
Outlet, Water
[08.1991 - 08.1993] 2LTE..LH100,120 |
16331-54121 |
— | ||
|
16331A
|
16331A
90916-03099 Thermostat[08.1989 - 04.1995] 2L,2LT#,3L..LH10#,11#,12#,140 ＊ＷＡＸ ８８−１００ |
90916-03099 |
from US $20.22 |
||
|
16333
|
16333
16333-54162 Housing, Water Outlet[08.1991 - 08.1993] 2LTE..LH100,120..4FC |
16333-54162 |
US $107.74 |
||
|
16341
|
16341
16341-54040 Gasket, Water Outlet[10.1991 - 05.1995] 2L#,3L..LH10#,11#,12#,140 |
16341-54040 |
from US $3.47 |
||
|
16343
|
16343
16343-54040 Gasket, Water Outlet Housing[10.1991 - 07.1999] 2L#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
16343-54040 |
from US $2.26 |
||
|
16361
|
16361
16361-54050 Fan[08.1989 - 08.1993] 2L,2LT#,3L..LH100,107,110,117,120,140 |
16361-54050 |
US $106.29 |
||
| replacement | |||||
|
16361
|
16361
16361-67030 Fan[08.1989 - 08.1993] 2L,2LT#,3L..LH100,107,110,117,120,140 |
16361-67030 |
US $63.76 |
||
|
16381
|
16381
16381-54070 Bar, Fan Belt Adjusting[08.1989 - 09.1998] 2L,2LT#,3L,5L..LH100,102,103,110,113,115,120,123,125,140,162,172,182,184 |
16381-54070 |
US $40.91 |
||
| replacement | |||||
|
16381
|
16381
16381-54071 Bar, Fan Belt Adjusting[08.1989 - 09.1998] 2L,2LT#,3L,5L..LH100,102,103,110,113,115,120,123,125,140,162,172,182,184 |
16381-54071 |
US $41.06 |
||
|
16400
|
16400
16400-54780 Radiator Assy[08.1989 - 07.1993] 2LT#..LH100,120..4FC |
16400-54780 |
US $627.54 |
||
| replacement | |||||
|
16400
|
16400
16400-54783 Radiator Assy[08.1989 - 07.1993] 2LT#..LH100,120..4FC |
16400-54783 |
US $1,278.37 |
||
|
16400
|
16400
16400-54782 Radiator Assy[07.1993 - 08.1993] 2LTE..LH100,120..4FC |
16400-54782 |
US $1,276.91 |
||
| replacement | |||||
|
16400
|
16400
16400-54783 Radiator Assy[07.1993 - 08.1993] 2LTE..LH100,120..4FC |
16400-54783 |
US $1,278.37 |
||
|
16400B
|
16400B
16417-75010 Plug, Radiator Drain Cock[08.1989 - 08.1998] 1RZ#,2RZE..RZH10#,11#,12#,133; 2L,2LT#,3L..LH10#,11#,12#,140 |
16417-75010 |
US $6.45 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[08.1989 - 10.1996] 1RZ#,2RZE..RZH10#,11#,12#,133; 2L,2LT#,3L..LH10#,11#,12#,140 |
16418-24200 |
from US $1.27 |
||
|
16401
|
16401
16401-71010
Cap Sub-Assy(For Water Outlet)
[08.1989 - 06.1996] 2L,2LT#,3L..LH10#,11#,12#,140 |
16401-71010 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-54750 Radiator Cap[08.1989 - 06.1996] 2L,2LT#,3L..LH10#,11#,12#,140 |
16401-54750 |
from US $16.13 |
||
|
16420
|
16420
16510-54020 Radiator Assy, Sub[08.1989 - 08.1993] 2LT#..LH100,120..4FC |
16510-54020 |
US $623.17 |
||
|
16420A
|
16420A
16551-54020
Hose, Sub Radiator, Inlet
[08.1989 - 08.1993] 2LT#..LH100,120..4FC |
16551-54020 |
— | ||
|
16420B
|
16420B
96112-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.1989 - 08.1993] 2LT#..LH100,120..4FC |
96112-10330 |
US $3.05 |
||
|
16420D
|
16420D
16552-54020
Hose, Sub Radiator, No.2
[08.1989 - 08.1993] 2LT#..LH100,120..4FC |
16552-54020 |
— | ||
|
16420E
|
16420E
96112-10330 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.1989 - 08.1993] 2LT#..LH100,120..4FC |
96112-10330 |
US $3.05 |
||
|
16420F
|
16420F
90910-09054
Plug, Radiator Drain Cock
[08.1989 - 02.1993] 2LT#..LH100,120..4FC |
90910-09054 |
— | ||
| replacement | |||||
|
16420F
|
16420F
90910090541
Drain Plug
[08.1989 - 02.1993] 2LT#..LH100,120..4FC |
90910090541 |
— | ||
|
16420G
|
16420G
96711-19007 Packing(For Radiator Drain Cock)[08.1989 - 02.1993] 2LT#..LH100,120..4FC |
96711-19007 |
from US $2.22 |
||
|
16470
|
16470
16470-54213
Tank Assy, Radiator Reserve
[05.1992 - 06.1993] 2L#,3L..LH10#,11#,12#,140 |
16470-54213 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-54214
Tank Assy, Radiator Reserve
[05.1992 - 06.1993] 2L#,3L..LH10#,11#,12#,140 |
16470-54214 |
— | ||
|
16470
|
16470
16470-54214
Tank Assy, Radiator Reserve
[06.1993 - 08.1997] 2L#,3L..LH10#,11#,12#,140 |
16470-54214 |
— | ||
|
16470A
|
16470A
85338-54190
Hose Or Pipe(For Radiator Reserve Tank)
[08.1989 - 08.1997] 2L,2LT#,3L..LH10#,11#,12#,140 ＮＯ．１ |
85338-54190 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1989 - 02.1993] 2L,2LT#,3L..LH10#,11#,12#,140 ＊Ｈ，Ｌ＝１５５,ＮＯ．２ |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1989 - 08.1997] 2L,2LT#,3L..LH10#,11#,12#,140 |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16405-54202 Cap Sub-Assy, Reserve Tank[04.1992 - 08.1997] 2L#,3L..LH10#,11#,12#,140 |
16405-54202 |
US $11.53 |
||
|
16472
|
16472
85338-54191
Hose, Breather
[10.1990 - 08.1997] 2L#,3L..LH10#,11#,12#,140 |
85338-54191 |
— | ||
|
16547
|
16547
16547-67040 Bush, Radiator Support, No.1[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
16547-67040 |
from US $5.71 |
||
|
16571
|
16571
16571-54320 Hose, Radiator, Inlet[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH100,102,103,110,113,115,120,123,125,140,162,172,182,184 |
16571-54320 |
from US $26.19 |
||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#; 1RZ#,2RZE..RZH10#,11#,12#,133 |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#; 1RZ#,2RZE..RZH10#,11#,12#,133 |
90467-37003 |
from US $4.56 |
||
|
16572
|
16572
16572-54320 Hose, Radiator, Outlet[08.1989 - 08.1998] 2L,2LT#,3L..LH100,102,103,110,113,115,120,123,125,140 |
16572-54320 |
from US $23.42 |
||
|
16572A
|
16572A
90467-37001
Clip(For Water Inlet Hose)
[08.1989 - 02.1993] 3L..LH107,109,117,119,129 ラジェータ側; 2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140 ラジェータ側 |
90467-37001 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1989 - 02.1993] 3L..LH107,109,117,119,129 ラジェータ側; 2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140 ラジェータ側 |
90467-37003 |
from US $4.56 |
||
|
16572A
|
16572A
96111-10480 Clamp Or Clip, Hose(For Radiator Outlet No.1)[02.1990 - 08.1996] 2L,2LT#,3L..LH10#,11#,12#,140 エンジン側 |
96111-10480 |
US $2.15 |
||
|
16581
|
16581
16581-54010 Clamp, Hose(For Water Hose)[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
16581-54010 |
US $21.55 |
||
| replacement | |||||
|
16581
|
16581
16581-54100 Clamp, Hose(For Water Hose)HOSE(FOR RADIATOR HOSE) [08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
16581-54100 |
US $13.45 |
||
|
16701
|
16701
16701-54220
Shroud Sub-Assy, Fan
[08.1989 - 08.1998] 2L,2LT#,3L..LH100,102,103,110,113,115,120,123,125,140 |
16701-54220 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9011608366
|
9011608366
90116-08366 Stud |
90116-08366 |
US $0.79 |
||
|
9011908694
|
9011908694
90119-08694 BOLT |
90119-08694 |
US $3.32 |
||
|
9011908714
|
9011908714
90119-08714
New Genuine Part
|
90119-08714 |
— | ||
| replacement | |||||
|
9011908714
|
9011908714
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9011912224
|
9011912224
90119-12224 BOLT WWASHER |
90119-12224 |
from US $1.40 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
|
9017908117
|
9017908117
90179-08117
New Genuine Part
|
90179-08117 |
— | ||
| replacement | |||||
|
9017908117
|
9017908117
90179-08230 New Genuine Part |
90179-08230 |
US $2.33 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9046400176
|
9046400176
90464-00176 Clamp(For Clutch Booster Vacuum) |
90464-00176 |
US $0.96 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9338516010
|
9338516010
93385-16010 New Genuine Part |
93385-16010 |
US $1.97 |
||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9955510260
|
9955510260
99555-10260
Hose, Intake Manifold Water, No.1
|
99555-10260 |
— | ||
| replacement | |||||
|
9955510260
|
9955510260
99555-10500 Hose, Water, No.1 |
99555-10500 |
from US $19.32 |
||
