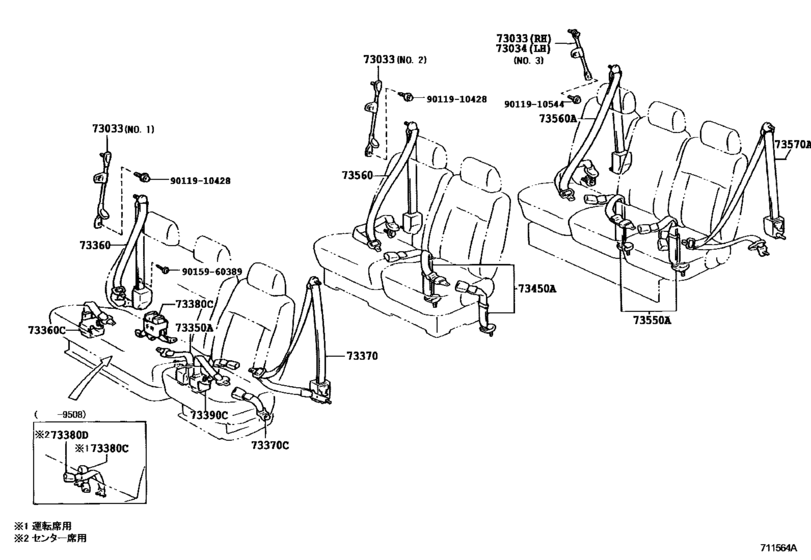

Seat Belt ([05.1992 - ] (9205- )GCGE) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGE
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73033
|
73033
73033-26030
Plate Sub-Assy, Rear Shoulder Belt Anchor, Rh
[05.1992 - 07.1999] KZH12#,LH120..GCGE,GCGN ＮＯ．３ シート |
73033-26030 |
— | ||
|
73033
|
73033
73033-26050 Plate Sub-Assy, Rear Shoulder Belt Anchor, Rh[05.1992 - 07.1999] KZH12#,LH120 ＮＯ．１，２ シート |
73033-26050 |
US $62.75 |
||
|
73034
|
73034
73034-26030 Plate Sub-Assy, Rear Shoulder Belt Anchor, Lh[05.1992 - 07.1999] KZH12#,LH120..GCGE,GCGN |
73034-26030 |
US $49.07 |
||
|
73350A
|
73350A
73350-26020-D0 Belt Assy, Rear No.1 Seat Lap Type, Center[05.1992 - 08.1993] LH100,107,RZH100,101..08S NEW MAROON,TRIM3#; LH120..GCGE NEW MAROON,TRIM3# |
73350-26020-D0 |
US $292.66 |
||
| replacement | |||||
|
73350A
|
73350A
73350-26020-B1 Belt Assy, Rear No.1 Seat Lap Type, Center[05.1992 - 08.1993] LH100,107,RZH100,101..08S NEW MAROON,TRIM3#; LH120..GCGE NEW MAROON,TRIM3# |
73350-26020-B1 |
US $292.66 |
||
|
73360
|
73360
73360-26100-D0 Belt Assy, Rear Seat 3 Point Type, Outer Rh[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3# |
73360-26100-D0 |
US $320.32 |
||
|
73360C
|
73360C
73360-26070-D0 Belt Assy, Rear No.1 Seat, Outer Rh[05.1992 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
73360-26070-D0 |
US $292.66 |
||
| replacement | |||||
|
73360C
|
73360C
73360-26070-B1 Belt Assy, Rear No.1 Seat, Outer Rh[05.1992 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
73360-26070-B1 |
US $292.66 |
||
|
73370
|
73370
73370-26060-D0 Belt Assy, Rear Seat 3 Point Type, Outer Lh[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
73370-26060-D0 |
US $320.32 |
||
| replacement | |||||
|
73370
|
73370
73370-26060-B1 Belt Assy, Rear Seat 3 Point Type, Outer Lh[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
73370-26060-B1 |
US $320.32 |
||
|
73370C
|
73370C
73370-26050-D0 Belt Assy, Rear No.1 Seat, Outer Lh[05.1992 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
73370-26050-D0 |
US $51.11 |
||
| replacement | |||||
|
73370C
|
73370C
73370-26050-B0 Belt Assy, Rear No.1 Seat, Outer Lh[05.1992 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
73370-26050-B0 |
US $51.11 |
||
|
73380C
|
73380C
73380-26030-D0 Belt Assy, Rear No.1 Seat, Inner Rh[05.1992 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
73380-26030-D0 |
US $51.11 |
||
| replacement | |||||
|
73380C
|
73380C
73380-26030-B1 Belt Assy, Rear No.1 Seat, Inner Rh[05.1992 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
73380-26030-B1 |
US $51.11 |
||
|
73380D
|
73380D
73350-26030-D0 Belt Assy, Rear Seat, Inner[05.1992 - 08.1993] LH100,107,RZH100,101..08S NEW MAROON,TRIM3#; LH120..GCGE NEW MAROON,TRIM3# |
73350-26030-D0 |
US $51.11 |
||
| replacement | |||||
|
73380D
|
73380D
73350-26030-B1
Belt Assy, Rear Seat, Inner
[05.1992 - 08.1993] LH100,107,RZH100,101..08S NEW MAROON,TRIM3#; LH120..GCGE NEW MAROON,TRIM3# |
73350-26030-B1 |
— | ||
|
73390C
|
73390C
73390-26040-D0 Belt Assy, Rear No.1 Seat, Inner Lh[05.1992 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
73390-26040-D0 |
US $292.66 |
||
| replacement | |||||
|
73390C
|
73390C
73390-26040-B0 Belt Assy, Rear No.1 Seat, Inner Lh[05.1992 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
73390-26040-B0 |
US $292.66 |
||
|
73450A
|
73450A
73350-26060-D0 Belt Assy, No.2 Seat Lap Type, Center[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3# |
73350-26060-D0 |
US $179.09 |
||
|
73550A
|
73550A
73550-26010-D0 Belt Assy, No.3 Seat Lap Type, Center[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3# |
73550-26010-D0 |
US $208.21 |
||
|
73560
|
73560
73560-26050-D0 Belt Assy, Rear No.2 Seat, Outer Rh[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3# |
73560-26050-D0 |
US $320.32 |
||
|
73560A
|
73560A
73560-26080-D0 Belt Assy, No.3 Seat, Outer Rh[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3# |
73560-26080-D0 |
US $330.51 |
||
| replacement | |||||
|
73560A
|
73560A
73560-26080-B1 Belt Assy, Rear No.2 Seat, Outer Rh[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3# |
73560-26080-B1 |
US $330.51 |
||
|
73570A
|
73570A
73560-26030-D0 Belt Assy, No.3 Seat, Outer Rh[05.1992 - 08.1993] LH110,117,120,RZH110..10S NEW MAROON,TRIM3# |
73560-26030-D0 |
US $320.32 |
||
| replacement | |||||
|
73570A
|
73570A
73560-26030-B1 Belt Assy, Rear No.2 Seat, Outer Rh[05.1992 - 08.1993] LH110,117,120,RZH110..10S NEW MAROON,TRIM3# |
73560-26030-B1 |
US $320.32 |
||
|
9011910428
|
9011910428
90119-10428 New Genuine Part |
90119-10428 |
US $1.46 |
||
|
9011910544
|
9011910544
90119-10544 New Genuine Part |
90119-10544 |
US $2.48 |
||
|
9015960389
|
9015960389
90159-60389 New Genuine Part |
90159-60389 |
US $0.61 |
||
