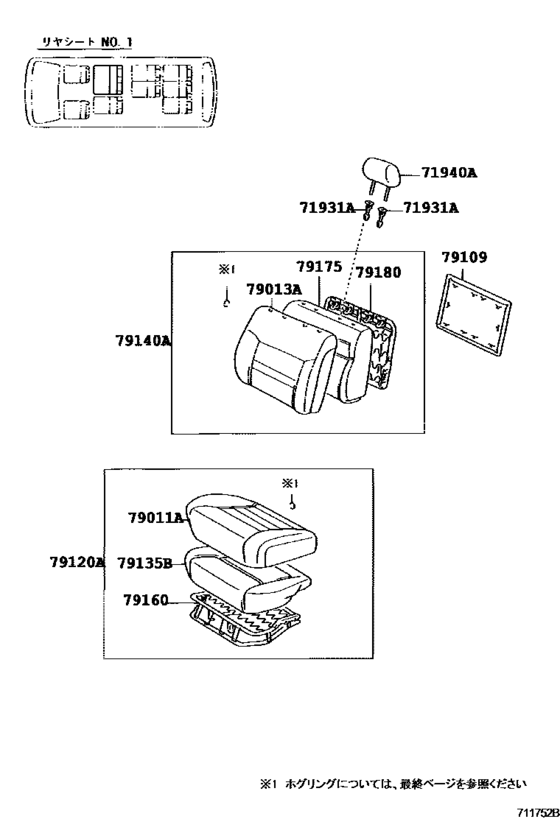

Seat & Seat Track ([05.1992 - ] REAR NO.1 SEAT(RH) (9205- )GCGE) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGE
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71931A
|
71931A
71956-30020-12
Support, Front Seat Headrest
[05.1992 - 08.1993] LH120 ロック無,NEW MAROON,TRIM3# |
71956-30020-12 |
— | ||
|
71931A
|
71931A
71990-30020-12
Support, Front Seat Headrest
[05.1992 - 08.1993] LH120 ロック付,NEW MAROON,TRIM3# |
71990-30020-12 |
— | ||
|
71940A
|
71940A
71940-95J20-02 Headrest Assy, Rear Seat[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3# |
71940-95J20-02 |
US $372.74 |
||
|
79011A
|
79011A
79021-95J49-02 Cover Sub-Assy, No.1 Seat Cushion[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
79021-95J49-02 |
US $659.57 |
||
|
79013A
|
79013A
79023-95J09-02 Cover Sub-Assy, No.1 Seat Back[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
79023-95J09-02 |
US $671.22 |
||
|
79109
|
79109
79207-95J03-02 Board Sub-Assy, No.1 Seat Back[08.1989 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3# |
79207-95J03-02 |
US $177.63 |
||
|
79120A
|
79120A
79220-95J62-02
Cushion Assy, No.1 Seat
[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
79220-95J62-02 |
— | ||
|
79135B
|
79135B
79235-95J02 Pad, No.1 Seat Cushion, Rh[05.1992 - 08.1995] KZH120,LH120..GCGE |
79235-95J02 |
US $183.46 |
||
|
79140A
|
79140A
79240-95J09-02
Back Assy, No.1 Seat
[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
79240-95J09-02 |
— | ||
|
79160
|
79160
79260-95J12 Spring Assy, No.1 Seat Cushion[08.1989 - 08.1993] LH100,107,120,RZH100,101..CTM,GCGE,SCM,SCMM |
79260-95J12 |
US $396.03 |
||
| replacement | |||||
|
79160
|
79160
79260-26020 Spring Assy, No.1 Seat Cushion[08.1989 - 08.1993] LH100,107,120,RZH100,101..CTM,GCGE,SCM,SCMM |
79260-26020 |
US $396.03 |
||
|
79175
|
79175
79275-95J05 Pad, No.1 Seat Back[05.1992 - 08.1995] KZH120,LH120..GCGE |
79275-95J05 |
US $243.15 |
||
|
79180
|
79180
79180-95J18 Spring Assy, No.1 Seat Back[05.1992 - 08.1993] LH120..DX,GCGN 右側; LH120..GCGE 左側 |
79180-95J18 |
US $216.94 |
||
| replacement | |||||
|
79180
|
79180
79180-26071 Spring Assy, No.1 Seat Back[05.1992 - 08.1993] LH120..DX,GCGN 右側; LH120..GCGE 左側 |
79180-26071 |
US $216.94 |
||
|
79180
|
79180
79280-95J06 Spring Assy, No.1 Seat Back[05.1992 - 08.1993] LH120..GCGE 右側 |
79280-95J06 |
US $349.44 |
||
| replacement | |||||
|
79180
|
79180
79280-26030 Spring Assy, No.1 Seat Back[05.1992 - 08.1993] LH120..GCGE 右側 |
79280-26030 |
US $358.18 |
||
