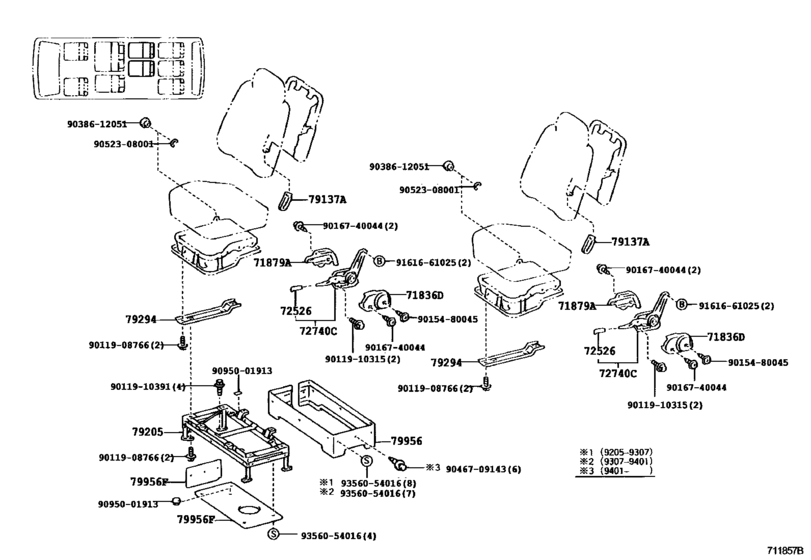

Seat & Seat Track ([05.1992 - ] REAR NO.2 SEAT (9205- )GCGE) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGE
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71836D
|
71836D
71836-95J00-02 Cover, Rear Seat Reclining, Lower Lh[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3#,ＮＯ．２，３ リヤ シート |
71836-95J00-02 |
US $16.31 |
||
|
71836D
|
71836D
71836-95J01-02 Cover, Rear Seat Reclining, Lower Lh[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3#,ＮＯ．１ シート |
71836-95J01-02 |
US $16.16 |
||
|
71879A
|
71879A
71879-95J01-02 Cover, Rear Seat Reclining, Inner Lh[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
71879-95J01-02 |
US $23.88 |
||
|
72526
|
72526
72525-26010-D0 Handle, Reclining Adjuster Release, Lh[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3#,ＮＯ．３ シート |
72525-26010-D0 |
US $9.76 |
||
|
72526
|
72526
72525-95J01-02 Handle, Reclining Adjuster Release, Rh[05.1992 - 08.1993] LH100,107,110,117,120,RZH100,101..07S,08S,10S NEW MAROON,TRIM3# |
72525-95J01-02 |
US $9.61 |
||
|
72740C
|
72740C
C7040-95B17-D4 Adjuster Assy, No.2 Seat Reclining, Lh[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
C7040-95B17-D4 |
US $198.02 |
||
|
79137A
|
79137A
79137-95J00-02 Cover, No.1 Seat Hinge[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
79137-95J00-02 |
US $8.59 |
||
| replacement | |||||
|
79137A
|
79137A
79137-95J00-B0 Cover, No.1 Seat Hinge[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
79137-95J00-B0 |
US $8.44 |
||
|
79205
|
79205
79205-26030-D0 Leg Sub-Assy, No.2 Seat[05.1992 - 08.1993] LH120..GCGE NEW MAROON,TRIM3# |
79205-26030-D0 |
US $246.06 |
||
|
79294
|
79294
C7221-95B00 Reinforcement, No.1 Seat[05.1992 - 07.1999] KZH12#,LH120 |
C7221-95B00 |
US $39.60 |
||
|
79956
|
79956
79956-95J01-02 Cover, Rear Seat Leg Bracket[08.1989 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3#,ＮＯ．１ シート内側リヤ |
79956-95J01-02 |
US $70.18 |
||
| replacement | |||||
|
79956
|
79956
79956-95J01-B0 Cover, Rear Seat Leg Bracket[08.1989 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3#,ＮＯ．１ シート内側リヤ |
79956-95J01-B0 |
US $70.18 |
||
|
79956
|
79956
79956-95J02-02 Cover, Rear Seat Leg Bracket[08.1989 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3#,ＮＯ．１ シート外側 |
79956-95J02-02 |
US $88.82 |
||
| replacement | |||||
|
79956
|
79956
79956-95J02-03 Cover, Rear Seat Leg Bracket[08.1989 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3#,ＮＯ．１ シート外側 |
79956-95J02-03 |
US $88.82 |
||
|
79956
|
79956
79956-95J03-02 Cover, Rear Seat Leg Bracket[08.1989 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3#,ＮＯ．１シート内側フロント |
79956-95J03-02 |
US $70.18 |
||
| replacement | |||||
|
79956
|
79956
79956-95J03-B0 Cover, Rear Seat Leg Bracket[08.1989 - 08.1993] LH100,107,120,RZH100,101..GCGE,SCM,SCMM NEW MAROON,TRIM3#,ＮＯ．１シート内側フロント |
79956-95J03-B0 |
US $70.18 |
||
|
79956
|
79956
79956-95J04-02 Cover, Rear Seat Leg Bracket[08.1989 - 08.1993] RZH101..SCL NEW MAROON,TRIM3#; RZH101..08S;LH100,107,120,RZH100..GCGE,SCL,SCM,SCMM NEW MAROON,TRIM3#,ＮＯ．２ シート |
79956-95J04-02 |
US $117.94 |
||
| replacement | |||||
|
79956
|
79956
79956-95J04-B0 Cover, Rear Seat Leg Bracket[08.1989 - 08.1993] RZH101..SCL NEW MAROON,TRIM3#; RZH101..08S;LH100,107,120,RZH100..GCGE,SCL,SCM,SCMM NEW MAROON,TRIM3#,ＮＯ．２ シート |
79956-95J04-B0 |
US $117.94 |
||
|
79956
|
79956
C3027-95B18-D0 Cover, Rear Seat Leg Bracket[05.1992 - 08.1993] LH120..GCGE,GCGN NEW MAROON,TRIM3#,ＮＯ．３ シート |
C3027-95B18-D0 |
US $537.26 |
||
|
79956F
|
79956F
C3277-95B07-D0 Board, Seat Leg Garnish[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3#,ＮＯ．２ シート外側 |
C3277-95B07-D0 |
US $101.92 |
||
|
79956F
|
79956F
C3277-95B08-D0 Board, Seat Leg Garnish[05.1992 - 08.1993] LH120 NEW MAROON,TRIM3#,ＮＯ．２ シート上側 |
C3277-95B08-D0 |
US $141.23 |
||
|
9011908766
|
9011908766
90119-08766 BOLT WWASHER |
90119-08766 |
US $1.93 |
||
|
9011910315
|
9011910315
90119-10315 BOLT |
90119-10315 |
US $1.16 |
||
|
9011910391
|
9011910391
90119-10391 New Genuine Part |
90119-10391 |
US $1.75 |
||
|
9015480045
|
9015480045
90154-80045
New Genuine Part
|
90154-80045 |
— | ||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9038612051
|
9038612051
90386-12051 Bush (For Front Seat Hinge Pin) |
90386-12051 |
US $2.62 |
||
|
9046709143
|
9046709143
90467-09143 Piece, Rear Bumper |
90467-09143 |
from US $2.01 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9095001913
|
9095001913
90950-01913 New Genuine Part |
90950-01913 |
US $1.24 |
||
|
9161661025
|
9161661025
91616-61025
Bolt (For Control Shaft Cover)
|
91616-61025 |
— | ||
| replacement | |||||
|
9161661025
|
9161661025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9356054016
|
9356054016
93560-54016 SCREW |
93560-54016 |
from US $1.08 |
||
