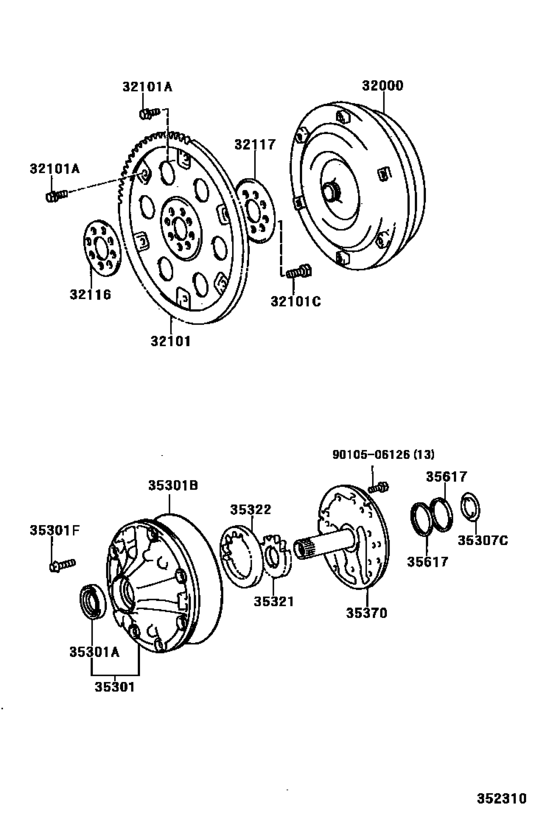

Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGE
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-60070 Converter Assy, Torque[10.1990 - 08.1993] LH100,120..4FC |
32000-60070 |
US $1,805.44 |
||
|
32101
|
32101
32101-35020 Gear Sub-Assy, Drive Plate & Ring[08.1989 - 07.1999] LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC |
32101-35020 |
US $270.23 |
||
|
32101A
|
32101A
90119-09009 Bolt(For Drive Plate & Torque Converter Setting)[08.1989 - 07.1999] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,11 2,124,125,133..4FC ＊９−１．２５ＰＸ１２．８−８．８,イエロー |
90119-09009 |
from US $1.15 |
||
|
32101A
|
32101A
90119-09010 Bolt(For Drive Plate & Torque Converter Setting)[08.1989 - 07.1999] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,11 2,124,125,133..4FC ＊９−１．２５ＰＸ１２．８−９,グリーン |
90119-09010 |
from US $2.87 |
||
|
32101C
|
32101C
90105-12014 Bolt, Hexagon(For Drive Plate Setting)[08.1989 - 07.1999] LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC |
90105-12014 |
US $2.62 |
||
|
32116
|
32116
32116-35010 Spacer, Drive Plate, Front[08.1989 - 07.1999] LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC |
32116-35010 |
US $14.15 |
||
|
32117
|
32117
32117-35010 Spacer, Drive Plate, Rear[08.1989 - 07.1999] LH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC |
32117-35010 |
US $9.43 |
||
|
35301
|
35301
35301-30040 Body Sub-Assy, Front Oil Pump[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC |
35301-30040 |
US $289.60 |
||
|
35301A
|
35301A
90311-38029
Seal, Oil (For Front Oil Pump)
[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC |
90311-38029 |
— | ||
| replacement | |||||
|
35301A
|
35301A
90311-38020 Seal, Oil (For Front Oil Pump)[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC |
90311-38020 |
from US $9.68 |
||
|
35301B
|
35301B
90301-99033 Ring, O (For Front Oil Pump Body)[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC |
90301-99033 |
from US $4.30 |
||
|
35301F
|
35301F
90105-08091 Bolt (For Front Oil Pump Setting)[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC ＊８−１．２５ＰＸ３５−３５ |
90105-08091 |
US $1.89 |
||
|
35307C
|
35307C
35789-30020
Race, Thrust Bearing (For Stator Shaft)
[10.1990 - 06.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝３．７ |
35789-30020 |
— | ||
| replacement | |||||
|
35307C
|
35307C
35789-30340 Race, Thrust Bearing (For Stator Shaft)[10.1990 - 06.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝３．７ |
35789-30340 |
US $5.24 |
||
|
35321
|
35321
35321-12070
Gear, Front Oil Pump Drive
[07.1993 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝９．４４０−９．４４９ |
35321-12070 |
— | ||
|
35321
|
35321
35321-12080 Gear, Front Oil Pump Drive[07.1993 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝９．４５０−９．４５９ |
35321-12080 |
US $50.09 |
||
|
35321
|
35321
35321-12090 Gear, Front Oil Pump Drive[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝９．４６０−９．４７０ |
35321-12090 |
US $50.09 |
||
|
35321
|
35321
35321-12100 Gear, Front Oil Pump Drive[07.1993 - 08.1995] KZH100,120,LH100,120..4FC 厚さ＝９．４７１−９．４８０ |
35321-12100 |
US $50.09 |
||
|
35321
|
35321
35321-12110 Gear, Front Oil Pump Drive[07.1993 - 08.1995] KZH100,120,LH100,120..4FC 厚さ＝９．４８１−９．４９０ |
35321-12110 |
US $50.09 |
||
|
35322
|
35322
35322-12060 Gear, Front Oil Pump Driven[07.1993 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝９．４４０−９．４４９ |
35322-12060 |
US $53.58 |
||
|
35322
|
35322
35322-12070 Gear, Front Oil Pump Driven[07.1993 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝９．４５０−９．４５９ |
35322-12070 |
US $53.58 |
||
|
35322
|
35322
35322-12080 Gear, Front Oil Pump Driven[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝９．４６０−９．４７０ |
35322-12080 |
US $53.58 |
||
|
35322
|
35322
35322-12090 Gear, Front Oil Pump Driven[07.1993 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝９．４７１−９．４８０ |
35322-12090 |
US $53.58 |
||
|
35322
|
35322
35322-12100
Gear, Front Oil Pump Driven
[07.1993 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC 厚さ＝９．４８１−９．４９０ |
35322-12100 |
— | ||
|
35370
|
35370
35370-30031 Shaft Sub-Assy, Stator[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC |
35370-30031 |
US $288.29 |
||
|
35617
|
35617
35617-30020 Ring, Clutch Drum Oil Seal[10.1990 - 07.1999] KZH10#,11#,120,13#,LH100,120..4FC |
35617-30020 |
US $28.39 |
||
|
9010506126
|
9010506126
90105-06126 Bolt (For Stator Shaft) |
90105-06126 |
US $0.87 |
||
