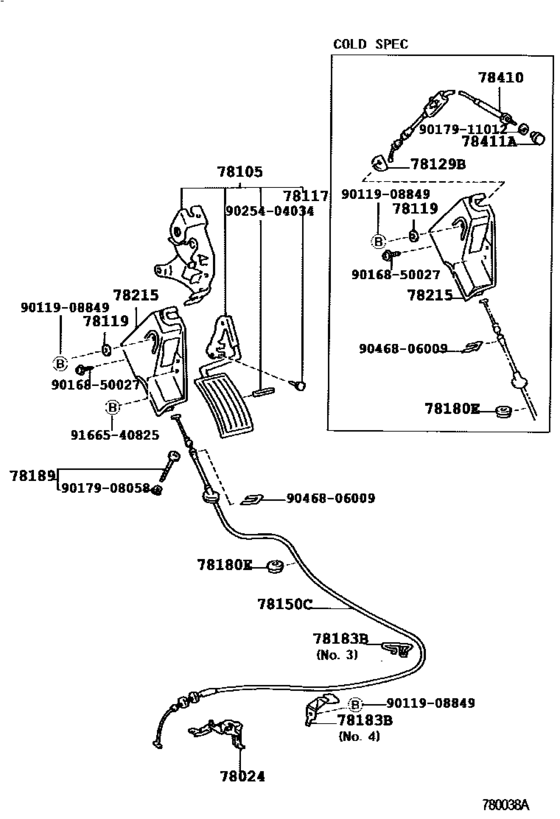

Accelerator Link ([10.1990 - 08.1993] (9010-9308)TDE) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-26020 Bracket Sub-Assy, Accelerator Control Cable[10.1990 - 08.1993] LH100,120..TDE |
78024-26020 |
US $62.32 |
||
|
78105
|
78105
78105-26010 Rod Sub-Assy, Accelerator Connecting, No.3[08.1991 - 07.1998] LH10#,11#,12#,140,RZH10#,11#,12#,133 |
78105-26010 |
US $64.06 |
||
|
78105
|
78105
78105-26020 Rod Sub-Assy, Accelerator Connecting, No.3[08.1991 - 07.1998] LH10#,11#,12#,140 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
78105-26020 |
US $71.64 |
||
|
78117
|
78117
90541-05006 Cushion (For Accelerator Rod)[08.1991 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
90541-05006 |
US $1.16 |
||
|
78119
|
78119
78119-95J00 Stopper, Accelerator Pedal Rod[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
78119-95J00 |
US $2.62 |
||
| replacement | |||||
|
78119
|
78119
78119-37010 Stopper, Accelerator Pedal Rod[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
78119-37010 |
US $0.58 |
||
|
78129B
|
78129B
78129-95J01 Seal, Accelerator Pedal Arm[08.1989 - 07.1999] LH10#,11#,12#,140,16#,17#,18# |
78129-95J01 |
US $3.20 |
||
|
78150C
|
78150C
78150-26010 Wire Assy, Accelerator Flexible[10.1990 - 08.1993] LH100,120..TDE |
78150-26010 |
US $80.08 |
||
|
78180E
|
78180E
90480-26023 Grommet (For Accelerator Wire)[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
90480-26023 |
US $3.32 |
||
|
78183B
|
78183B
78183-26010 Clamp, Accelerator Control Cable[10.1990 - 08.1993] LH100,120..TDE ＮＯ．３ |
78183-26010 |
US $2.48 |
||
|
78183B
|
78183B
78183-26020 Clamp, Accelerator Control Cable[10.1990 - 08.1993] LH100,120..TDE ＮＯ．４ |
78183-26020 |
US $9.17 |
||
|
78183B
|
78183B
78183-26030 Clamp, Accelerator Control Cable[12.1991 - 08.1996] RZH10#,11#,12#,133 ＮＯ．２; LH10#,11#,12#,140 |
78183-26030 |
US $2.18 |
||
|
78189
|
78189
78208-95J02 Bolt, Accelerator Pedal Stopper[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
78208-95J02 |
US $10.05 |
||
|
78215
|
78215
78215-95J01 Case, Accelerator Link[08.1989 - 07.1999] LH10#,11#,12#,140,16#,17#,18# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
78215-95J01 |
US $19.80 |
||
|
78215
|
78215
78215-95J02 Case, Accelerator Link[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
78215-95J02 |
US $19.80 |
||
|
78410
|
78410
78410-95J02
Cable Assy, Throttle Control
[08.1989 - 08.1993] LH100,107,110,117,120,140 |
78410-95J02 |
— | ||
|
78411A
|
78411A
78411-95J01 Knob, Throttle Cable[08.1989 - 07.1999] LH10#,11#,12#,140,16#,17#,18# |
78411-95J01 |
from US $4.95 |
||
|
9011908849
|
9011908849
90119-08849 New Genuine Part |
90119-08849 |
US $3.20 |
||
| replacement | |||||
|
9011908849
|
9011908849
90119-08987 New Genuine Part |
90119-08987 |
US $2.62 |
||
|
9016850027
|
9016850027
90168-50027 New Genuine Part |
90168-50027 |
US $0.93 |
||
|
9017908058
|
9017908058
90179-08058 New Genuine Part |
90179-08058 |
US $4.02 |
||
|
9017911012
|
9017911012
90179-11012 New Genuine Part |
90179-11012 |
US $3.14 |
||
|
9025404034
|
9025404034
90254-04034 Pin (For Accelerator Pedal) |
90254-04034 |
US $2.62 |
||
|
9046806009
|
9046806009
90468-06009 New Genuine Part |
90468-06009 |
US $4.37 |
||
|
9166540825
|
9166540825
91665-40825
New Genuine Part
|
91665-40825 |
— | ||
| replacement | |||||
|
9166540825
|
9166540825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
