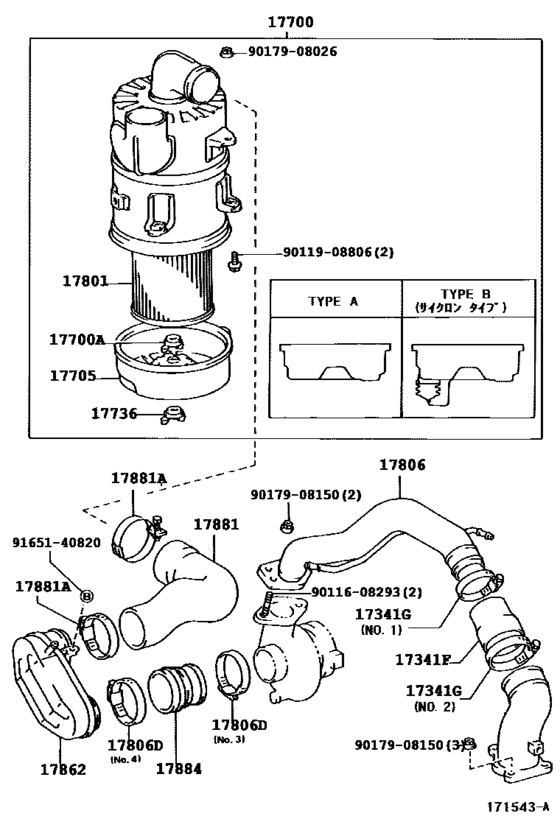

Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-54030 Hose, Air, No.1[10.1990 - 08.1993] 2LTE..LH100,120 |
17341-54030 |
US $30.43 |
||
|
17341G
|
17341G
90460-65008
Clamp Or Clip(For Air Hose, No.1)
[10.1990 - 08.1993] 2LTE..LH100,120 ＮＯ．１ |
90460-65008 |
— | ||
| replacement | |||||
|
17341G
|
17341G
90460-65002 Clamp Or Clip(For Air Hose, No.1)[10.1990 - 08.1993] 2LTE..LH100,120 ＮＯ．１ |
90460-65002 |
from US $3.78 |
||
|
17341G
|
17341G
90467-60001 Clamp Or Clip(For Air Hose, No.1)[07.1991 - 08.1993] 2LTE..LH100,120 ＮＯ．２ |
90467-60001 |
US $7.72 |
||
|
17700
|
17700
17700-54670 Cleaner Assy, Air[10.1990 - 08.1993] 2LTE..LH100,120 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
17700-54670 |
US $422.24 |
||
| replacement | |||||
|
17700
|
17700
17700-54680 Cleaner Assy, Air[10.1990 - 08.1993] 2LTE..LH100,120 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
17700-54680 |
US $422.24 |
||
|
17700
|
17700
17700-54680 Cleaner Assy, Air[10.1990 - 08.1993] 2LTE..LH100,120 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ |
17700-54680 |
US $422.24 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#; 1RZ#,2RZE..RZH10#,11#,12#,133 |
90175-08008 |
from US $2.52 |
||
|
17705
|
17705
17705-75010
Cap Sub-Assy, Air Cleaner
[08.1989 - 08.1998] 2L,2LT#,3L..LH10#,11#,12#,140 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
17705-75010 |
— | ||
|
17705
|
17705
17705-75020
Cap Sub-Assy, Air Cleaner
[08.1989 - 08.1995] 2L,2LT#,3L..LH10#,11#,12#,140 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ |
17705-75020 |
— | ||
|
17736
|
17736
90175-06003 Nut, Wing(For Air Cleaner)[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#; 1RZ#,2RZE..RZH10#,11#,12#,133 |
90175-06003 |
from US $1.21 |
||
|
17801
|
17801
17801-54110 Element Sub-Assy, Air Cleaner Filter[08.1989 - 08.1993] 2LT#..LH100,120 |
17801-54110 |
US $79.46 |
||
|
17806
|
17806
17103-54110 Pipe Sub-Assy, Air Cleaner, No.2[10.1990 - 08.1993] 2LTE..LH100,120 |
17103-54110 |
US $324.69 |
||
|
17806D
|
17806D
90460-67004 Clamp Or Clip(For Air Hose, No.1)[10.1990 - 08.1993] 2LTE..LH100,120 |
90460-67004 |
from US $4.23 |
||
|
17806D
|
17806D
90460-75001 Clamp Or Clip(For Air Hose, No.1)[08.1989 - 08.1993] 2LT#..LH100,120 ＮＯ．３ |
90460-75001 |
US $9.32 |
||
|
17806D
|
17806D
90460-75004 Clamp(For Air Cleaner Pipe)[08.1989 - 08.1993] 2LT#..LH100,120 ＮＯ．４ |
90460-75004 |
US $6.84 |
||
|
17862
|
17862
17862-54021 Connector, Intake Air, No.2[10.1990 - 08.1993] 2LTE..LH100,120 |
17862-54021 |
US $101.92 |
||
|
17881
|
17881
17881-54430 Hose, Air Cleaner, No.1[08.1989 - 08.1993] 2LT#..LH100,120 |
17881-54430 |
US $72.07 |
||
|
17881A
|
17881A
90460-75001 Clamp Or Clip(For Air Hose, No.1)[08.1989 - 08.1993] 2LT#..LH100,120 エアコネクタ側 |
90460-75001 |
US $9.32 |
||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[01.1990 - 07.1999] 2LT#,5L..LH100,120,16#,17#,18# エアクリーナ側 |
96111-10780 |
from US $3.53 |
||
|
17884
|
17884
17884-54011 Hose, Air Cleaner, No.2[08.1989 - 08.1993] 2LT#..LH100,120 |
17884-54011 |
US $25.48 |
||
|
9011608293
|
9011608293
90116-08293 Bolt, Stud(For Manifold To Venturi) |
90116-08293 |
US $1.75 |
||
|
9011908806
|
9011908806
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9017908026
|
9017908026
90179-08026 Nut (For Front Wiper Arm Setting) |
90179-08026 |
US $1.43 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
