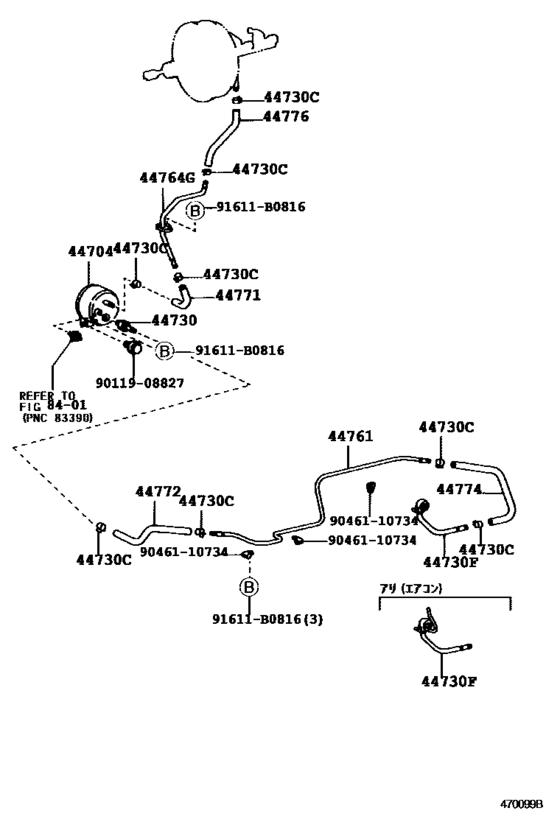

Brake Booster & Vacuum Tube ([08.1989 - 08.1998] (8908-9808)LH10#,11#,12#,140) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-26110
Reservoir Sub-Assy, Vacuum
[08.1989 - 08.1993] LH10#,11#,12#,140 |
44704-26110 |
— | ||
| replacement | |||||
|
44704
|
44704
44704-26111
Reservoir Sub-Assy, Vacuum
[08.1989 - 08.1993] LH10#,11#,12#,140 |
44704-26111 |
— | ||
|
44730
|
44730
44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# |
44730-60050 |
from US $22.85 |
||
|
44730C
|
44730C
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
90467-16002 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
96133-41500 |
from US $2.32 |
||
|
44730F
|
44730F
90405-09134 Union, Vacuum Hose(For Manifold Side)[08.1989 - 08.1998] LH10#,11#,12#,140 ｱﾘ(ｴｱｺﾝ) |
90405-09134 |
US $10.19 |
||
|
44761
|
44761
44761-26150 Tube, Intake Manifold Or Vacuum Pump To Connector[08.1989 - 08.1993] LH10#,11#,12#,140 |
44761-26150 |
US $36.69 |
||
|
44764G
|
44764G
44764-26070 Tube, Connector To Brake Booster[08.1989 - 07.1999] KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
44764-26070 |
US $23.88 |
||
|
44771
|
44771
44771-26110 Hose, Vacuum Tube Connector[08.1989 - 08.1998] KZH10#,11#,12#,13#,LH10#,11#,12#,140 |
44771-26110 |
US $14.68 |
||
|
44772
|
44772
44772-26110 Hose, Check Valve To Connector Tube[08.1989 - 08.1998] KZH10#,11#,12#,13#,LH10#,11#,12#,140 |
44772-26110 |
US $23.94 |
||
|
44774
|
44774
44774-26200
Hose, Union To Connector Tube
[08.1989 - 07.1999] LH100,102,103,110,113,115,120,123,125,140,162,172,182,184 |
44774-26200 |
— | ||
|
44776
|
44776
44776-26030 Hose, Brake Booster[08.1989 - 07.1999] LH162,17#..CD,DX;LH10#,11#,12#,140,168,18# ﾅｼ(ABS) |
44776-26030 |
US $18.20 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.61 |
||
|
9046110734
|
9046110734
90461-10734 New Genuine Part |
90461-10734 |
US $4.80 |
||
