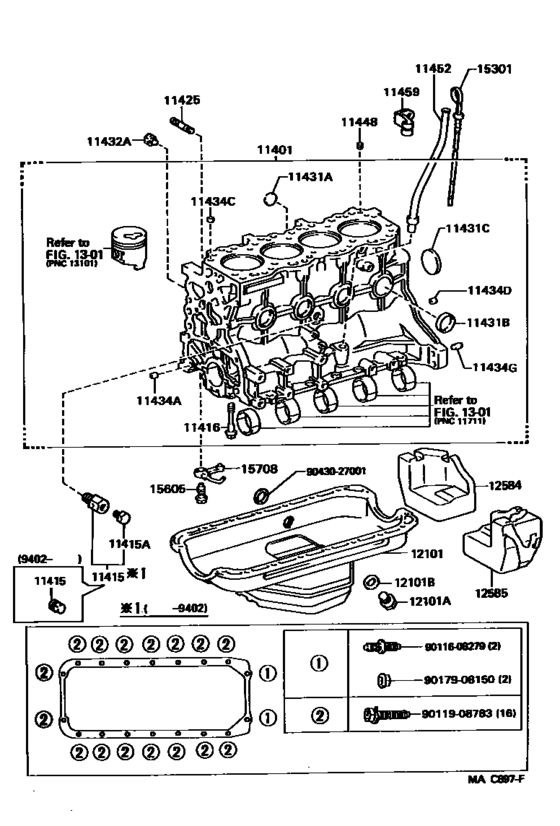

Cylinder Block ([08.1989 - 03.1998] (8908-9803)2L,2LTE,3L..LH100,102,103,110,113,115 ,120,123,125,140) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59497 Block Sub-Assy, Cylinder[04.1991 - 08.1993] 2LTE..LH100,120 |
11401-59497 |
US $3,931.20 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[06.1990 - 02.1994] 2L,2LT#,3L..LH10#,11#,12#,140 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[06.1990 - 02.1994] 2L,2LT#,3L..LH10#,11#,12#,140 |
96432-23814 |
— | ||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
90910-02061 |
US $4.12 |
||
|
11425
|
11425
90116-08157 Bolt, Stud(For Oil Filter)[08.1989 - 11.1995] 2L,2LT#,3L..LH10#,11#,12#,140 |
90116-08157 |
US $1.75 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
96411-43500 |
from US $3.59 |
||
|
11431C
|
11431C
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
96411-45000 |
from US $3.84 |
||
|
11432A
|
11432A
90345-51006 Plug, W/head Taper Screw, No.2[08.1989 - 08.1993] 2L,2LT#..LH100,102,110,120,140 |
90345-51006 |
from US $0.87 |
||
|
11434A
|
11434A
90253-11021 Pin, Ring[12.1990 - 07.1999] 2L#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.44 |
||
|
11434C
|
11434C
90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ＝７，外径＝１４．５ |
90253-15005 |
from US $1.56 |
||
|
11434D
|
11434D
90253-11021 Pin, Ring[02.1991 - 07.1999] 2L#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.44 |
||
|
11434G
|
11434G
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1989 - 02.1995] 2L,2LT#,3L..LH10#,11#,12#,140 |
90250-10192 |
from US $0.99 |
||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
11448-54020 |
US $3.32 |
||
|
11452
|
11452
11452-54090 Guide, Oil Level Gage[08.1989 - 07.1999] 2L,2LTE,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
11452-54090 |
from US $6.30 |
||
|
11459
|
11459
90929-01203 Support, Oil Level Gage Guide[08.1989 - 07.1999] 2L,2LTE,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
90929-01203 |
US $5.42 |
||
|
12101
|
12101
12101-54182 Pan Sub-Assy, Oil[05.1990 - 08.1998] 2L,2LT#,3L..LH100,102,103,110,113,115,120,123,125,140 |
12101-54182 |
US $366.91 |
||
| replacement | |||||
|
12101
|
12101
12101-54184
Pan Sub-Assy, Oil
[05.1990 - 08.1998] 2L,2LT#,3L..LH100,102,103,110,113,115,120,123,125,140 |
12101-54184 |
— | ||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[05.1990 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[05.1990 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[05.1990 - 09.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[05.1990 - 09.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
90430-12031 |
from US $0.84 |
||
|
12584
|
12584
12584-54011 Insulator, Cylinder Brock, No.4[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH100,102,103,113,120,123,162,172,182,184..4FC |
12584-54011 |
US $44.12 |
||
|
12585
|
12585
12585-54011 Insulator, Cylinder Brock, No.5[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH100,102,103,113,120,123,162,172,182,184..4FC |
12585-54011 |
US $44.12 |
||
|
15301
|
15301
15301-54080 Gage Sub-Assy, Oil Level[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
15301-54080 |
from US $7.98 |
||
|
15605
|
15605
15605-54010 Valve Sub-Assy, Oil Check[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
15605-54010 |
from US $9.36 |
||
|
15708
|
15708
15708-54060 Nozzle Sub-Assy, Oil, No.1[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
15708-54060 |
from US $10.57 |
||
|
9011608279
|
9011608279
90116-08279 BOLT STUD |
90116-08279 |
from US $1.29 |
||
|
9011908783
|
9011908783
90119-08783 BOLT WWASHER |
90119-08783 |
from US $1.08 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.05 |
||
