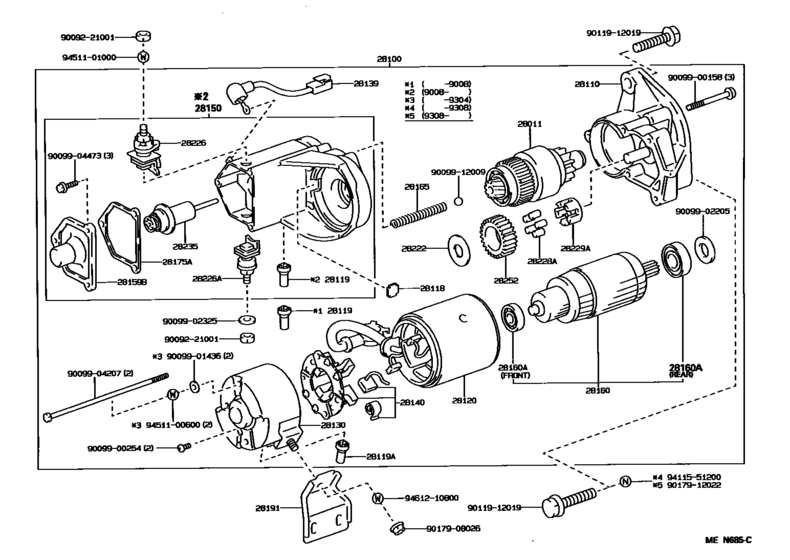

Starter ([08.1989 - 02.1997] 12V 2.7KW (8908-9702)2L,2LT#,3L) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28011-54010 |
from US $189.79 |
||
|
28100
|
28100
28100-54250
Starter Assy
[05.1992 - 08.1993] 2L#,3L..LH10#,11#,12#,140 １２Ｖ ２．７ＫＷ |
28100-54250 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-54430
Starter Assy
[05.1992 - 08.1993] 2L#,3L..LH10#,11#,12#,140 １２Ｖ ２．７ＫＷ |
28100-54430 |
— | ||
|
28110
|
28110
28115-54011
Housing Assy, Starter Drive
[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28115-54011 |
— | ||
|
28118
|
28118
28118-77090
Plate(For Starter Yoke)
[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# |
28118-77090 |
— | ||
|
28119
|
28119
28199-54190 Cover, Starter End Frame[08.1990 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28199-54190 |
US $1.92 |
||
|
28119A
|
28119A
28199-46080 Cover, Starter End Frame[08.1990 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28199-46080 |
from US $2.97 |
||
|
28120
|
28120
28120-56081
Yoke Assy, Starter
[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28120-56081 |
— | ||
|
28130
|
28130
28130-54060
Frame Assy, Starter Commutator End
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
28130-54060 |
— | ||
| replacements | |||||
|
28130
|
28130
28130-54430
Frame Assy, Starter Commutator End
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
28130-54430 |
— | ||
|
28130
|
28130
28199-46080 Cover, Starter End Frame[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
28199-46080 |
from US $2.97 |
||
|
28130
|
28130
90099-04207
New Genuine Part
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 |
90099-04207 |
— | ||
|
28139
|
28139
28139-54250
Wire, Lead, No.1(For Starter)
[05.1992 - 11.1994] 2L#,3L..LH10#,11#,12#,140 12V 2.7KW |
28139-54250 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56290
Wire, Lead, No.1(For Starter)
[05.1992 - 11.1994] 2L#,3L..LH10#,11#,12#,140 12V 2.7KW |
28139-56290 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28140-77090 |
from US $55.39 |
||
|
28150
|
28150
28150-54190 Switch Assy, Magnet Starter[05.1992 - 08.1993] 2L#,3L..LH10#,11#,12#,140 12V 2.7KW |
28150-54190 |
US $334.88 |
||
| replacement | |||||
|
28150
|
28150
28150-54430 Switch Assy, Magnet Starter[05.1992 - 08.1993] 2L#,3L..LH10#,11#,12#,140 12V 2.7KW |
28150-54430 |
US $211.12 |
||
|
28159B
|
28159B
28159-56310
Cover, Magnet Switch
[10.1990 - 07.1999] 2L#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28159-56310 |
— | ||
|
28160
|
28160
28160-54140 Armature Assy, Starter[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28160-54140 |
from US $185.07 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,フロント |
90099-10107 |
from US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,リヤ |
90099-10119 |
from US $10.18 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28165-77090 |
— | ||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[10.1990 - 07.1999] 1KZTE,2L#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28175-56310 |
from US $1.92 |
||
|
28191
|
28191
28191-54010 Stay, Starter[08.1989 - 02.1997] 2L,2LT#,3L..LH10#,11#,12#,140 |
28191-54010 |
US $16.31 |
||
|
28222
|
28222
28222-77090
Washer, Starter Idle Gear Clutch
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28222-77090 |
— | ||
|
28226
|
28226
28226-54250
Starter Kit, Battery Terminal
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 12V 2.7KW |
28226-54250 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54300 Starter Kit, Battery Terminal[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 12V 2.7KW |
28226-54300 |
from US $8.68 |
||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28226-54220 |
from US $12.40 |
||
|
28228A
|
28228A
28228-56080
Roller, Starter Idle Gear Clutch
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28228-56080 |
— | ||
|
28229A
|
28229A
28229-56080
Retainer, Starter Idle Gear
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28229-56080 |
— | ||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[08.1989 - 07.1999] 1KZTE,2L,2LTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28235-17030 |
from US $25.68 |
||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900158
|
9009900158
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009900254
|
9009900254
90099-00254
New Genuine Part
|
90099-00254 |
— | ||
|
9009901436
|
9009901436
90099-01436
New Genuine Part
|
90099-01436 |
— | ||
|
9009902205
|
9009902205
90099-02205
Washer, Felt, Starter
|
90099-02205 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.29 |
||
|
9009904207
|
9009904207
90099-04207
New Genuine Part
|
90099-04207 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011912019
|
9011912019
90119-12019 Bolt(For Transaxle & Engine Setting) |
90119-12019 |
US $2.80 |
||
|
9017908026
|
9017908026
90179-08026 Nut (For Front Wiper Arm Setting) |
90179-08026 |
US $1.43 |
||
|
9017912022
|
9017912022
90179-12022 Nut(For Vane Pump Pulley) |
90179-12022 |
US $6.63 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
