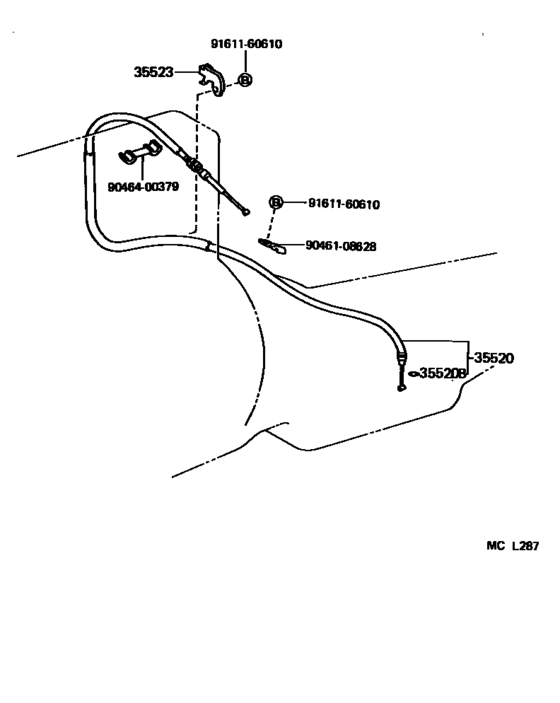

Throttle Link & Valve Lever (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35520
|
35520
35520-26050 Cable Assy, Throttle[10.1990 - 08.1993] LH100,120..4FC |
35520-26050 |
US $55.62 |
||
|
35520B
|
35520B
90301-09012 Ring, O (For Automatic Transmission Case Plug)[08.1989 - 08.1996] KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,133..4FC |
90301-09012 |
US $3.94 |
||
|
35523
|
35523
35523-26040 Clamp, Throttle Cable[10.1990 - 08.1993] LH100,120..4FC |
35523-26040 |
US $7.28 |
||
|
9046108628
|
9046108628
90461-08628 Clamp, Automatic Transmission Oil Cooler Tube |
90461-08628 |
US $2.62 |
||
|
9046400379
|
9046400379
90464-00379 Clamp |
90464-00379 |
US $2.04 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
