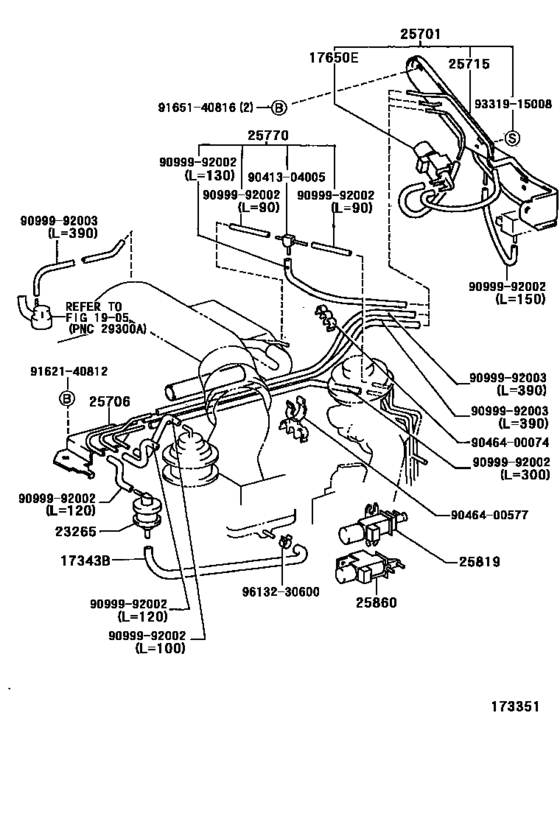

Vacuum Piping ([10.1990 - 08.1993] (9010-9308)2LTE) Diagram Toyota HIACE
- Year
- 1992 - 1993
- Sales region
- Japan
- Frame
- LH120
- grade
- GCGN
- body
- WG
- Roof
- HRF
- ENGINE
- 2LTE
- Model
- HIACE/REGIUSACE
- From
- 05.1992
- To
- 08.1993
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Fuel Induction
- TDE
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17343B
|
17343B
17343-54010 Hose, No.3(For Idle-Up)[10.1990 - 08.1993] 2LTE..LH100,120 |
17343-54010 |
US $8.88 |
||
|
17650E
|
17650E
90910-12097
Valve, Vacuum Switching
[10.1990 - 08.1993] 2LTE..LH100,120 |
90910-12097 |
— | ||
|
23265
|
23265
90917-11033
Filter, Gas, No.1
[08.1989 - 08.1993] 2LT#,3L..LH100,107,117,120 |
90917-11033 |
— | ||
|
25701
|
25701
25701-54060 Valve Set, Emission Control[10.1990 - 08.1993] 2LTE..LH100,120 |
25701-54060 |
US $208.21 |
||
|
25706
|
25706
25706-54030 Pipe Sub-Assy, Vacuum Transmitting, No.1[10.1990 - 08.1993] 2LTE..LH100,120 |
25706-54030 |
US $52.71 |
||
|
25715
|
25715
25715-54020 Bracket, Emission Control Valve[10.1990 - 08.1993] 2LTE..LH100,120 |
25715-54020 |
US $19.36 |
||
|
25770
|
25770
25770-54020 Hose Assy, Vacuum Transmitting, No.2[10.1990 - 08.1993] 2LTE..LH100,120 |
25770-54020 |
US $15.14 |
||
|
25819
|
25819
25819-54070 Valve Assy, Vacuum Regulating[10.1990 - 08.1993] 2LTE..LH100,120 |
25819-54070 |
US $163.07 |
||
|
25860
|
25860
25860-54060 Valve Assy, Vacuum Switching, No.1[10.1990 - 08.1993] 2LTE..LH100,120 |
25860-54060 |
US $85.90 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400577
|
9046400577
90464-00577 New Genuine Part |
90464-00577 |
US $2.77 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
