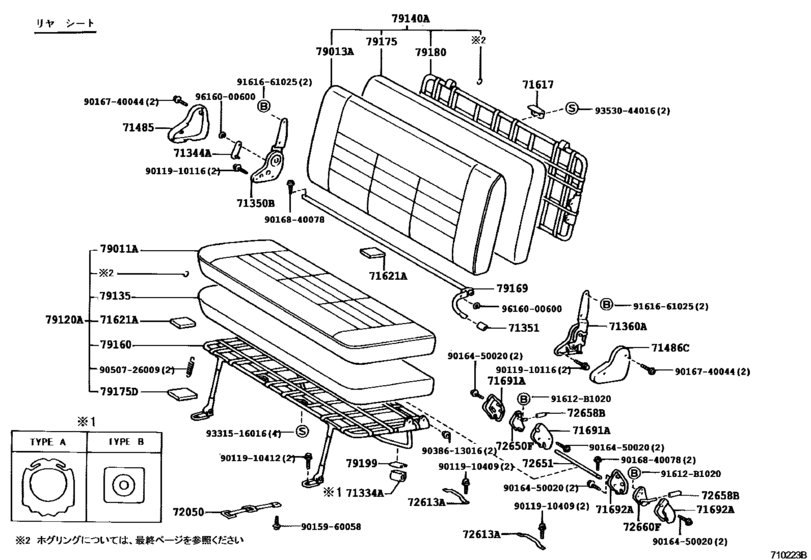

Seat & Seat Track ([10.1990 - 08.1993] (9010-9308)LH140) Diagram Toyota HIACE
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- LH140
- grade
- SW
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- Model
- HIACE/REGIUSACE
- From
- 10.1990
- To
- 08.1993
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 06S
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71334A
|
71334A
71334-26020
Stopper, Rear Seat Leg
[10.1990 - 08.1993] LH110,140..SW TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
71334-26020 |
— | ||
|
71344A
|
71344A
71344-95J00 Plate, Rear Seat Cushion Hinge[08.1989 - 08.1996] LH102,103,109,113,119,140,RZH102,112..06S..(GL,SW) |
71344-95J00 |
US $4.37 |
||
|
71350B
|
71350B
71350-95J48 Hinge Assy, Rear Seat, Rh[08.1989 - 08.1996] LH113,RZH112..06S..GL;LH102,103,109,110,119,140,RZH102..GL,SW |
71350-95J48 |
US $123.76 |
||
|
71351
|
71351
71351-95J03-03 Knob, Seat Hinge Lever[08.1989 - 08.1993] LH113,RZH112..06S..GL;LH102,109,110,119,140,RZH102..GL,SW GRAY,TRIM1# |
71351-95J03-03 |
US $6.41 |
||
| replacement | |||||
|
71351
|
71351
71351-95J03-B0 Knob, Seat Hinge Lever[08.1989 - 08.1993] LH113,RZH112..06S..GL;LH102,109,110,119,140,RZH102..GL,SW GRAY,TRIM1# |
71351-95J03-B0 |
US $6.41 |
||
|
71360A
|
71360A
71360-95J21 Hinge Assy, Rear Seat, Lh[08.1989 - 08.1996] LH113,RZH112..06S..GL;LH102,103,109,110,119,140,RZH102..GL,SW |
71360-95J21 |
US $123.76 |
||
|
71485
|
71485
71485-95J01-03 Cover, Rear Seat Hinge[08.1989 - 08.1993] LH102,109,113,119,140,RZH102,112..06S..(GL,SW) GRAY,TRIM1# |
71485-95J01-03 |
US $23.88 |
||
| replacement | |||||
|
71485
|
71485
71485-95J01-B0 Cover, Rear Seat Hinge[08.1989 - 08.1993] LH102,109,113,119,140,RZH102,112..06S..(GL,SW) GRAY,TRIM1# |
71485-95J01-B0 |
US $24.17 |
||
|
71486C
|
71486C
71486-95J02-03 Cover, Rear Seat Hinge, Lh[08.1989 - 08.1993] LH102,109,113,119,140,RZH102,112..06S..(GL,SW) GRAY,TRIM1# |
71486-95J02-03 |
US $27.52 |
||
| replacement | |||||
|
71486C
|
71486C
71486-95J02-B0 Cover, Rear Seat Hinge, Lh[08.1989 - 08.1993] LH102,109,113,119,140,RZH102,112..06S..(GL,SW) GRAY,TRIM1# |
71486-95J02-B0 |
US $24.17 |
||
|
71617
|
71617
71695-95J02-03 Protector, Rear Seat Back[08.1989 - 08.1993] LH102,109,113,119,123,129,140,RZH102,112,122..DX,GL,SGL,SW GRAY,TRIM1# |
71695-95J02-03 |
US $13.69 |
||
| replacement | |||||
|
71617
|
71617
71695-95J02-B0 Protector, Rear Seat Back[08.1989 - 08.1993] LH102,109,113,119,123,129,140,RZH102,112,122..DX,GL,SGL,SW GRAY,TRIM1# |
71695-95J02-B0 |
US $13.83 |
||
|
71621A
|
71621A
71621-95701 Pad, Rear Seat Cushion Silencer, A[08.1989 - 08.1996] LH102,103,109,113,119,140,RZH102,112..06S..(GL,SW) ２０ Ｘ３０ |
71621-95701 |
US $2.62 |
||
|
71621A
|
71621A
71621-95J02 Pad, Rear Seat Cushion Silencer, A[08.1989 - 08.1995] KZH11#,LH110,117,140,RZH110;LH102,103,109,113,119,125,RZH102,112..(06S,15S)..GL ３０ Ｘ ４５ |
71621-95J02 |
US $3.49 |
||
|
71691A
|
71691A
71691-95703-13 Cover, Rear No.3 Seat Lock, Rh[08.1989 - 08.1993] LH102,110,113,119,140..(05S,06S,09S)..(SGL,SW) GRAY,TRIM1#,外側 |
71691-95703-13 |
US $19.66 |
||
| replacement | |||||
|
71691A
|
71691A
71691-95703-B0 Cover, Rear No.3 Seat Lock, Rh[08.1989 - 08.1993] LH102,110,113,119,140..(05S,06S,09S)..(SGL,SW) GRAY,TRIM1#,外側 |
71691-95703-B0 |
US $19.04 |
||
|
71691A
|
71691A
71692-95J00-03 Cover, Rear No.3 Seat Lock, Rh[08.1989 - 08.1993] LH102,110,113,119,140..(05S,06S,09S)..(SGL,SW) GRAY,TRIM1#,内側 |
71692-95J00-03 |
US $7.72 |
||
| replacement | |||||
|
71691A
|
71691A
71692-95J00-B0 Cover, Rear No.3 Seat Lock, Rh[08.1989 - 08.1993] LH102,110,113,119,140..(05S,06S,09S)..(SGL,SW) GRAY,TRIM1#,内側 |
71692-95J00-B0 |
US $6.55 |
||
|
71692A
|
71692A
71691-95J00-03 Cover, Rear No.3 Seat Lock, Lh[08.1989 - 08.1993] LH102,110,113,119,140..(05S,06S,09S)..(SGL,SW) GRAY,TRIM1#,内側 |
71691-95J00-03 |
US $7.72 |
||
| replacement | |||||
|
71692A
|
71692A
71691-95J00-B0 Cover, Rear No.3 Seat Lock, Lh[08.1989 - 08.1993] LH102,110,113,119,140..(05S,06S,09S)..(SGL,SW) GRAY,TRIM1#,内側 |
71691-95J00-B0 |
US $6.99 |
||
|
71692A
|
71692A
71692-95702-13 Cover, Rear No.3 Seat Lock, Lh[08.1989 - 08.1993] LH102,110,113,119,140..(05S,06S,09S)..(SGL,SW) GRAY,TRIM1#,外側 |
71692-95702-13 |
US $19.66 |
||
| replacement | |||||
|
71692A
|
71692A
71692-95702-B0 Cover, Rear No.3 Seat Lock, Lh[08.1989 - 08.1993] LH102,110,113,119,140..(05S,06S,09S)..(SGL,SW) GRAY,TRIM1#,外側 |
71692-95702-B0 |
US $16.31 |
||
|
72050
|
72050
72050-95J00 Belt Assy, Rear Seat Hook[08.1989 - 08.1993] LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
72050-95J00 |
US $12.52 |
||
|
72050
|
72050
72050-95J01 Belt Assy, Rear Seat Hook[08.1989 - 08.1993] LH113..V2..GL;LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..06S TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
72050-95J01 |
US $9.32 |
||
|
72613A
|
72613A
72613-95J00 Striker, Front Seat Lock[08.1989 - 08.1998] LH102,103,113,119,140..(05S,06S)..(SGL,SW) |
72613-95J00 |
US $9.17 |
||
|
72650F
|
72650F
72650-95J03 Lock Assy, Rear Seat, Rh[10.1990 - 08.1993] LH140; LH110..SW ＮＯ．２ シート |
72650-95J03 |
US $99.01 |
||
|
72651
|
72651
72651-95J06 Rod, Rear Seat Back Lock[10.1990 - 08.1993] LH140 |
72651-95J06 |
US $20.53 |
||
|
72658B
|
72658B
72658-95701-13 Knob, Rear Seat Lock Handle[08.1989 - 08.1993] LH100,102,110,RZH100,101..05S,09S;LH113,119,140..(05S,06S)..(SGL,SW) GRAY,TRIM1# |
72658-95701-13 |
US $8.59 |
||
| replacement | |||||
|
72658B
|
72658B
72658-95701-11 Knob, Rear Seat Lock Handle[08.1989 - 08.1993] LH100,102,110,RZH100,101..05S,09S;LH113,119,140..(05S,06S)..(SGL,SW) GRAY,TRIM1# |
72658-95701-11 |
US $6.99 |
||
|
72660F
|
72660F
72660-95J02 Lock Assy, Rear Seat, Lh[10.1990 - 08.1993] LH140; LH110..SW ＮＯ．２ シート |
72660-95J02 |
US $99.01 |
||
|
79011A
|
79011A
79011-26050-03 Cover Sub-Assy, No.1 Seat Cushion[10.1990 - 08.1993] LH140 GRAY,TRIM1# |
79011-26050-03 |
US $426.61 |
||
|
79013A
|
79013A
79013-26030-03 Cover Sub-Assy, No.1 Seat Back[10.1990 - 08.1993] LH140 GRAY,TRIM1# |
79013-26030-03 |
US $449.90 |
||
|
79120A
|
79120A
79120-26030-03
Cushion Assy, No.1 Seat
[10.1990 - 08.1993] LH140 GRAY,TRIM1# |
79120-26030-03 |
— | ||
|
79135
|
79135
79135-26040 Pad, No.1 Seat Cushion[10.1990 - 08.1993] LH140 |
79135-26040 |
US $254.80 |
||
|
79140A
|
79140A
79140-26030-03
Back Assy, No.1 Seat
[10.1990 - 08.1993] LH140 GRAY,TRIM1# |
79140-26030-03 |
— | ||
|
79160
|
79160
79160-26020 Spring Assy, No.1 Seat Cushion[10.1990 - 08.1993] LH140 |
79160-26020 |
US $458.64 |
||
|
79169
|
79169
79019-95J03 Rod, Rear Seat Hinge Connector[08.1989 - 08.1996] LH102,103,109,113,119,140,RZH102,112..06S..(GL,SW) ＮＯ．１ シート |
79019-95J03 |
US $48.63 |
||
|
79175
|
79175
79175-26030 Pad, No.1 Seat Back[10.1990 - 08.1993] LH140 |
79175-26030 |
US $149.97 |
||
|
79175D
|
79175D
79175-95J13 Pad, No.1 Seat Back[05.1992 - 08.1993] LH140 |
79175-95J13 |
US $3.79 |
||
| replacement | |||||
|
79175D
|
79175D
79175-95J04 Pad, No.1 Seat Back[05.1992 - 08.1993] LH140 |
79175-95J04 |
US $3.93 |
||
|
79180
|
79180
79180-26030 Spring Assy, No.1 Seat Back[10.1990 - 08.1993] LH140 |
79180-26030 |
US $297.02 |
||
|
79199
|
79199
79199-95J00 Holder, No.1 Seat Leg Stopper[02.1990 - 12.1990] LH113,119,123,RZH112,122..09S..DX;LH113,RZH112..(05S,06S)..(GL,SGL);LH102,109,110, 119,140,RZH102..(05S,06S,09S)..(GL,SGL,SW) |
79199-95J00 |
US $5.23 |
||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9011910116
|
9011910116
90119-10116
New Genuine Part
|
90119-10116 |
— | ||
| replacement | |||||
|
9011910116
|
9011910116
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9011910409
|
9011910409
90119-10409 New Genuine Part |
90119-10409 |
US $1.97 |
||
|
9011910412
|
9011910412
90119-10412 New Genuine Part |
90119-10412 |
US $2.97 |
||
|
9015960058
|
9015960058
90159-60058 New Genuine Part |
90159-60058 |
US $1.46 |
||
|
9016450020
|
9016450020
90164-50020 New Genuine Part |
90164-50020 |
US $1.25 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9016840078
|
9016840078
90168-40078 New Genuine Part |
90168-40078 |
US $1.31 |
||
|
9038613016
|
9038613016
90386-13016 New Genuine Part |
90386-13016 |
US $2.62 |
||
|
9050726009
|
9050726009
90507-26009 Spring, Rear Seat Cushion |
90507-26009 |
US $2.33 |
||
|
9161661025
|
9161661025
91616-61025
Bolt (For Control Shaft Cover)
|
91616-61025 |
— | ||
| replacement | |||||
|
9161661025
|
9161661025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9331516016
|
9331516016
93315-16016 New Genuine Part |
93315-16016 |
US $1.22 |
||
|
9353044016
|
9353044016
93530-44016 New Genuine Part |
93530-44016 |
US $1.60 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
