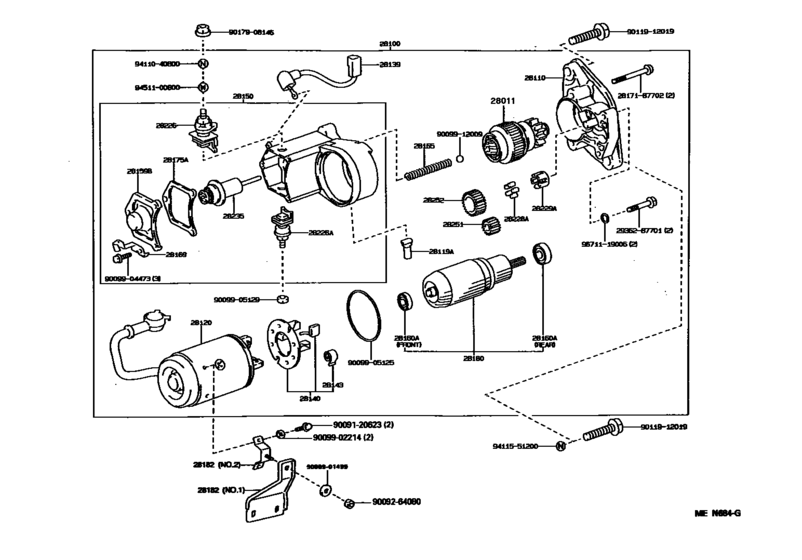

Starter ([08.1989 - 08.1993] 12V 2.0KW (8908-9308)2L,2LT#,3L) Diagram Toyota HIACE
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- LH140
- grade
- SW
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- Model
- HIACE/REGIUSACE
- From
- 10.1990
- To
- 08.1993
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 06S
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28011-54010 |
from US $189.79 |
||
|
28011
|
28011
28011-54070 Clutch Sub-Assy, Starter[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28011-54070 |
from US $240.53 |
||
|
28100
|
28100
28100-54070 Starter Assy[08.1989 - 05.1992] 2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140..5F １２Ｖ ２．０ＫＷ |
28100-54070 |
US $1,805.44 |
||
| replacement | |||||
|
28100
|
28100
28100-54180 Starter Assy[08.1989 - 05.1992] 2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140..5F １２Ｖ ２．０ＫＷ |
28100-54180 |
US $1,805.44 |
||
|
28100
|
28100
28100-54170 Starter Assy[05.1992 - 08.1993] 2L#,3L..LH100,102,110,113,115,120,123,125,140..5F １２Ｖ ２．０ＫＷ |
28100-54170 |
US $1,820 |
||
| replacement | |||||
|
28100
|
28100
28100-54380 Starter Assy[05.1992 - 08.1993] 2L#,3L..LH100,102,110,113,115,120,123,125,140..5F １２Ｖ ２．０ＫＷ |
28100-54380 |
from US $819.51 |
||
|
28100
|
28100
28100-54220
Starter Assy
[08.1989 - 05.1992] 2L,2LT#,3L..LH10#,11#,12#,140 １２Ｖ ２．７ＫＷ |
28100-54220 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-54210 Starter Assy[08.1989 - 05.1992] 2L,2LT#,3L..LH10#,11#,12#,140 １２Ｖ ２．７ＫＷ |
28100-54210 |
US $2,169.44 |
||
|
28100
|
28100
28100-54250
Starter Assy
[05.1992 - 08.1993] 2L#,3L..LH10#,11#,12#,140 １２Ｖ ２．７ＫＷ |
28100-54250 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-54430
Starter Assy
[05.1992 - 08.1993] 2L#,3L..LH10#,11#,12#,140 １２Ｖ ２．７ＫＷ |
28100-54430 |
— | ||
|
28110
|
28110
28115-54011
Housing Assy, Starter Drive
[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28115-54011 |
— | ||
|
28110
|
28110
28115-54070
Housing Assy, Starter Drive
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28115-54070 |
— | ||
|
28119A
|
28119A
28199-46080 Cover, Starter End Frame[08.1990 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28199-46080 |
from US $2.97 |
||
|
28119A
|
28119A
28199-77090
Cover, Starter End Frame
[08.1990 - 05.1992] 2L,3L..LH102,113,119,123;2L,2LT#,3L..LH100,107,109,110,115,117,120,125,129,140..5F 12V 2.0KW |
28199-77090 |
— | ||
|
28120
|
28120
28120-54070
Yoke Assy, Starter
[08.1989 - 08.1993] 2L,2LT#,3L..LH100,102,110,113,115,120,123,125,140..5F 12V 2.0KW |
28120-54070 |
— | ||
|
28120
|
28120
28120-56081
Yoke Assy, Starter
[08.1989 - 07.1999] 2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28120-56081 |
— | ||
|
28139
|
28139
28139-54070
Wire, Lead, No.1(For Starter)
[08.1989 - 05.1992] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28139-54070 |
— | ||
|
28139
|
28139
28139-54250
Wire, Lead, No.1(For Starter)
[05.1992 - 11.1994] 2L#,3L..LH10#,11#,12#,140 12V 2.7KW |
28139-54250 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56290
Wire, Lead, No.1(For Starter)
[05.1992 - 11.1994] 2L#,3L..LH10#,11#,12#,140 12V 2.7KW |
28139-56290 |
— | ||
|
28139
|
28139
28139-77110
Wire, Lead, No.1(For Starter)
[08.1989 - 05.1992] 2L,2LT#,3L..LH10#,11#,12#,140 12V 2.7KW |
28139-77110 |
— | ||
|
28140
|
28140
28140-54070
Holder Assy, Starter Brush
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28140-54070 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28140-77090 |
from US $55.39 |
||
|
28143
|
28143
90099-17115
Spring, Starter Brush
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.2KW |
90099-17115 |
— | ||
|
28150
|
28150
28150-54070
Switch Assy, Magnet Starter
[08.1989 - 05.1992] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28150-54070 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-54110 Switch Assy, Magnet Starter[08.1989 - 05.1992] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28150-54110 |
US $352.35 |
||
|
28150
|
28150
28150-54190 Switch Assy, Magnet Starter[05.1992 - 08.1993] 2L#,3L..LH10#,11#,12#,140 12V 2.7KW |
28150-54190 |
US $334.88 |
||
| replacement | |||||
|
28150
|
28150
28150-54430 Switch Assy, Magnet Starter[05.1992 - 08.1993] 2L#,3L..LH10#,11#,12#,140 12V 2.7KW |
28150-54430 |
US $211.12 |
||
|
28150
|
28150
28150-54220 Switch Assy, Magnet Starter[08.1989 - 05.1992] 2L,2LT#,3L..LH10#,11#,12#,140 12V 2.7KW |
28150-54220 |
US $336.34 |
||
| replacement | |||||
|
28150
|
28150
28150-54210 Switch Assy, Magnet Starter[08.1989 - 05.1992] 2L,2LT#,3L..LH10#,11#,12#,140 12V 2.7KW |
28150-54210 |
US $334.88 |
||
|
28159B
|
28159B
28159-54170
Cover, Magnet Switch
[10.1990 - 08.1993] 2L#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28159-54170 |
— | ||
|
28159B
|
28159B
28159-56310
Cover, Magnet Switch
[10.1990 - 07.1999] 2L#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28159-56310 |
— | ||
|
28160
|
28160
28160-54071
Armature Assy, Starter
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28160-54071 |
— | ||
|
28160
|
28160
28160-54140 Armature Assy, Starter[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28160-54140 |
from US $185.07 |
||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW,フロント |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,フロント |
90099-10107 |
from US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,リヤ |
90099-10119 |
from US $10.18 |
||
|
28160A
|
28160A
90099-10131 Bearing, Starter Armature[08.1989 - 08.1993] 3L..LH113..09S..5F;2L,3L..LH102,119,123;3L..LH113..03S,05S,06S;2L,2LT#,3L..LH100,1 07,109,110,115,117,120,125,129,140..5F 12V 2.0KW,リヤ |
90099-10131 |
US $7.43 |
||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28165-26040 |
— | ||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28165-77090 |
— | ||
|
28169
|
28169
28169-54070
Clamp, Starter Motor Lead Wire
[10.1990 - 08.1993] 2L#,3L..LH10#,11#,12#,140..5F 12V 1.0KW,2.0KW |
28169-54070 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[10.1990 - 08.1993] 2L#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28175-10040 |
— | ||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[10.1990 - 07.1999] 1KZTE,2L#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28175-56310 |
from US $1.92 |
||
|
28226
|
28226
28226-54080
Starter Kit, Battery Terminal
[08.1989 - 01.1991] 2L,2LTE,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28226-54080 |
— | ||
|
28226
|
28226
28226-54250
Starter Kit, Battery Terminal
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 12V 2.7KW |
28226-54250 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54300 Starter Kit, Battery Terminal[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140 12V 2.7KW |
28226-54300 |
from US $8.68 |
||
|
28226
|
28226
28226-54350
Starter Kit, Battery Terminal
[01.1991 - 08.1993] 2L#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28226-54350 |
— | ||
|
28226A
|
28226A
28226-54100
Starter Kit, Motor Terminal
[08.1989 - 01.1991] 2L,2LTE,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28226-54100 |
— | ||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28226-54220 |
from US $12.40 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[01.1991 - 08.1998] 1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,2L#,3L,1RZ#..KZH10#,11#,12#,LH10#,11#,12#, 140,RZH110,12#..5F 12V 1.0KW,2.0KW,2.2KW |
28226-72010 |
from US $10.22 |
||
|
28228A
|
28228A
28228-26040
Roller, Starter Idle Gear Clutch
[08.1989 - 07.1999] 1RZ#,2RZE..RZH10#,111,112,124,125,133;5L,1RZ#..LH16#,17#,18#,RZH110,122,124..5F 12V 2.2KW; 1KZTE,2L,2LT#,3L..KZH10#,11#,12#,LH10#,11#,12#,140..5F 12V 2.0KW |
28228-26040 |
— | ||
|
28228A
|
28228A
28228-56080
Roller, Starter Idle Gear Clutch
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28228-56080 |
— | ||
|
28229A
|
28229A
28229-26040
Retainer, Starter Idle Gear
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW; 1RZ#,2RZE..RZH10#,11#,12# 12V 1.0KW |
28229-26040 |
— | ||
|
28229A
|
28229A
28229-56080
Retainer, Starter Idle Gear
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28229-56080 |
— | ||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[08.1989 - 07.1999] 1KZTE,2L,2LTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28235-17030 |
from US $25.68 |
||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[10.1990 - 08.1993] 2L#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28235-35080 |
from US $23.41 |
||
|
28251
|
28251
28251-54070
Plate, Lead, Switch Connecting
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F |
28251-54070 |
— | ||
|
28252
|
28252
28254-54070
Pinion, Starter Drive
[08.1989 - 08.1993] 2L,2LT#,3L..LH10#,11#,12#,140..5F 12V 2.0KW |
28254-54070 |
— | ||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[08.1989 - 07.1999] 1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
28254-77090 |
— | ||
|
2817187702
|
2817187702
28171-87702
Bolt, Starter
|
28171-87702 |
— | ||
|
2936287701
|
2936287701
29362-87701
Bolt, Starter
|
29362-87701 |
— | ||
|
9009120623
|
9009120623
90091-20623
New Genuine Part
|
90091-20623 |
— | ||
|
9009264080
|
9009264080
90092-64080
New Genuine Part
|
90092-64080 |
— | ||
|
9009901499
|
9009901499
90099-01499
New Genuine Part
|
90099-01499 |
— | ||
|
9009902214
|
9009902214
90099-02214
New Genuine Part
|
90099-02214 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009905125
|
9009905125
90099-05125
New Genuine Part
|
90099-05125 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011912019
|
9011912019
90119-12019 Bolt(For Transaxle & Engine Setting) |
90119-12019 |
US $2.80 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $3.05 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9671119006
|
9671119006
96711-19006 Packing(For Radiator Drain Cock) |
96711-19006 |
US $3.23 |
||
