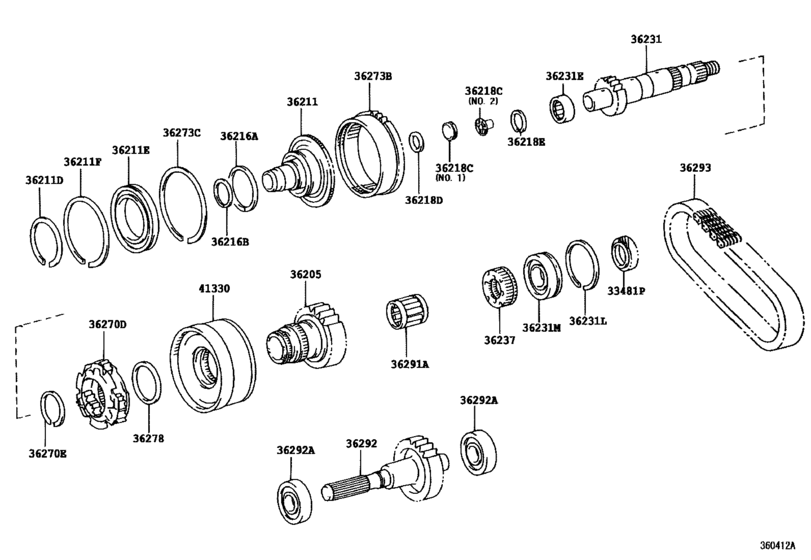

Transfer Gear ([08.1998 - ] (9808- )LH166,176) Diagram Toyota HIACE
- Year
- 1998 - 2004
- Sales region
- Europe
- Frame
- LH166
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 5L
- DESTINATION
- CIS
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1998
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481P
|
33481P
33481-26080 Gear, Speedometer Drive (For Transfer)[08.1998 - 07.1999] LH166,176 N=6,MARK 1 |
33481-26080 |
US $21.67 |
||
|
36205
|
36205
36205-26020 Sprocket Sub-Assy, Transfer Drive[08.1998 - 07.1999] LH166,176 |
36205-26020 |
US $59.93 |
||
|
36211
|
36211
36211-28040 Shaft, Transfer Input[08.1998 - 07.1999] LH166,176 |
36211-28040 |
US $279.55 |
||
|
36211D
|
36211D
90520-72001 Ring, Hole Snap (For Transfer Input Shaft)[08.1998 - 07.1999] LH166,176 T=1.45,MARK 1 |
90520-72001 |
US $1.05 |
||
|
36211D
|
36211D
90520-72002 Ring, Hole Snap (For Transfer Input Shaft)[08.1998 - 07.1999] LH166,176 T=1.50,MARK 2 |
90520-72002 |
US $1.75 |
||
|
36211D
|
36211D
90520-72003 Ring, Hole Snap (For Transfer Input Shaft)[08.1998 - 07.1999] LH166,176 T=1.55,MARK 3 |
90520-72003 |
US $1.75 |
||
|
36211D
|
36211D
90520-72004 Ring, Hole Snap (For Transfer Input Shaft)[08.1998 - 07.1999] LH166,176 T=1.60,MARK 4 |
90520-72004 |
US $1.75 |
||
|
36211D
|
36211D
90520-72005 Ring, Hole Snap (For Transfer Input Shaft)[08.1998 - 07.1999] LH166,176 T=1.65,MARK 5 |
90520-72005 |
US $1.75 |
||
|
36211E
|
36211E
90363-75001 Bearing (For Transfer Input Shaft)[08.1998 - 07.1999] LH166,176 |
90363-75001 |
from US $26.56 |
||
|
36211F
|
36211F
90520-99001 Ring, Shaft Snap (For Transfer Input Shaft)[08.1998 - 07.1999] LH166,176 |
90520-99001 |
US $1.49 |
||
|
36216A
|
36216A
36216-28010 Ring, Transfer Input Shaft Seal, No.1[08.1998 - 07.1999] LH166,176 |
36216-28010 |
US $3.35 |
||
|
36216B
|
36216B
36216-28020 Ring, Transfer Input Shaft Seal, No.2[08.1998 - 07.1999] LH166,176 |
36216-28020 |
US $0.87 |
||
|
36218C
|
36218C
36218-28030 Plug, Transfer Input Shaft[08.1998 - 07.1999] LH166,176 NO.1 |
36218-28030 |
US $3.79 |
||
|
36218C
|
36218C
36218-28040 Plug, Transfer Input Shaft[08.1998 - 07.1999] LH166,176 NO.2 |
36218-28040 |
US $6.12 |
||
|
36218D
|
36218D
96721-24028 Ring, O(For Oil Strainer)[08.1998 - 07.1999] LH166,176 |
96721-24028 |
from US $2.15 |
||
|
36218E
|
36218E
90521-38004 Ring, Hole Snap (For Transfer Input Shaft Plug)[08.1998 - 07.1999] LH166,176 |
90521-38004 |
US $1.31 |
||
|
36231
|
36231
36231-28040 Shaft, Transfer Output, Rear[08.1998 - 07.1999] LH166,176 |
36231-28040 |
US $84.45 |
||
|
36231E
|
36231E
90364-31007 Bearing, Needle Roller (For Transfer Output Shaft Front)[08.1998 - 07.1999] LH166,176 |
90364-31007 |
US $13.80 |
||
|
36231L
|
36231L
90520-71221 Ring, Shaft Snap (For Front Bearing)[08.1998 - 07.1999] LH166,176 T=1.65,ID=71.1 |
90520-71221 |
US $3.68 |
||
|
36231M
|
36231M
90363-32006 Bearing (For Transfer Counter Gear)[08.1998 - 07.1999] LH166,176 |
90363-32006 |
from US $20.27 |
||
|
36237
|
36237
36255-28020 Hub, Transfer Clutch[08.1998 - 07.1999] LH166,176 |
36255-28020 |
US $14.27 |
||
|
36270D
|
36270D
36270-28021 Gear Assy, Manual Transfer Planetary[08.1998 - 07.1999] LH166,176 |
36270-28021 |
US $394.87 |
||
|
36270E
|
36270E
90520-48002 Ring, Shaft Snap (For Manual Transfer Planetary Gear)[08.1998 - 07.1999] LH166,176 T=1.55,MARK A |
90520-48002 |
US $0.96 |
||
|
36270E
|
36270E
90520-48003 Ring, Shaft Snap (For Manual Transfer Planetary Gear)[08.1998 - 07.1999] LH166,176 T=1.60,MARK B |
90520-48003 |
US $1.46 |
||
|
36270E
|
36270E
90520-48004 Ring, Shaft Snap (For Manual Transfer Planetary Gear)[08.1998 - 07.1999] LH166,176 T=1.65,MARK C |
90520-48004 |
US $1.60 |
||
|
36270E
|
36270E
90520-48005 Ring, Shaft Snap (For Manual Transfer Planetary Gear)[08.1998 - 07.1999] LH166,176 T=1.70,MARK D |
90520-48005 |
US $1.60 |
||
|
36270E
|
36270E
90520-48006 Ring, Shaft Snap (For Manual Transfer Planetary Gear)[08.1998 - 07.1999] LH166,176 T=1.75,MARK E |
90520-48006 |
US $1.60 |
||
|
36273B
|
36273B
36273-28020 Gear, Manual Transfer Planetary Ring[08.1998 - 07.1999] LH166,176 |
36273-28020 |
US $51.40 |
||
|
36273C
|
36273C
90521-99108 Ring, Hole Snap (For Manual Transfer Planetary Ring Gear)[08.1998 - 07.1999] LH166,176 |
90521-99108 |
US $2.77 |
||
|
36278
|
36278
36278-28010 Washer, Manual Transfer Planetary Carrier[08.1998 - 07.1999] LH166,176 T=1.3,MARK A |
36278-28010 |
US $3.32 |
||
|
36278
|
36278
36278-28020 Washer, Manual Transfer Planetary Carrier[08.1998 - 07.1999] LH166,176 T=1.4,MARK B |
36278-28020 |
US $3.20 |
||
|
36278
|
36278
36278-28030 Washer, Manual Transfer Planetary Carrier[08.1998 - 07.1999] LH166,176 T=1.5,MARK C |
36278-28030 |
US $3.20 |
||
|
36278
|
36278
36278-28040 Washer, Manual Transfer Planetary Carrier[08.1998 - 07.1999] LH166,176 T=1.6,MARK D |
36278-28040 |
US $3.20 |
||
|
36278
|
36278
36278-28050 Washer, Manual Transfer Planetary Carrier[08.1998 - 07.1999] LH166,176 T=1.7,MARK E |
36278-28050 |
US $3.20 |
||
|
36278
|
36278
36278-28060 Washer, Manual Transfer Planetary Carrier[08.1998 - 07.1999] LH166,176 T=1.8,MARK F |
36278-28060 |
US $3.20 |
||
|
36291A
|
36291A
90364-40001 Bearing (For Transfer High Speed Output Gear)[08.1998 - 07.1999] LH166,176 |
90364-40001 |
US $23.26 |
||
|
36292
|
36292
36292-28032 Sprocket, Transfer Driven[08.1998 - 07.1999] LH166,176 |
36292-28032 |
US $96.10 |
||
|
36292A
|
36292A
90363-28004 Bearing, Radial Ball (For Transfer Input Gear)[08.1998 - 07.1999] LH166,176 REAR |
90363-28004 |
from US $20.79 |
||
|
36292A
|
36292A
90363-30064 Bearing (For Transfer Output Front Shaft)[08.1998 - 07.1999] LH166,176 FRONT |
90363-30064 |
US $21.14 |
||
|
36293
|
36293
36293-28021 Chain, Transfer Front Drive[08.1998 - 07.1999] LH166,176 |
36293-28021 |
from US $283.68 |
||
|
41330
|
41330
41330-26011 Coupling Assy, Center Differential Control[08.1998 - 01.1999] LH166,176 |
41330-26011 |
US $1,324.96 |
||
| replacement | |||||
|
41330
|
41330
41330-26012 Coupling Assy, Center Differential Control[08.1998 - 01.1999] LH166,176 |
41330-26012 |
US $887.58 |
||
|
41330
|
41330
41330-26012 Coupling Assy, Center Differential Control[01.1999 - 07.1999] LH166,176 |
41330-26012 |
US $887.58 |
||
