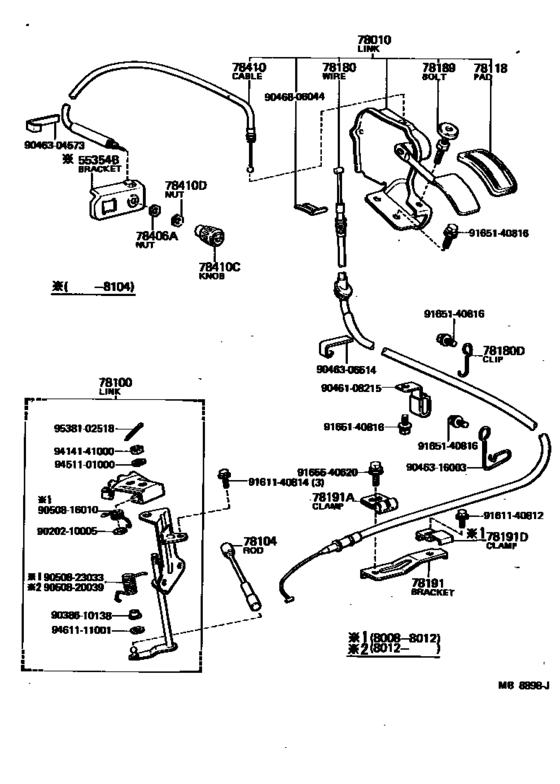

Accelerator Link ([01.1979 - ] (7901- )LH11,20,30..LHD) Diagram Toyota HIACE
- Year
- 1979 - 1982
- Sales region
- General
- Frame
- LH20
- body
- V
- ENGINE
- L
- DESTINATION
- GEN
- Model
- HIACE
- From
- 09.1979
- To
- 11.1982
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- Hiace
- Driver's Position
- LHD
- Building Condition
- CBU
- Truck Or Van
- V4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55354B
|
55354B
55353-95A01
Bracket, Throttle Cable
[01.1979 - 12.1979] LH11,20,30..LHD |
55353-95A01 |
— | ||
|
55354B
|
55354B
55353-95A03
Bracket, Throttle Cable
[12.1979 - 12.1980] LH11,20,30..LHD |
55353-95A03 |
— | ||
|
55354B
|
55354B
55354-95A02
Bracket, Throttle Cable
[12.1980 - 04.1981] LH11,20,30..LHD |
55354-95A02 |
— | ||
|
78010
|
78010
78180-95A06
Link, Accelerator
[01.1979 - 12.1980] LH11,20,30..LHD |
78180-95A06 |
— | ||
| replacements | |||||
|
78010
|
78010
55353-95A03
Bracket, Throttle Cable
[01.1979 - 12.1980] LH11,20,30..LHD |
55353-95A03 |
— | ||
|
78010
|
78010
78180-95A16
Wire Assy, Accelerator
[01.1979 - 12.1980] LH11,20,30..LHD |
78180-95A16 |
— | ||
|
78010
|
78010
78180-95A12 Link, AcceleratorACCELERATOR [12.1980 - 05.1981] LH11,20,30..LHD |
78180-95A12 |
US $321.78 |
||
| replacement | |||||
|
78010
|
78010
78180-95A18
Link, Accelerator
[12.1980 - 05.1981] LH11,20,30..LHD |
78180-95A18 |
— | ||
|
78010
|
78010
78180-95A18
Link, Accelerator
[05.1981 - 11.1982] LH11,20,30..LHD |
78180-95A18 |
— | ||
|
78100
|
78100
78100-95A00
Link Assy, Accelerator
[01.1979 - 12.1980] LH11,20,30 |
78100-95A00 |
— | ||
|
78100
|
78100
78100-95A02
Link Assy, Accelerator
[12.1980 - 11.1982] LH11,20,30 |
78100-95A02 |
— | ||
|
78104
|
78104
78108-95012
Rod Sub-Assy, Accelerator Connecting, No.2
[01.1979 - 12.1980] LH11,20,30 |
78108-95012 |
— | ||
|
78104
|
78104
78108-95A03 Rod Sub-Assy, Accelerator Connecting, No.2ACCELERATOR CONNECTING, NO.2 [12.1980 - 11.1982] LH11,20,30 |
78108-95A03 |
US $10.05 |
||
|
78118
|
78118
78119-95A01 Pad, Accelerator PedalACCELERATOR PEDAL [01.1978 - 12.1980] LH11,20,30,RH11,2#,3#,42 |
78119-95A01 |
US $9.76 |
||
| replacement | |||||
|
78118
|
78118
78119-95A02
Pad, Accelerator Pedal
[01.1978 - 12.1980] LH11,20,30,RH11,2#,3#,42 |
78119-95A02 |
— | ||
|
78118
|
78118
78119-95A02
Pad, Accelerator Pedal
[12.1980 - 11.1982] LH11,20,30,RH11,2#,3#,42 |
78119-95A02 |
— | ||
|
78180
|
78180
78150-95A08
Wire Assy, Accelerator
[01.1979 - 12.1980] LH11,20,30..LHD |
78150-95A08 |
— | ||
|
78180
|
78180
78150-95A13 Wire Assy, AcceleratorACCELERATOR [12.1980 - 11.1982] LH11,20,30..LHD |
78150-95A13 |
US $101.92 |
||
|
78189
|
78189
78107-95A01
Bolt, Accelerator Pedal Stopper
[01.1979 - 11.1982] LH11,20,30,RH11,2#,3#..LHD |
78107-95A01 |
— | ||
|
78191
|
78191
78109-95A01
Bracket, Accelerator Wire Support
[01.1979 - 12.1980] LH11,20,30 |
78109-95A01 |
— | ||
|
78191
|
78191
78109-95A02
Bracket, Accelerator Wire Support
[12.1980 - 11.1982] LH11,20,30 |
78109-95A02 |
— | ||
| replacement | |||||
|
78191
|
78191
78109-95J00 Bracket Sub-Assy, Accelerator Wire Clamp[12.1980 - 11.1982] LH11,20,30 |
78109-95J00 |
US $22.57 |
||
|
78191A
|
78191A
90461-10434 Clamp (For Accelerator Wire Set)[01.1979 - 11.1982] LH11,20,30 |
90461-10434 |
US $3.06 |
||
|
78191D
|
78191D
78183-95A09
Clamp, Accelerator Control Cable
[08.1980 - 12.1980] LH11,20,30 |
78183-95A09 |
— | ||
|
78406A
|
78406A
78413-95A01
Nut, Holder (For Throttle Button)
[01.1979 - 12.1980] LH11,20,30 |
78413-95A01 |
— | ||
|
78406A
|
78406A
78413-95A02 Nut, Holder (For Throttle Button)HOLDER (FOR THROTTLE BUTTON) [12.1980 - 11.1982] LH11,20,30 |
78413-95A02 |
US $5.24 |
||
|
78410
|
78410
78401-95A01
Cable Assy, Throttle Control
[01.1979 - 12.1980] LH11,20,30..LHD |
78401-95A01 |
— | ||
|
78410
|
78410
78401-95A03 Cable Assy, Throttle ControlTHROTTLE CONTROL [12.1980 - 11.1982] LH11,20,30..LHD |
78401-95A03 |
US $53.73 |
||
|
78410C
|
78410C
78402-95A00 Knob, Throttle CableTHROTTLE CABLE [01.1979 - 11.1982] LH11,20,30 |
78402-95A00 |
US $9.76 |
||
| replacement | |||||
|
78410C
|
78410C
78402-95400 Knob, Throttle Control[01.1979 - 11.1982] LH11,20,30 |
78402-95400 |
US $11.07 |
||
|
78410D
|
78410D
78413-95A01
Nut, Holder (For Throttle Button)
[01.1979 - 12.1979] LH11,20,30..LHD |
78413-95A01 |
— | ||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $3.84 |
||
|
9046108215
|
9046108215
90461-08215
New Genuine Part
|
90461-08215 |
— | ||
|
9046304573
|
9046304573
90463-04573
New Genuine Part
|
90463-04573 |
— | ||
|
9046306514
|
9046306514
90463-06514
New Genuine Part
|
90463-06514 |
— | ||
|
9046316003
|
9046316003
90463-16003 Clip (For Accelerator Wire) |
90463-16003 |
US $7.28 |
||
|
9046806044
|
9046806044
90468-06044
Clip (For Accelerator Wire)
|
90468-06044 |
— | ||
|
9050816010
|
9050816010
90508-16010 Spring, Torsion (For Accelerator Link) |
90508-16010 |
US $5.39 |
||
|
9050820039
|
9050820039
90508-20039 New Genuine Part |
90508-20039 |
US $4.51 |
||
|
9050823033
|
9050823033
90508-23033 New Genuine Part |
90508-23033 |
US $4.51 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $2.88 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.28 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
