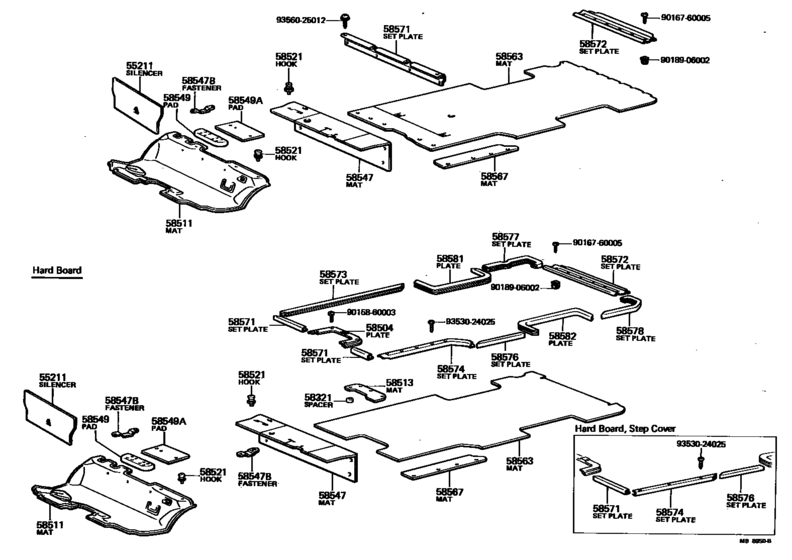

Floor Mat & Silencer Pad ([02.1977 - ] (7702- )RHD..V4D) Diagram Toyota HIACE
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- LH20
- body
- V
- ENGINE
- L
- DESTINATION
- GEN
- Model
- HIACE
- From
- 09.1979
- To
- 11.1982
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Building Condition
- CBU
- Truck Or Van
- V4D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58321
|
58321
58533-95A00
Spacer, Transmission Cover Mat
[02.1977 - 11.1982] LH20,30,RH20,22,3#,42..BUS,WG; RH30..PHL;LH30..06S..GEN;LH20,30,RH20,22,3#..03S HARD BOARD |
58533-95A00 |
— | ||
|
58504
|
58504
58504-95A00
Plate Sub-Assy, Transmission Cover Mat Set
[02.1977 - 11.1982] LH20,30,RH20,22,3#,42..BUS,WG; LH30..06S..GEN;RH30..V5D..06S..EUR;LH20,30,RH20,22,3#..03S HARD BOARD |
58504-95A00 |
— | ||
|
58511
|
58511
58501-95A13-05
Mat, Floor, Front
[01.1979 - 12.1979] LH20,30..RHD BEIGE,BEIGE |
58501-95A13-05 |
— | ||
|
58511
|
58511
58501-95A17 Mat, Floor, FrontFLOOR, FRONT [12.1979 - 11.1982] LH11,20,30..RHD..(ARL,EUR,GEN) W/HEATER OR BOOST BENTILATOR |
58501-95A17 |
US $297.02 |
||
| replacement | |||||
|
58511
|
58511
58501-95A26
Mat, Floor, Front
[12.1979 - 11.1982] LH11,20,30..RHD..(ARL,EUR,GEN) W/HEATER OR BOOST BENTILATOR |
58501-95A26 |
— | ||
|
58511
|
58511
58501-95A26
Mat, Floor, Front
[12.1979 - 11.1982] LH11,20,30..RHD..(GEN,IDN) W/O HEATER |
58501-95A26 |
— | ||
|
58513
|
58513
58530-95A00-05 Mat, Transmission CoverTRANSMISSION COVER [02.1977 - 12.1979] RH2#,3#..BUS BEIGE,BEIGE; LH20,RH2#,3#..03S;RH30..V5D..06S..EUR HARD BOARD,BEIGE,BEIGE |
58530-95A00-05 |
US $33.20 |
||
| replacement | |||||
|
58513
|
58513
58530-95A00-E0
Mat, Transmission Cover
[02.1977 - 12.1979] RH2#,3#..BUS BEIGE,BEIGE; LH20,RH2#,3#..03S;RH30..V5D..06S..EUR HARD BOARD,BEIGE,BEIGE |
58530-95A00-E0 |
— | ||
|
58513
|
58513
58530-95A03-16 Mat, Transmission CoverTRANSMISSION COVER [12.1979 - 11.1982] LH20,30,RH20,22,3#..BUS BROWN,BROWN; RH32..LHD..V5D..GEN;LH20,30,RH20,22,3#..03S HARD BOARD,BROWN,BROWN |
58530-95A03-16 |
US $27.37 |
||
| replacement | |||||
|
58513
|
58513
58530-95A03-E0
Mat, Transmission Cover
[12.1979 - 11.1982] LH20,30,RH20,22,3#..BUS BROWN,BROWN; RH32..LHD..V5D..GEN;LH20,30,RH20,22,3#..03S HARD BOARD,BROWN,BROWN |
58530-95A03-E0 |
— | ||
|
58521
|
58521
90530-06001 Fastener, Hook[02.1977 - 11.1982] LH11,20,30,RH11,2#,3#,42 |
90530-06001 |
US $1.97 |
||
|
58547
|
58547
58505-95A24
Mat, Header Panel, Center
[01.1979 - 12.1979] LH20,30..V |
58505-95A24 |
— | ||
|
58547
|
58547
58505-95A37
Mat, Header Panel, Center
[12.1979 - 12.1980] LH20,30..V |
58505-95A37 |
— | ||
|
58547
|
58547
58505-95A65
Mat, Header Panel, Center
[12.1980 - 11.1982] LH20,30..V |
58505-95A65 |
— | ||
|
58549
|
58549
58549-95A00-05 Pad, Engine Center Service Hole Cover Hinge, FrontENGINE CENTER SERVICE HOLE COVER HINGE, FRONT [01.1979 - 12.1979] LH20,30,RH2#,3#..BUS,V BEIGE,BEIGE |
58549-95A00-05 |
US $7.72 |
||
| replacement | |||||
|
58549
|
58549
58549-95A02-05
Pad, Engine Center Service Hole Cover Hinge, Front
[01.1979 - 12.1979] LH20,30,RH2#,3#..BUS,V BEIGE,BEIGE |
58549-95A02-05 |
— | ||
|
58549
|
58549
58549-95A02-06
Pad, Engine Center Service Hole Cover Hinge, Front
[01.1979 - 12.1979] LH11,20,30..03S,06S BROWN,BROWN |
58549-95A02-06 |
— | ||
|
58549
|
58549
58549-95A04
Pad, Engine Center Service Hole Cover Hinge, Front
[12.1979 - 12.1980] LH11,20,30,RH11,20,22,3#,42 |
58549-95A04 |
— | ||
|
58549A
|
58549A
58559-95A00-06
Pad, Engine Center Service Hole Cover Hinge, Rear
[01.1979 - 12.1979] LH11,20,30 BROWN |
58559-95A00-06 |
— | ||
|
58549A
|
58549A
58559-95A04
Pad, Engine Center Service Hole Cover Hinge, Rear
[12.1979 - 11.1982] LH11,20,30,RH11,20,22,3#,42 |
58559-95A04 |
— | ||
|
58563
|
58563
58503-95A31-05 Mat, Rear FloorREAR FLOOR [02.1977 - 12.1979] RH2#..BUS BEIGE,BEIGE; LH20,RH2#..03S HARD BOARD,BEIGE,BEIGE |
58503-95A31-05 |
US $1,121.12 |
||
| replacement | |||||
|
58563
|
58563
58503-95A31-E0
Mat, Rear Floor
[02.1977 - 12.1979] RH2#..BUS BEIGE,BEIGE; LH20,RH2#..03S HARD BOARD,BEIGE,BEIGE |
58503-95A31-E0 |
— | ||
|
58563
|
58563
58503-95A58-16 Mat, Rear FloorREAR FLOOR [12.1979 - 11.1982] LH20,RH20,22..03S HARD BOARD,BROWN,BROWN |
58503-95A58-16 |
US $1,129.86 |
||
| replacement | |||||
|
58563
|
58563
58503-95A58-E0
Mat, Rear Floor
[12.1979 - 11.1982] LH20,RH20,22..03S HARD BOARD,BROWN,BROWN |
58503-95A58-E0 |
— | ||
|
58563
|
58563
58503-95A85-05
Mat, Rear Floor
[07.1979 - 12.1979] LH20..RHD..V4D BEIGE,BEIGE |
58503-95A85-05 |
— | ||
|
58571
|
58571
58634-95A00 Set Plate, Rear Floor Mat, FrontREAR FLOOR MAT, FRONT [02.1977 - 12.1979] RH2#,3#..RHD..BUS LH; LH20,RH2#..RHD..V4D..03S LH,HARD BOARD; LH20,RH2#..V5D..03S LH,HARD BOARD |
58634-95A00 |
US $13.98 |
||
| replacement | |||||
|
58571
|
58571
58634-95A05
Set Plate, Rear Floor Mat, Front
[02.1977 - 12.1979] RH2#,3#..RHD..BUS LH; LH20,RH2#..RHD..V4D..03S LH,HARD BOARD; LH20,RH2#..V5D..03S LH,HARD BOARD |
58634-95A05 |
— | ||
|
58571
|
58571
58634-95A04
Set Plate, Rear Floor Mat, Front
[12.1979 - 11.1982] LH20,30,RH20,22,3#..RHD..BUS LH; LH20,30,RH20,22,3#..RHD..V4D..03S LH,HARD BOARD; RH32..LHD..V5D..GEN;LH20,30,RH20,22,3#..V5D..03S LH,HARD BOARD |
58634-95A04 |
— | ||
|
58571
|
58571
58635-95A00 Set Plate, Rear Floor Mat, FrontREAR FLOOR MAT, FRONT [02.1977 - 12.1979] RH2#,3#..RHD..BUS RH; LH20,RH2#,3#..RHD..V4D..03S RH,HARD BOARD |
58635-95A00 |
US $12.96 |
||
| replacement | |||||
|
58571
|
58571
58635-95A03
Set Plate, Rear Floor Mat, Front
[02.1977 - 12.1979] RH2#,3#..RHD..BUS RH; LH20,RH2#,3#..RHD..V4D..03S RH,HARD BOARD |
58635-95A03 |
— | ||
|
58571
|
58571
58635-95A02 Set Plate, Rear Floor Mat, FrontREAR FLOOR MAT, FRONT [02.1978 - 12.1979] LH20,RH2#,3#..03S LH,HARD BOARD,STEP COVER |
58635-95A02 |
US $13.83 |
||
| replacement | |||||
|
58571
|
58571
58635-95A04
Set Plate, Rear Floor Mat, Front
[02.1978 - 12.1979] LH20,RH2#,3#..03S LH,HARD BOARD,STEP COVER |
58635-95A04 |
— | ||
|
58571
|
58571
58635-95A03
Set Plate, Rear Floor Mat, Front
[12.1979 - 11.1982] LH20,30,RH20,22,3#..RHD..BUS RH; LH20,30,RH20,22,3#..RHD..V4D..03S RH,HARD BOARD; LH20,30,RH20,22,3#..03S RH,HARD BOARD,STEP COVER |
58635-95A03 |
— | ||
|
58571
|
58571
58635-95A04
Set Plate, Rear Floor Mat, Front
[12.1979 - 11.1982] LH20,30,RH20,22,3#..LHD..BUS LH; LH20,30,RH20,32..LHD..V4D..03S LH,HARD BOARD; LH20,30,RH20,22,3#..03S LH,HARD BOARD,STEP COVER |
58635-95A04 |
— | ||
|
58572
|
58572
58633-95A00
Set Plate, Rear Floor Mat, Rear
[02.1977 - 11.1982] LH20,30,RH20,22,3#..BUS,WG; RH30..PHL;LH30..06S..GEN;LH20,30,RH20,22,3#..03S HARD BOARD |
58633-95A00 |
— | ||
|
58572
|
58572
58633-95A01
Set Plate, Rear Floor Mat, Rear
[02.1977 - 11.1982] LH20,30,RH20,22,3#..V..(ARL,EUR,GEN) |
58633-95A01 |
— | ||
|
58573
|
58573
58636-95A00 Set Plate, Rear Floor Mat Side, Front RhREAR FLOOR MAT SIDE, FRONT RH [02.1977 - 12.1979] RH2#..RHD..BUS; LH20,RH2#..RHD..V4D..03S HARD BOARD |
58636-95A00 |
US $24.46 |
||
| replacement | |||||
|
58573
|
58573
58636-95A05
Set Plate, Rear Floor Mat Side, Front Rh
[02.1977 - 12.1979] RH2#..RHD..BUS; LH20,RH2#..RHD..V4D..03S HARD BOARD |
58636-95A05 |
— | ||
|
58573
|
58573
58636-95A05
Set Plate, Rear Floor Mat Side, Front Rh
[12.1979 - 11.1982] LH20,RH20,22..RHD..BUS; LH20,RH20,22..RHD..V4D..03S HARD BOARD |
58636-95A05 |
— | ||
|
58574
|
58574
58632-95A00 Set Plate, Rear Floor Mat Side, Front LhREAR FLOOR MAT SIDE, FRONT LH [02.1977 - 11.1982] LH20,30,RH20,22,3#,42..RHD..(BUS,WG); RH30..PHL;LH30..06S..GEN;LH20,30,RH20,22,3#..V5D..03S HARD BOARD; LH20,30,RH20,22,3#..RHD..V4D..03S HARD BOARD |
58632-95A00 |
US $36.40 |
||
| replacement | |||||
|
58574
|
58574
58632-95A01
Set Plate, Rear Floor Mat Side, Front Lh
[02.1977 - 11.1982] LH20,30,RH20,22,3#,42..RHD..(BUS,WG); RH30..PHL;LH30..06S..GEN;LH20,30,RH20,22,3#..V5D..03S HARD BOARD; LH20,30,RH20,22,3#..RHD..V4D..03S HARD BOARD |
58632-95A01 |
— | ||
|
58574
|
58574
58645-95A00
Set Plate, Rear Floor Mat Side, Front Rh
[02.1978 - 11.1982] LH20,30,RH20,22,3#..RHD..V4D..03S HARD BOARD,STEP COVER; LH20,30,RH20,22,3#..V5D..03S HARD BOARD,STEP COVER |
58645-95A00 |
— | ||
|
58576
|
58576
58639-95A00 Set Plate, Rear Floor Mat Side, Center RhREAR FLOOR MAT SIDE, CENTER RH [02.1977 - 12.1979] RH2#..RHD..BUS; LH20,RH2#..RHD..V4D..03S HARD BOARD; LH20,RH2#..V5D..03S HARD BOARD |
58639-95A00 |
US $11.50 |
||
| replacement | |||||
|
58576
|
58576
58639-95A07
Set Plate, Rear Floor Mat Side, Center Rh
[02.1977 - 12.1979] RH2#..RHD..BUS; LH20,RH2#..RHD..V4D..03S HARD BOARD; LH20,RH2#..V5D..03S HARD BOARD |
58639-95A07 |
— | ||
|
58576
|
58576
58639-95A03 Set Plate, Rear Floor Mat Side, Center RhREAR FLOOR MAT SIDE, CENTER RH [02.1978 - 12.1979] LH20,RH2#..RHD..V4D..03S HARD BOARD,STEP COVER |
58639-95A03 |
US $13.98 |
||
| replacement | |||||
|
58576
|
58576
58639-95A09
Set Plate, Rear Floor Mat Side, Center Rh
[02.1978 - 12.1979] LH20,RH2#..RHD..V4D..03S HARD BOARD,STEP COVER |
58639-95A09 |
— | ||
|
58576
|
58576
58639-95A07
Set Plate, Rear Floor Mat Side, Center Rh
[12.1979 - 11.1982] LH20,RH20,22..RHD..BUS; LH20,RH20,22..RHD..V4D..03S HARD BOARD; LH20,RH20,22..V5D..03S HARD BOARD |
58639-95A07 |
— | ||
|
58576
|
58576
58639-95A09
Set Plate, Rear Floor Mat Side, Center Rh
[12.1979 - 11.1982] LH20,RH20,22..RHD..V4D..03S HARD BOARD,STEP COVER |
58639-95A09 |
— | ||
|
58577
|
58577
58641-95A00 Set Plate, Rear Floor Mat Side, Rear RhREAR FLOOR MAT SIDE, REAR RH [02.1977 - 12.1979] RH2#..BUS; LH20,RH2#..03S HARD BOARD |
58641-95A00 |
US $33.20 |
||
| replacement | |||||
|
58577
|
58577
58641-95A03
Set Plate, Rear Floor Mat Side, Rear Rh
[02.1977 - 12.1979] RH2#..BUS; LH20,RH2#..03S HARD BOARD |
58641-95A03 |
— | ||
|
58577
|
58577
58641-95A03
Set Plate, Rear Floor Mat Side, Rear Rh
[12.1979 - 11.1982] LH20,RH20,22..BUS; LH20,RH20,22..03S HARD BOARD |
58641-95A03 |
— | ||
|
58578
|
58578
58642-95A00 Set Plate, Rear Floor Mat Side, Rear LhREAR FLOOR MAT SIDE, REAR LH [02.1977 - 12.1979] RH2#..BUS; LH20,RH2#..03S HARD BOARD |
58642-95A00 |
US $31.60 |
||
| replacement | |||||
|
58578
|
58578
58642-95A03
Set Plate, Rear Floor Mat Side, Rear Lh
[02.1977 - 12.1979] RH2#..BUS; LH20,RH2#..03S HARD BOARD |
58642-95A03 |
— | ||
|
58578
|
58578
58642-95A03
Set Plate, Rear Floor Mat Side, Rear Lh
[12.1979 - 11.1982] LH20,RH20,22..BUS; LH20,RH20,22..03S HARD BOARD |
58642-95A03 |
— | ||
|
58581
|
58581
58637-95A00 Plate, Wheel House Mat Set, RhWHEEL HOUSE MAT SET, RH [01.1978 - 12.1979] RH30..PHL;LH20,RH2#,3#..03S HARD BOARD |
58637-95A00 |
US $32.61 |
||
| replacement | |||||
|
58581
|
58581
58637-95A04
Plate, Wheel House Mat Set, Rh
[01.1978 - 12.1979] RH30..PHL;LH20,RH2#,3#..03S HARD BOARD |
58637-95A04 |
— | ||
|
58581
|
58581
58637-95A04
Plate, Wheel House Mat Set, Rh
[12.1979 - 11.1982] LH20,30,RH20,22,3#..BUS; RH32..LHD..V5D..GEN;LH20,30,RH20,22,3#..03S HARD BOARD |
58637-95A04 |
— | ||
|
58582
|
58582
58637-95A00 Plate, Wheel House Mat Set, RhWHEEL HOUSE MAT SET, RH [01.1978 - 12.1979] RH30..PHL;LH20,RH2#,3#..03S HARD BOARD |
58637-95A00 |
US $32.61 |
||
| replacement | |||||
|
58582
|
58582
58637-95A04
Plate, Wheel House Mat Set, Rh
[01.1978 - 12.1979] RH30..PHL;LH20,RH2#,3#..03S HARD BOARD |
58637-95A04 |
— | ||
|
58582
|
58582
58637-95A04
Plate, Wheel House Mat Set, Rh
[12.1979 - 11.1982] LH20,30,RH20,22,3#..BUS; LH20,30,RH20,22,3#..03S;RH20..LHD..V5D..06S..GEN HARD BOARD |
58637-95A04 |
— | ||
|
9015860003
|
9015860003
90158-60003
New Genuine Part
|
90158-60003 |
— | ||
|
9016760005
|
9016760005
90167-60005 Screw, Pillar Joint SettingPILLAR JOINT SETTING |
90167-60005 |
US $1.89 |
||
| replacement | |||||
|
9016760005
|
9016760005
93510-16012 Screw, Pillar Joint Setting |
93510-16012 |
US $2.33 |
||
|
9018906002
|
9018906002
90189-06002 GROMMET, SCREW |
90189-06002 |
US $2.87 |
||
|
9353024025
|
9353024025
93530-24025
New Genuine Part
|
93530-24025 |
— | ||
|
9356025012
|
9356025012
93560-25012 New Genuine Part |
93560-25012 |
US $1.60 |
||
