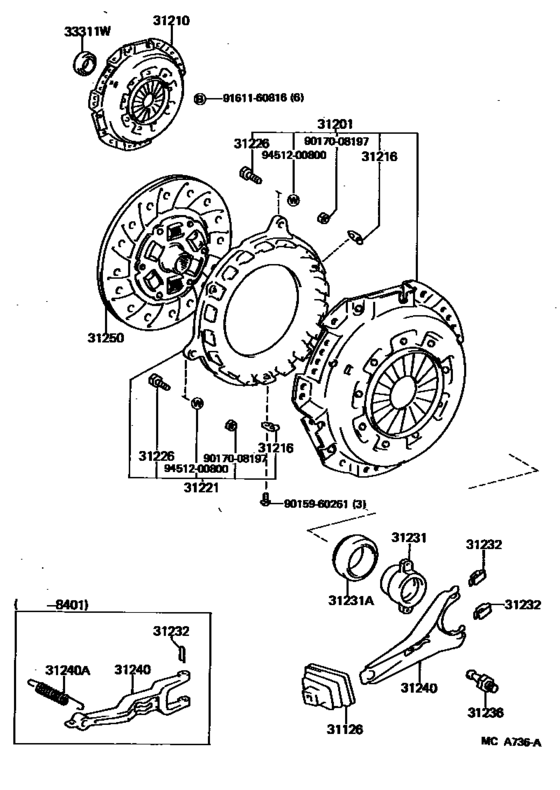

Clutch & Release Fork ([05.1982 - ] (8205- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- LH24
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE QUICK DELIVERY
- From
- 05.1982
- To
- 07.1985
- Vehicle Model
- Hiace Quick Delivery
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[01.1984 - 07.1985] LH24 |
31126-20070 |
from US $14.70 |
||
|
31126
|
31126
31126-25021
Boot, Clutch Release Fork
[05.1982 - 01.1984] LH24 |
31126-25021 |
— | ||
|
31201
|
31201
31201-29085
Cover Sub-Assy, Clutch
[05.1982 - 07.1985] LH24 |
31201-29085 |
— | ||
| replacement | |||||
|
31201
|
31201
31201-26010
Cover Sub-Assy, Clutch
[05.1982 - 07.1985] LH24 |
31201-26010 |
— | ||
|
31210
|
31210
31210-36029 Cover Assy, Clutch[05.1982 - 07.1985] LH24 |
31210-36029 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-30221 Cover Assy, Clutch[05.1982 - 07.1985] LH24 |
31210-30221 |
US $199.47 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[05.1982 - 07.1985] LH24 |
31216-30010 |
— | ||
|
31221
|
31221
31221-39056 Spring, Clutch Retracting[05.1982 - 07.1985] LH24 |
31221-39056 |
US $80.08 |
||
| replacement | |||||
|
31221
|
31221
31221-36025
Spring, Clutch Retracting
[05.1982 - 07.1985] LH24 |
31221-36025 |
— | ||
|
31226
|
31226
90101-08022
Bolt, Clutch Pressure Plate
[05.1982 - 07.1985] LH24 |
90101-08022 |
— | ||
|
31231
|
31231
31231-20090 Hub, Clutch Release Bearing[01.1984 - 07.1985] LH24 |
31231-20090 |
US $23.76 |
||
|
31231
|
31231
31231-30080
Hub, Clutch Release Bearing
[05.1982 - 01.1984] LH24 |
31231-30080 |
— | ||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[11.1982 - 07.1985] LH24 |
90363-40022 |
from US $41.80 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[01.1984 - 07.1985] LH24 |
31232-22010 |
from US $0.82 |
||
|
31232
|
31232
31232-30020 Clip Or Spring, Release Bearing Hub[05.1982 - 01.1984] LH24 |
31232-30020 |
US $3.06 |
||
|
31236
|
31236
31236-25010 Ball, Release Fork[05.1982 - 01.1984] LH24 |
31236-25010 |
US $10.77 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[01.1984 - 07.1985] LH24 |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20090 Fork Sub-Assy, Clutch Release[01.1984 - 07.1985] LH24 |
31204-20090 |
US $34.35 |
||
|
31240
|
31240
31204-26010
Fork Assy, Clutch Release
[05.1982 - 01.1984] LH24 |
31204-26010 |
— | ||
|
31240A
|
31240A
90506-16004 Spring, Tension(For Clutch Release Fork Return)[05.1982 - 01.1984] LH24 |
90506-16004 |
US $3.36 |
||
|
31250
|
31250
31250-26050
Disc Assy, Clutch
[05.1982 - 12.1984] LH24 |
31250-26050 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [05.1982 - 12.1984] LH24 |
31250-35410 |
from US $253.34 |
||
|
31250
|
31250
31250-26051 Disc Assy, Clutch[12.1984 - 07.1985] LH24 |
31250-26051 |
US $149.97 |
||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [12.1984 - 07.1985] LH24 |
31250-35410 |
from US $253.34 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[05.1982 - 07.1985] LH24 |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[05.1982 - 07.1985] LH24 |
90363-12024 |
from US $5.91 |
||
|
9015960261
|
9015960261
90159-60261 New Genuine Part |
90159-60261 |
US $1.46 |
||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
