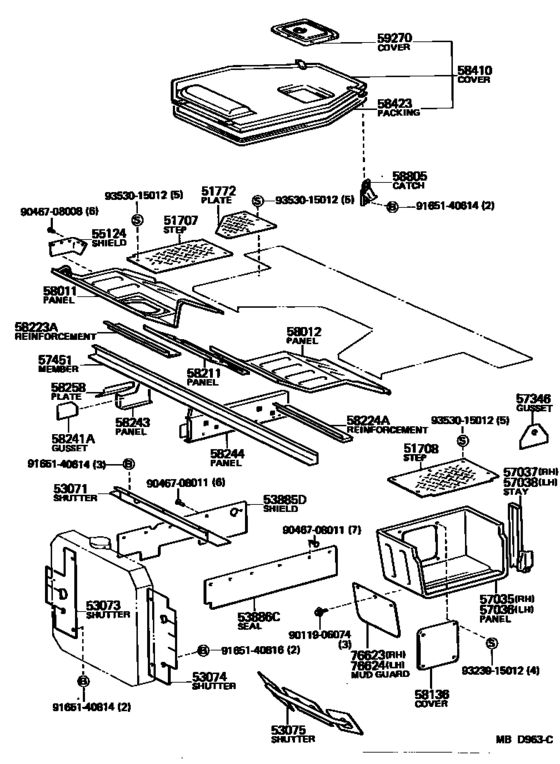

Front Floor Panel & Front Floor Member ([05.1982 - ] (8205- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- LH24
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE QUICK DELIVERY
- From
- 05.1982
- To
- 07.1985
- Vehicle Model
- Hiace Quick Delivery
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51707
|
51707
67913-90D00
Step Sub-Assy, Rh
[05.1982 - 07.1983] LH24 |
67913-90D00 |
— | ||
|
51707
|
51707
67913-90D01 Step Sub-Assy, Rh[07.1983 - 01.1985] LH24 |
67913-90D01 |
US $129.58 |
||
| replacement | |||||
|
51707
|
51707
67914-90D01
Step Sub-Assy, Lh
[07.1983 - 01.1985] LH24 |
67914-90D01 |
— | ||
|
51707
|
51707
67913-90D02
Step Sub-Assy, Rh
[01.1985 - 07.1985] LH24 |
67913-90D02 |
— | ||
|
51708
|
51708
67913-90D00
Step Sub-Assy, Rh
[05.1982 - 07.1983] LH24 |
67913-90D00 |
— | ||
|
51708
|
51708
67913-90D01 Step Sub-Assy, Rh[07.1983 - 01.1985] LH24 |
67913-90D01 |
US $129.58 |
||
| replacement | |||||
|
51708
|
51708
67914-90D01
Step Sub-Assy, Lh
[07.1983 - 01.1985] LH24 |
67914-90D01 |
— | ||
|
51708
|
51708
67914-90D01
Step Sub-Assy, Lh
[01.1985 - 07.1985] LH24 |
67914-90D01 |
— | ||
|
51772
|
51772
57359-90D00
Plate, Step
[05.1982 - 12.1982] LH24 |
57359-90D00 |
— | ||
|
53071
|
53071
53071-90D00
Shutter Sub-Assy, Hot Air, Upper
[05.1982 - 11.1982] LH24 |
53071-90D00 |
— | ||
|
53071
|
53071
53071-90D01 Shutter Sub-Assy, Hot Air, Upper[11.1982 - 01.1984] LH24 |
53071-90D01 |
US $168.90 |
||
| replacement | |||||
|
53071
|
53071
53071-90D02 Shutter Sub-Assy, Hot Air, Upper[11.1982 - 01.1984] LH24 |
53071-90D02 |
US $170.35 |
||
|
53071
|
53071
53071-90D02 Shutter Sub-Assy, Hot Air, Upper[01.1984 - 07.1985] LH24 |
53071-90D02 |
US $170.35 |
||
|
53073
|
53073
53073-90D00
Shutter Sub-Assy, Hot Air Side, Rh
[05.1982 - 07.1985] LH24 |
53073-90D00 |
— | ||
|
53074
|
53074
53074-90D00
Shutter Sub-Assy, Hot Air Side, Lh
[05.1982 - 07.1985] LH24 |
53074-90D00 |
— | ||
|
53075
|
53075
53075-95A00
Shutter Sub-Assy, Hot Air, Lower
[05.1982 - 07.1985] LH24 |
53075-95A00 |
— | ||
|
53885D
|
53885D
53885-90D00
Shield, Side Floor Apron, Rear
[05.1982 - 07.1982] LH24 L=739 |
53885-90D00 |
— | ||
|
53885D
|
53885D
53885-90D02
Shield, Side Floor Apron, Rear
[07.1982 - 07.1985] LH24 L=753 |
53885-90D02 |
— | ||
|
53886C
|
53886C
53886-90D00 Seal, Fender Apron Mudguard, Lh[05.1982 - 01.1984] LH24 |
53886-90D00 |
US $43.53 |
||
| replacement | |||||
|
53886C
|
53886C
53886-90D04
Seal, Fender Apron Mudguard, Lh
[05.1982 - 01.1984] LH24 |
53886-90D04 |
— | ||
|
53886C
|
53886C
53886-90D01 Seal, Fender Apron Mudguard, Lh[01.1984 - 03.1984] LH24 |
53886-90D01 |
US $43.53 |
||
| replacement | |||||
|
53886C
|
53886C
53886-90D04
Seal, Fender Apron Mudguard, Lh
[01.1984 - 03.1984] LH24 |
53886-90D04 |
— | ||
|
53886C
|
53886C
53886-90D02 Seal, Fender Apron Mudguard, Lh[03.1984 - 07.1985] LH24 |
53886-90D02 |
US $43.53 |
||
| replacement | |||||
|
53886C
|
53886C
53886-90D04
Seal, Fender Apron Mudguard, Lh
[03.1984 - 07.1985] LH24 |
53886-90D04 |
— | ||
|
55124
|
55124
55124-90D00
Shield, Steering Support
[05.1982 - 07.1985] LH24 |
55124-90D00 |
— | ||
|
57035
|
57035
57035-90D00
Panel Sub-Assy, Front Step, Rh
[05.1982 - 10.1983] LH24 |
57035-90D00 |
— | ||
|
57035
|
57035
57035-90D01
Panel Sub-Assy, Front Step, Rh
[05.1982 - 10.1983] LH24 W/COOLER |
57035-90D01 |
— | ||
|
57035
|
57035
57035-90D02
Panel Sub-Assy, Front Step, Rh
[10.1983 - 07.1985] LH24 |
57035-90D02 |
— | ||
|
57035
|
57035
57035-90D03
Panel Sub-Assy, Front Step, Rh
[10.1983 - 07.1985] LH24 W/COOLER |
57035-90D03 |
— | ||
|
57036
|
57036
57036-90D00
Panel Sub-Assy, Front Step, Lh
[05.1982 - 07.1985] LH24 |
57036-90D00 |
— | ||
|
57036
|
57036
57036-90D01
Panel Sub-Assy, Front Step, Lh
[05.1982 - 07.1985] LH24 W/SUB SEAT |
57036-90D01 |
— | ||
|
57037
|
57037
57037-90D00
Stay Sub-Assy, Front Step, Rh
[05.1982 - 09.1982] LH24 |
57037-90D00 |
— | ||
|
57037
|
57037
57379-90D00
Stay Sub-Assy, Front Step, Rh
[09.1982 - 07.1985] LH24 |
57379-90D00 |
— | ||
|
57038
|
57038
57038-90D00
Stay Sub-Assy, Front Step, Lh
[05.1982 - 09.1982] LH24 |
57038-90D00 |
— | ||
|
57038
|
57038
57389-90D00
Stay Sub-Assy, Front Step, Lh
[09.1982 - 07.1985] LH24 |
57389-90D00 |
— | ||
|
57346
|
57346
61582-90D00 Gusset, Front Step, Rear Rh[05.1982 - 07.1985] LH24 |
61582-90D00 |
US $12.67 |
||
|
57451
|
57451
57408-90D01
Member, Front Floor Cross
[05.1982 - 01.1984] LH24 |
57408-90D01 |
— | ||
|
57451
|
57451
57408-90D02
Member, Front Floor Cross
[01.1984 - 07.1985] LH24 |
57408-90D02 |
— | ||
|
58011
|
58011
58011-90D01
Panel Sub-Assy, Front Floor Side, Rh
[05.1982 - 01.1984] LH24 |
58011-90D01 |
— | ||
|
58011
|
58011
58011-90D02
Panel Sub-Assy, Front Floor Side, Rh
[01.1984 - 07.1985] LH24 |
58011-90D02 |
— | ||
|
58012
|
58012
58012-90D00 Panel Sub-Assy, Front Floor Side, Lh[05.1982 - 07.1985] LH24 W/ASSISTANT SEAT |
58012-90D00 |
US $151.42 |
||
|
58012
|
58012
58012-90D02
Panel Sub-Assy, Front Floor Side, Lh
[05.1982 - 07.1985] LH24 |
58012-90D02 |
— | ||
|
58136
|
58136
61679-90701 Cover, Front Floor Hole[05.1982 - 07.1985] LH24 |
61679-90701 |
US $31.74 |
||
| replacement | |||||
|
58136
|
58136
57399-25010 Cover, Front Floor Hole[05.1982 - 07.1985] LH24 |
57399-25010 |
US $27.81 |
||
|
58211
|
58211
58008-90D01 Panel, Front Floor[05.1982 - 07.1985] LH24 |
58008-90D01 |
US $80.08 |
||
| replacement | |||||
|
58211
|
58211
58008-90D02
Panel, Front Floor
[05.1982 - 07.1985] LH24 |
58008-90D02 |
— | ||
|
58211
|
58211
58008-90D02
Panel, Front Floor
[05.1982 - 07.1985] LH24 W/RADIATOR SHUTTER |
58008-90D02 |
— | ||
|
58223A
|
58223A
58027-90D00
Reinforcement, Floor Side Panel, Rh
[05.1982 - 07.1985] LH24 |
58027-90D00 |
— | ||
|
58224A
|
58224A
58028-90D00
Reinforcement, Floor Side Panel, Lh
[05.1982 - 07.1985] LH24 |
58028-90D00 |
— | ||
|
58241A
|
58241A
53787-90D00
Gusset, Floor Panel, Front Rh
[05.1982 - 07.1985] LH24 |
53787-90D00 |
— | ||
|
58243
|
58243
58132-90D00
Panel, Rear Floor Side, Rh
[05.1982 - 07.1985] LH24 |
58132-90D00 |
— | ||
|
58244
|
58244
58096-90D00
Panel, Rear Floor Side, Lh
[05.1982 - 03.1984] LH24 |
58096-90D00 |
— | ||
|
58244
|
58244
58096-90D01
Panel, Rear Floor Side, Lh
[03.1984 - 07.1985] LH24 |
58096-90D01 |
— | ||
|
58258
|
58258
58258-90D00
Plate, Water Guard, No.1
[05.1982 - 07.1985] LH24 |
58258-90D00 |
— | ||
|
58410
|
58410
58720-90D00
Cover, Engine Service Hole
[05.1982 - 04.1983] LH24 |
58720-90D00 |
— | ||
| replacement | |||||
|
58410
|
58410
58720-90D02
Cover, Engine Service Hole
[05.1982 - 04.1983] LH24 |
58720-90D02 |
— | ||
|
58410
|
58410
58720-90D02
Cover, Engine Service Hole
[04.1983 - 01.1984] LH24 |
58720-90D02 |
— | ||
|
58410
|
58410
58720-90D04
Cover, Engine Service Hole
[01.1984 - 07.1985] LH24 |
58720-90D04 |
— | ||
|
58423
|
58423
58733-90D00
Packing, Engine Service Hole Cover, No.2
[05.1982 - 07.1985] LH24 |
58733-90D00 |
— | ||
|
58805
|
58805
58804-90740 Catch Sub-Assy, Engine Service Hole Cover[05.1982 - 07.1985] LH24 |
58804-90740 |
US $41.64 |
||
| replacement | |||||
|
58805
|
58805
58804-90740-B0 Catch Sub-Assy, Engine Service Hole Cover[05.1982 - 07.1985] LH24 |
58804-90740-B0 |
US $29.99 |
||
|
59270
|
59270
59270-90D01
Cover Assy, Inspection Hole
[05.1982 - 07.1985] LH24 |
59270-90D01 |
— | ||
|
76623
|
76623
76621-90D00
Mudguard, Front Body, Rear Rh
[05.1982 - 07.1985] LH24 |
76621-90D00 |
— | ||
|
76624
|
76624
76621-90D00
Mudguard, Front Body, Rear Rh
[05.1982 - 07.1985] LH24 |
76621-90D00 |
— | ||
|
9011906074
|
9011906074
90119-06074 Bolt |
90119-06074 |
US $1.92 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.36 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.35 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $3.60 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9323915012
|
9323915012
93239-15012 New Genuine Part |
93239-15012 |
US $0.96 |
||
|
9353015012
|
9353015012
93530-15012 New Genuine Part |
93530-15012 |
US $1.12 |
||
