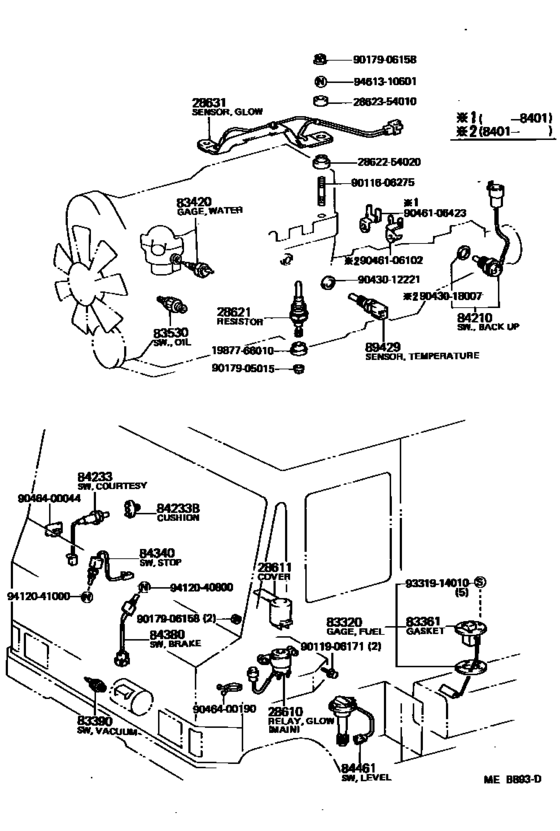

Switch & Relay & Computer ([05.1982 - ] (8205- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- LH24
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE QUICK DELIVERY
- From
- 05.1982
- To
- 07.1985
- Vehicle Model
- Hiace Quick Delivery
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28610
|
28610
28610-54150
Relay Assy, Glow Plug
[05.1982 - 07.1985] L..LH24 SUB |
28610-54150 |
— | ||
|
28610
|
28610
28610-54190
Relay Assy, Glow Plug
[05.1982 - 07.1985] L..LH24 MAIN |
28610-54190 |
— | ||
|
28611
|
28611
28611-54020 Cover, Glow Plug Relay[05.1982 - 07.1985] L..LH24 |
28611-54020 |
US $15.87 |
||
|
28621
|
28621
28621-54031
Resistor, Glow Plug
[05.1982 - 07.1985] L..LH24 |
28621-54031 |
— | ||
| replacement | |||||
|
28621
|
28621
28621-64011 Resistor, Glow Plug[05.1982 - 07.1985] L..LH24 |
28621-64011 |
US $181.71 |
||
|
28631
|
28631
28631-54040
Sensor, Glow Plug Current
[05.1982 - 07.1985] L..LH24 |
28631-54040 |
— | ||
|
83320
|
83320
83320-29345
Gage Assy, Fuel Sender
[05.1982 - 07.1985] LH24 |
83320-29345 |
— | ||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[05.1982 - 07.1985] LH24 |
83361-20030 |
from US $5.12 |
||
|
83390
|
83390
83390-30020
Switch Assy, Vacuum Warning
[05.1982 - 07.1985] LH24 |
83390-30020 |
— | ||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[05.1982 - 07.1985] LH24 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-36011
Switch Assy, Oil Pressure (For Engine)
[05.1982 - 07.1985] LH24 |
83530-36011 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[05.1982 - 07.1985] LH24 |
83530-60030 |
from US $26.54 |
||
|
84210
|
84210
84210-35010 Switch Assy, Back-Up Lamp[05.1982 - 11.1982] LH24 |
84210-35010 |
US $41.20 |
||
| replacement | |||||
|
84210
|
84210
84210-10060
Switch Assy, Back-Up Lamp
[05.1982 - 11.1982] LH24 |
84210-10060 |
— | ||
|
84210
|
84210
84210-35020 Switch Assy, Back-Up Lamp[11.1982 - 01.1984] LH24 |
84210-35020 |
US $63.77 |
||
| replacement | |||||
|
84210
|
84210
84210-16021 Switch Assy, Back-Up Lamp[11.1982 - 01.1984] LH24 |
84210-16021 |
US $57.80 |
||
|
84210
|
84210
84210-60021 Switch Assy, Back-Up Lamp[01.1984 - 07.1985] LH24 |
84210-60021 |
from US $44.56 |
||
|
84233
|
84233
84230-22051
Switch Assy, Courtesy Lamp (For Front Door)
[05.1982 - 07.1985] LH24 |
84230-22051 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[05.1982 - 07.1985] LH24 |
84231-28010 |
from US $16.26 |
||
|
84233B
|
84233B
84234-24010 Cushion, Courtesy Switch (For Front Door)[05.1982 - 07.1985] LH24 |
84234-24010 |
US $11.68 |
||
|
84340
|
84340
84340-22072 Switch Assy, Stop Lamp[05.1982 - 07.1985] LH24 |
84340-22072 |
from US $26.36 |
||
|
84380
|
84380
84380-35010 Switch Assy, Courtesy Lamp (For Parking Brake)[05.1982 - 07.1985] LH24 |
84380-35010 |
US $15.66 |
||
|
84461
|
84461
84461-30040
Switch, Level Warning
[05.1982 - 07.1985] LH24 |
84461-30040 |
— | ||
|
89429
|
89429
89422-30020
Sensor, Water Temperature (For E.f.i.)
[05.1982 - 07.1985] LH24 |
89422-30020 |
— | ||
| replacement | |||||
|
89429
|
89429
89422-12010 Sensor, Water Temperature (For E.f.i.)[05.1982 - 07.1985] LH24 |
89422-12010 |
from US $61.10 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862254020
|
2862254020
28622-54020
Insulator, Glow Plug Resistor, No.1
|
28622-54020 |
— | ||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.08 |
||
|
9017905015
|
9017905015
90179-05015 New Genuine Part |
90179-05015 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
|
9046106102
|
9046106102
90461-06102 New Genuine Part |
90461-06102 |
US $4.22 |
||
|
9046106423
|
9046106423
90461-06423 New Genuine Part |
90461-06423 |
US $4.08 |
||
|
9046400044
|
9046400044
90464-00044 New Genuine Part |
90464-00044 |
US $3.35 |
||
|
9046400190
|
9046400190
90464-00190 CLAMP |
90464-00190 |
US $1.40 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
