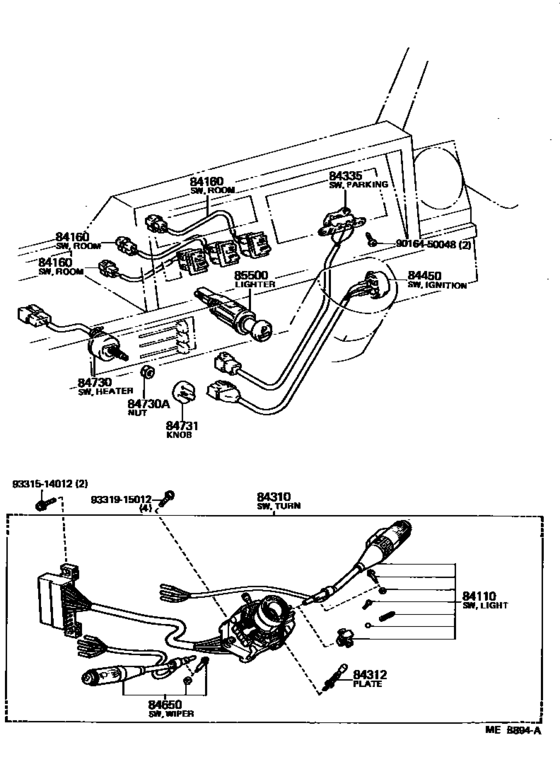

Switch & Relay & Computer ([05.1982 - ] (8205- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- LH24
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE QUICK DELIVERY
- From
- 05.1982
- To
- 07.1985
- Vehicle Model
- Hiace Quick Delivery
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-29096 Switch Assy, Light Control, No.1[05.1982 - 07.1985] LH24 |
84112-29096 |
US $70.18 |
||
| replacement | |||||
|
84110
|
84110
84112-29196
Switch Assy, Light Control, No.1
[05.1982 - 07.1985] LH24 |
84112-29196 |
— | ||
|
84160
|
84160
84170-90B00 Switch Assy, Room Lamp[05.1982 - 07.1985] LH24 |
84170-90B00 |
US $53.29 |
||
|
84310
|
84310
84310-26032
Switch Assy, Turn Signal
[05.1982 - 07.1985] LH24 |
84310-26032 |
— | ||
|
84312
|
84312
84312-20011 Plate, Horn Contact[05.1982 - 07.1985] LH24 |
84312-20011 |
from US $5.09 |
||
|
84335
|
84335
84330-95A02 Switch Assy, Parking Lamp[05.1982 - 07.1985] LH24 |
84330-95A02 |
US $38.44 |
||
|
84450
|
84450
84450-30131
Switch Assy, Ignition Or Starter
[05.1982 - 07.1985] LH24 |
84450-30131 |
— | ||
| replacement | |||||
|
84450
|
84450
84450-26040 Switch Assy, Ignition Or Starter[05.1982 - 07.1985] LH24 |
84450-26040 |
US $58.53 |
||
|
84650
|
84650
84652-29027 Switch Assy, Windshield Wiper[05.1982 - 07.1985] LH24 |
84652-29027 |
US $99.01 |
||
| replacement | |||||
|
84650
|
84650
84652-22042 Switch Assy, Windshield Wiper[05.1982 - 07.1985] LH24 |
84652-22042 |
US $88.82 |
||
|
84730
|
84730
84732-89106
Switch Assy, Heater Blower
[05.1982 - 07.1985] LH24 |
84732-89106 |
— | ||
|
84730A
|
84730A
90170-11206 Nut, Heater Blower Switch[05.1982 - 07.1985] LH24 |
90170-11206 |
US $1.40 |
||
|
84731
|
84731
84731-12010 Knob, Heater Blower Switch[05.1982 - 07.1985] LH24 |
84731-12010 |
from US $6.81 |
||
|
85500
|
85500
85500-30340
Lighter Assy, Cigarette (12V)
[05.1982 - 07.1985] LH24 |
85500-30340 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-16060 Lighter Assy, Cigarette[05.1982 - 07.1985] LH24 |
85500-16060 |
US $57.83 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
