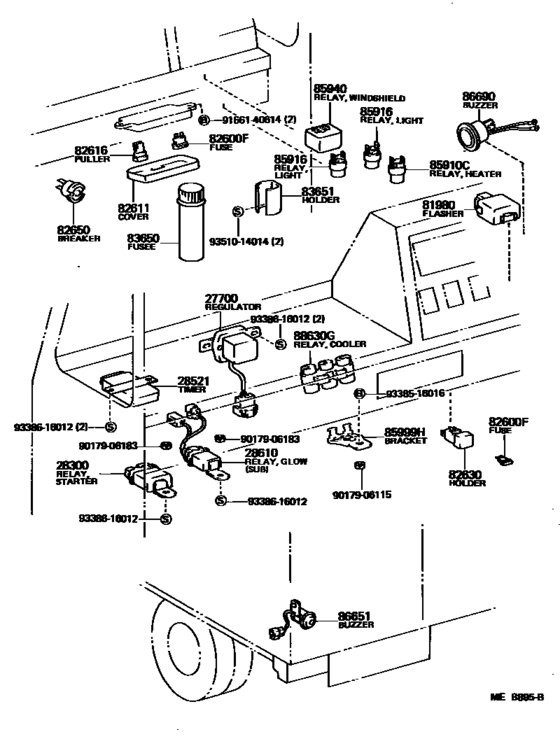

Switch & Relay & Computer ([05.1982 - ] (8205- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- LH24
- ENGINE
- L
- TRANSMISSION
- MTM
- Model
- HIACE QUICK DELIVERY
- From
- 05.1982
- To
- 07.1985
- Vehicle Model
- Hiace Quick Delivery
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27700
|
27700
27700-35030 Regulator Assy, Generator[05.1982 - 07.1985] L..LH24 |
27700-35030 |
US $144.14 |
||
| replacement | |||||
|
27700
|
27700
27700-13040
Regulator Assy, Generator
[05.1982 - 07.1985] L..LH24 |
27700-13040 |
— | ||
|
28300
|
28300
28300-48010 Relay Assy, Starter[05.1982 - 07.1985] L..LH24 |
28300-48010 |
US $106.56 |
||
|
28521
|
28521
28521-54180 Timer, Preheating[05.1982 - 07.1985] L..LH24 |
28521-54180 |
US $634.82 |
||
| replacement | |||||
|
28521
|
28521
28521-54181 Timer, Preheating[05.1982 - 07.1985] L..LH24 |
28521-54181 |
US $633.36 |
||
|
28610
|
28610
28610-54150
Relay Assy, Glow Plug
[05.1982 - 07.1985] L..LH24 SUB |
28610-54150 |
— | ||
|
28610
|
28610
28610-54190
Relay Assy, Glow Plug
[05.1982 - 07.1985] L..LH24 MAIN |
28610-54190 |
— | ||
|
81980
|
81980
81980-22070
Flasher Assy, Turn Signal
[05.1982 - 07.1985] LH24 |
81980-22070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[05.1982 - 07.1985] LH24 |
81980-16010 |
US $121.36 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[05.1982 - 07.1985] LH24 １０Ａ,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[05.1982 - 07.1985] LH24 １５Ａ,15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[05.1982 - 07.1985] LH24 ２０Ａ,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[05.1982 - 07.1985] LH24 ７．５Ａ,7.5A |
90982-09005 |
from US $0.99 |
||
|
82611
|
82611
82611-90D00
Cover, Fuse Block
[05.1982 - 07.1985] LH24 |
82611-90D00 |
— | ||
|
82616
|
82616
82616-12010 Lever, Fuse[05.1982 - 07.1985] LH24 |
82616-12010 |
from US $3.04 |
||
|
82630
|
82630
82630-90D00
Holder Assy, Fuse
[05.1982 - 07.1985] LH24 |
82630-90D00 |
— | ||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[05.1982 - 07.1985] LH24 ２０Ａ |
82650-35010 |
US $18 |
||
|
83650
|
83650
90986-01003
Fusee
[05.1982 - 07.1985] LH24 |
90986-01003 |
— | ||
|
83651
|
83651
81713-90500 Holder, Fusee[05.1982 - 07.1985] LH24 |
81713-90500 |
US $4.51 |
||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[05.1982 - 07.1985] LH24 |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
85910C
|
85910C
909870200483 [05.1982 - 07.1985] LH24 |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[05.1982 - 07.1985] LH24 |
90987-01003 |
from US $35.26 |
||
|
85940
|
85940
85940-22051 Relay Assy, Windshield Wiper[05.1982 - 07.1985] LH24 |
85940-22051 |
US $152.88 |
||
| replacement | |||||
|
85940
|
85940
85940-95J00 Relay Assy, Windshield Wiper[05.1982 - 07.1985] LH24 |
85940-95J00 |
US $151.42 |
||
|
85999H
|
85999H
88688-95A11
Bracket, Relay
[05.1982 - 07.1985] LH24 |
88688-95A11 |
— | ||
|
86651
|
86651
86650-95406 Buzzer Assy, Back[05.1982 - 07.1985] LH24 |
86650-95406 |
US $96.10 |
||
| replacement | |||||
|
86651
|
86651
86650-95409 Buzzer Assy, Reverse Warning[05.1982 - 07.1985] LH24 |
86650-95409 |
US $88.82 |
||
|
86690
|
86690
86650-95011
Buzzer Assy, Speed Indicator
[05.1982 - 07.1985] LH24 |
86650-95011 |
— | ||
|
88630G
|
88630G
88630-95704
Relay Assy, Cooler
[05.1982 - 07.1985] LH24 |
88630-95704 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9017906183
|
9017906183
90179-06183 New Genuine Part |
90179-06183 |
US $3.35 |
||
| replacement | |||||
|
9017906183
|
9017906183
90179-06329 NUT |
90179-06329 |
US $1.28 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.28 |
||
|
9338616012
|
9338616012
93386-16012 New Genuine Part |
93386-16012 |
US $1.02 |
||
|
9351014014
|
9351014014
93510-14014 New Genuine Part |
93510-14014 |
US $1.75 |
||
