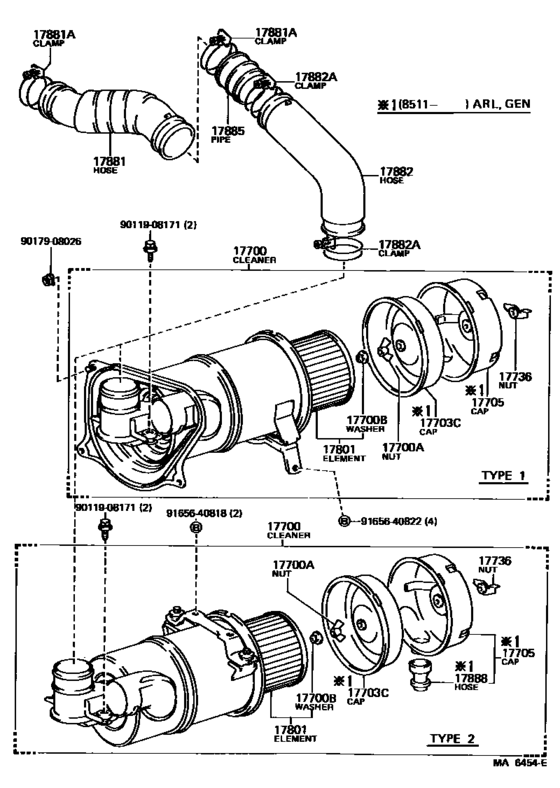

Air Cleaner ([12.1982 - ] (8212- )L,2L) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-54230 Cleaner Assy, AirAIR [12.1982 - 11.1985] 2Y..YH50,60..LHD..V4D..GEN;2Y..YH50,60..LHD..COM..GEN; L..LH60..LHD..V4D..03S;L,2L..LH5#,61..LHD..COM;L..LH60..LHD..(09S,15S);L,2L..LH5#, 61..LHD..V4D TYPE 1 |
17700-54230 |
US $381.47 |
||
| replacement | |||||
|
17700
|
17700
17700-72120 Cleaner Assy, AirAIR [12.1982 - 11.1985] 2Y..YH50,60..LHD..V4D..GEN;2Y..YH50,60..LHD..COM..GEN; L..LH60..LHD..V4D..03S;L,2L..LH5#,61..LHD..COM;L..LH60..LHD..(09S,15S);L,2L..LH5#, 61..LHD..V4D TYPE 1 |
17700-72120 |
US $381.47 |
||
|
17700
|
17700
17700-72120 Cleaner Assy, AirAIR [11.1985 - 08.1987] 2L..LH51..LHD..12S;2L..LH51..LHD..V4D..GEN;2L..LH61..LHD..(03S,15S)..GEN TYPE 1; 2Y,3Y..YH50,51,60,61..LHD..V4D..GEN;2Y,3Y..YH50,51,60,61..LHD..COM..GEN TYPE 1 |
17700-72120 |
US $381.47 |
||
|
17700A
|
17700A
94271-00800 Nut, Wing(For Air Cleaner)[12.1982 - 07.1988] 2L..LH51,56,61,66,71; 2Y#,3Y,4Y..YH5#,6#,71 |
94271-00800 |
US $1.12 |
||
|
17700B
|
17700B
90210-08024
Washer, Seal(For Air Cleaner)
[12.1982 - 07.1988] 2L..LH51,56,61,66,71; 2Y#,3Y,4Y..YH5#,6#,71 |
90210-08024 |
— | ||
|
17703C
|
17703C
17703-64010
Cap Sub-Assy, Dust
[11.1985 - 08.1986] 2L..LH51,61..ARL,GEN; 3Y..YH51..4HC..SA;3Y..YH61,71..ARL,SA;3Y..YH51..RHD..V4D..(4FC,4H,5F,5H); 2Y..YH50,60..GEN |
17703-64010 |
— | ||
|
17705
|
17705
17705-54290
Cap Sub-Assy, Air Cleaner
[12.1982 - 11.1985] L,2L..LH5#,6#,7#..RHD; L,2L..LH5#,6#..LHD..COM; L,2L..LH5#,6#..V5D; L,2L..LH5#,6#..LHD..V4D |
17705-54290 |
— | ||
|
17705
|
17705
17705-72060
Cap Sub-Assy, Air Cleaner
[11.1985 - 08.1987] 2L..LH51..LHD..12S;2L..LH51..LHD..V4D..GEN;2L..LH61..LHD..(03S,15S)..GEN; 2Y,3Y..YH50,51,60,61..LHD..V4D..GEN;2Y,3Y..YH50,51,60,61..LHD..COM..GEN |
17705-72060 |
— | ||
|
17736
|
17736
90175-06003 Nut, Wing(For Air Cleaner)[12.1982 - 07.1988] 2L..LH51,56,61,66,71; 2Y#,3Y,4Y..YH5#,6#,71 |
90175-06003 |
from US $1.21 |
||
|
17801
|
17801
17801-64030 Element Sub-Assy, Air Cleaner Filter[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
17801-64030 |
US $30.23 |
||
|
17881
|
17881
17882-54120
Hose, Air Cleaner, No.2
[12.1982 - 08.1987] L,2L..LH50,51,60,61,7# |
17882-54120 |
— | ||
|
17881A
|
17881A
96111-10690 Clamp, Hose[12.1982 - 08.1987] L,2L..LH5#,6#,7# INTAKE MANIFOLD SIDE |
96111-10690 |
from US $2.87 |
||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[12.1982 - 08.1987] L,2L..LH5#,6#,7# PIPE SIDE |
96111-10780 |
from US $3.53 |
||
|
17882
|
17882
17881-54170
Hose, Air Cleaner, No.1
[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
17881-54170 |
— | ||
|
17882A
|
17882A
96111-10780 Clamp, Hose(For Air Connector)[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
96111-10780 |
from US $3.53 |
||
|
17885
|
17885
17885-54080 Pipe, Air Cleaner[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
17885-54080 |
US $35.67 |
||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9017908026
|
9017908026
90179-08026 Nut (For Front Wiper Arm Setting) |
90179-08026 |
US $1.43 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640822
|
9165640822
91656-40822
New Genuine Part
|
91656-40822 |
— | ||
| replacement | |||||
|
9165640822
|
9165640822
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
