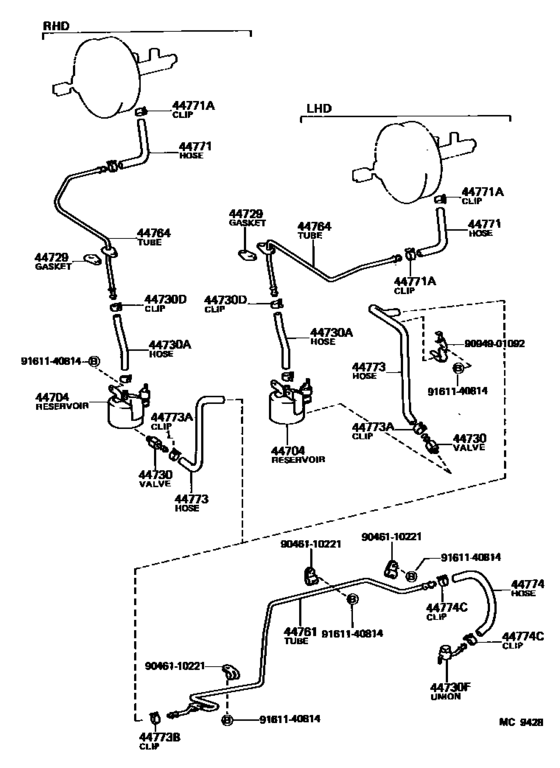

Brake Booster & Vacuum Tube ([12.1982 - 08.1987] (8212-8708)LH5#,6#,7#) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-26030 Reservoir Sub-Assy, VacuumVACUUM [12.1982 - 08.1987] LH5#,6#..LHD |
44704-26030 |
US $90.27 |
||
|
44729
|
44729
44729-26020 Gasket, Vacuum Tube[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7# |
44729-26020 |
US $4.80 |
||
|
44730
|
44730
44730-60040 Booster Kit, Brake[12.1982 - 08.1987] LH5#,6#,7# |
44730-60040 |
US $77.93 |
||
|
44730A
|
44730A
95441-09190
Hose (For Vacuum Tube)
[12.1982 - 08.1987] LH5#,6#,7# |
95441-09190 |
— | ||
| replacement | |||||
|
44730A
|
44730A
95446-09190 Hose, Vacuum, No.1[12.1982 - 08.1987] LH5#,6#,7# |
95446-09190 |
US $8.67 |
||
|
44730D
|
44730D
90467-16004
Clamp, Oil Cooler Hose
[08.1985 - 07.1988] LH5#,6#,71,YH5#,6#,7# |
90467-16004 |
— | ||
| replacement | |||||
|
44730D
|
44730D
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1985 - 07.1988] LH5#,6#,71,YH5#,6#,7# |
96133-41500 |
from US $2.32 |
||
|
44730D
|
44730D
90467-16141
Clip(For Clutch Reservoir Tube)
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
90467-16141 |
— | ||
|
44730F
|
44730F
90405-09070 Union, Vacuum Hose(For Manifold Side)[12.1982 - 08.1987] LH50,51,60,61,71..ARL,GEN W/COOLER |
90405-09070 |
US $8.59 |
||
|
44730F
|
44730F
90405-09071
Union, Vacuum Hose(For Manifold Side)
[12.1982 - 08.1987] LH50,51,60,61,7# |
90405-09071 |
— | ||
|
44761
|
44761
44761-26110 Tube, Intake Manifold Or Vacuum Pump To Connector[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7# |
44761-26110 |
US $42.52 |
||
|
44764
|
44764
44764-26060 Tube, Booster VacuumCONNECTOR TO BRAKE BOOSTER [12.1982 - 08.1987] LH5#,6#,YH50,51,56,60,61,66..LHD |
44764-26060 |
US $32.61 |
||
|
44771
|
44771
44774-26030 Hose(For Vacuum Reservoir)[12.1982 - 08.1985] LH5#..12S..EUR; LH51..N1;LH51..ARL,GEN;LH50..12S..GEN;LH50,6#,7#..03S,06S,15S |
44774-26030 |
US $12.38 |
||
| replacement | |||||
|
44771
|
44771
44774-26070 Hose, Vacuum, No.1[12.1982 - 08.1985] LH5#..12S..EUR; LH51..N1;LH51..ARL,GEN;LH50..12S..GEN;LH50,6#,7#..03S,06S,15S |
44774-26070 |
US $11.79 |
||
|
44771
|
44771
44774-26070 Hose, Vacuum, No.1[08.1985 - 08.1987] LH51,61,71..ARL,GEN |
44774-26070 |
US $11.79 |
||
|
44771A
|
44771A
90467-16004
Clamp, Oil Cooler Hose
[08.1985 - 07.1988] LH5#,6#,71,YH50,51,53,60,61,63,7# |
90467-16004 |
— | ||
| replacement | |||||
|
44771A
|
44771A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1985 - 07.1988] LH5#,6#,71,YH50,51,53,60,61,63,7# |
96133-41500 |
from US $2.32 |
||
|
44771A
|
44771A
90467-16141
Clip(For Clutch Reservoir Tube)
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
90467-16141 |
— | ||
|
44773
|
44773
44772-26030
Hose, Check Valve To Connector Tube
[12.1982 - 08.1987] LH5#,6#..LHD |
44772-26030 |
— | ||
|
44773A
|
44773A
90467-16004
Clamp, Oil Cooler Hose
[08.1985 - 07.1988] LH5#,6#,71,YH5#,6#,7# |
90467-16004 |
— | ||
| replacement | |||||
|
44773A
|
44773A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1985 - 07.1988] LH5#,6#,71,YH5#,6#,7# |
96133-41500 |
from US $2.32 |
||
|
44773A
|
44773A
90467-16141
Clip(For Clutch Reservoir Tube)
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
90467-16141 |
— | ||
|
44773B
|
44773B
90467-16004
Clamp, Oil Cooler Hose
[08.1985 - 07.1988] LH5#,6#,71,YH5#,6#,7# |
90467-16004 |
— | ||
| replacement | |||||
|
44773B
|
44773B
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1985 - 07.1988] LH5#,6#,71,YH5#,6#,7# |
96133-41500 |
from US $2.32 |
||
|
44773B
|
44773B
90467-16141
Clip(For Clutch Reservoir Tube)
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
90467-16141 |
— | ||
|
44774
|
44774
44774-26040
Hose, Union To Connector Tube
[12.1982 - 08.1987] LH50,51,60,61,7# |
44774-26040 |
— | ||
|
44774C
|
44774C
90467-16004
Clamp, Oil Cooler Hose
[08.1985 - 08.1987] LH5#,6#,71 |
90467-16004 |
— | ||
| replacement | |||||
|
44774C
|
44774C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1985 - 08.1987] LH5#,6#,71 |
96133-41500 |
from US $2.32 |
||
|
44774C
|
44774C
90467-16141
Clip(For Clutch Reservoir Tube)
[12.1982 - 08.1985] LH5#,6#,7# |
90467-16141 |
— | ||
|
9046110221
|
9046110221
90461-10221
Clamp, Conneector Tube
|
90461-10221 |
— | ||
|
9094901092
|
9094901092
90949-01092 Clip(For Vacuum Tube Connector Hose) |
90949-01092 |
US $4.66 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
