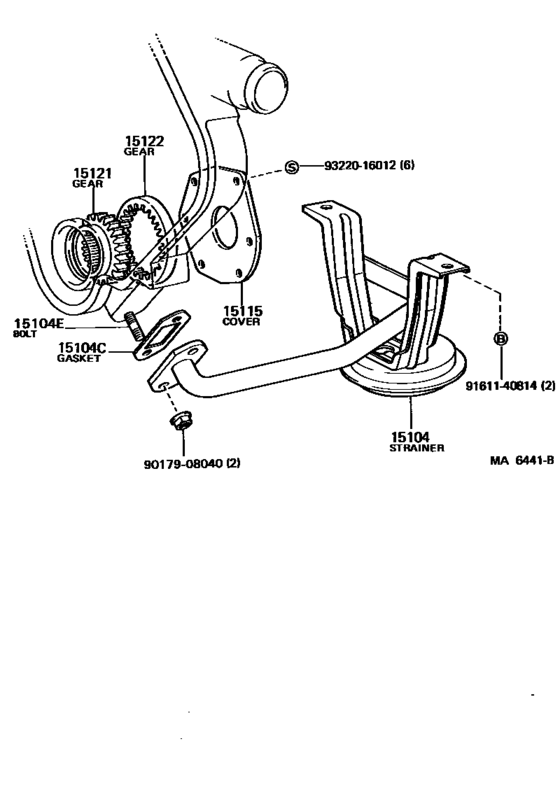

Engine Oil Pump ([12.1982 - ] (8212- )L,2L) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-54043 Strainer Sub-Assy, Oil[08.1983 - 02.1986] L,2L..LH5#,6#,7# |
15104-54043 |
US $96.10 |
||
| replacement | |||||
|
15104
|
15104
15104-54044 Strainer Sub-Assy, Oil[08.1983 - 02.1986] L,2L..LH5#,6#,7# |
15104-54044 |
US $97.55 |
||
|
15104
|
15104
15104-54044 Strainer Sub-Assy, Oil[02.1986 - 08.1987] 2L..LH51,61,71 |
15104-54044 |
US $97.55 |
||
|
15104C
|
15104C
15149-54011
Gasket(For Oil Strainer)
[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
15149-54011 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-54030 Gasket(For Oil Strainer)[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
15149-54030 |
from US $2.09 |
||
|
15104E
|
15104E
92122-40816 Bolt, Stud(For Oil Strainer)[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
92122-40816 |
US $1.40 |
||
|
15115
|
15115
15115-54011 Cover, Oil Pump[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
15115-54011 |
US $21.40 |
||
| replacement | |||||
|
15115
|
15115
15115-54012
Cover, Oil Pump
[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
15115-54012 |
— | ||
|
15115
|
15115
15115-54012
Cover, Oil Pump
[04.1985 - 08.1987] 2L..LH5#,6#,71 |
15115-54012 |
— | ||
|
15121
|
15121
15121-54010 Gear, Oil Pump Drive[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
15121-54010 |
US $67.70 |
||
|
15122
|
15122
15122-54010 Gear, Oil Pump Driven[12.1982 - 08.1987] L,2L..LH5#,6#,7# N=31 |
15122-54010 |
US $74.26 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
