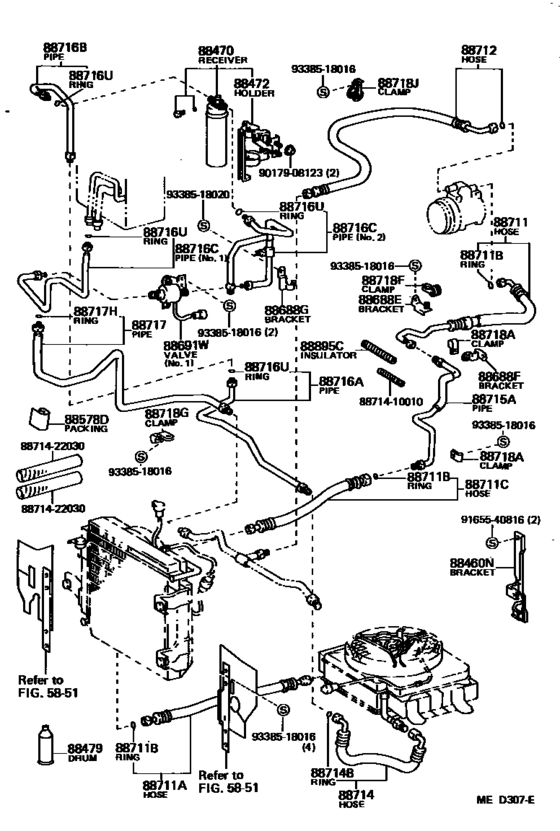

Heating & Air Conditioning - Cooler Piping ([12.1982 - ] (8212- )LH50,51,60,61..LHD..COM) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460N
|
88460N
88688-95J04
Bracket, Cooler Condenser, No.8
[12.1982 - 08.1987] LH50,51,60,61..ARL,GEN |
88688-95J04 |
— | ||
|
88470
|
88470
88470-95J01 Receiver & Dryer Assy, CoolerCOOLER [12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..GEN |
88470-95J01 |
US $170.35 |
||
|
88472
|
88472
88472-95J01
Bracket, Receiver Tank, No.1
[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..GEN |
88472-95J01 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN 400G |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN 400G |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN 400G |
90986-02005 |
— | ||
|
88578D
|
88578D
88578-30360
Packing, Cooler Pipe, No.1
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
88578-30360 |
— | ||
|
88578D
|
88578D
88578-95J06
Packing, Cooler Pipe, No.1
[10.1986 - 08.1987] LH51,61,YH51,61,63..ARL,GEN |
88578-95J06 |
— | ||
|
88688E
|
88688E
88688-95J26
Bracket, Cooler Refrigerant Hose, No.1
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
88688-95J26 |
— | ||
|
88688F
|
88688F
88688-95J25
Bracket, Cooler Refrigerant Hose, No.2
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
88688-95J25 |
— | ||
|
88688G
|
88688G
88688-95J37
Bracket, Cooler Refrigerant Pipe
[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..GEN |
88688-95J37 |
— | ||
|
88691W
|
88691W
88690-95J02
Valve, Magnet
[12.1982 - 08.1985] LH5#,6#,YH50,60..LHD..COM..GEN NO.1 |
88690-95J02 |
— | ||
|
88691W
|
88691W
88690-95J03
Valve, Magnet
[12.1982 - 08.1985] LH5#,6#,YH50,60..LHD..COM..GEN NO.2 |
88690-95J03 |
— | ||
|
88691W
|
88691W
88690-95J19
Valve, Magnet
[08.1985 - 08.1987] LH51,61,YH50,51,60,61..LHD..COM..GEN NO.1 |
88690-95J19 |
— | ||
|
88691W
|
88691W
88690-95J21
Valve, Magnet
[08.1985 - 08.1987] LH51,61,YH50,51,60,61..LHD..COM..GEN NO.2 |
88690-95J21 |
— | ||
|
88711
|
88711
88711-95J09
Hose, Cooler Refrigerant Discharge, No.1
[12.1982 - 08.1987] LH50,51,60,61..ARL,GEN |
88711-95J09 |
— | ||
|
88711A
|
88711A
88711-95J11 Hose, Cooler Refrigerant Discharge, No.2[12.1982 - 08.1987] LH50,51,60,61..COM..GEN |
88711-95J11 |
US $131.04 |
||
| replacement | |||||
|
88711A
|
88711A
88711-26480 Hose, Cooler Refrigerant Discharge, No.2[12.1982 - 08.1987] LH50,51,60,61..COM..GEN |
88711-26480 |
US $58.24 |
||
|
88711C
|
88711C
88708-95J00 Hose, Cooler Refrigerant Discharge, No.3[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..COM..GEN |
88708-95J00 |
US $109.20 |
||
|
88712
|
88712
88709-95J01 Hose, Cooler Refrigerant Suction, No.1[12.1982 - 08.1987] LH50,51,60,61..COM..GEN |
88709-95J01 |
US $170.35 |
||
|
88714
|
88714
88721-95J07 Hose, Cooler Refrigerant Liquid, No.1COOLER REFRIGERANT LIQUID, NO.1 [12.1982 - 08.1987] LH50,51,60,61..LHD..COM |
88721-95J07 |
US $126.67 |
||
|
88715A
|
88715A
88715-95J06
Pipe, Cooler Refrigerant Discharge, A
[12.1982 - 08.1987] LH50,51,60,61..ARL,GEN |
88715-95J06 |
— | ||
|
88716A
|
88716A
88716-95J16 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..GEN |
88716-95J16 |
US $74.26 |
||
|
88716B
|
88716B
88716-95J15 Pipe, Cooler Refrigerant Liquid, BCOOLER REFRIGERANT LIQUID, B [12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..GEN |
88716-95J15 |
US $50.23 |
||
|
88716C
|
88716C
88716-95J13 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [12.1982 - 08.1985] LH5#,6#,YH50,60..LHD..COM..GEN NO.1 |
88716-95J13 |
US $71.34 |
||
|
88716C
|
88716C
88716-95J17 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [12.1982 - 08.1985] LH5#,6#..LHD..COM NO.2 |
88716-95J17 |
US $247.52 |
||
|
88716C
|
88716C
88716-95J31 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.1985 - 08.1987] LH51,61..LHD..COM NO.2 |
88716-95J31 |
US $218.40 |
||
|
88716C
|
88716C
88716-95J34 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [08.1985 - 08.1987] LH51,61,YH50,51,60,61..LHD..COM..GEN NO.1 |
88716-95J34 |
US $75.71 |
||
|
88717
|
88717
88717-95J04 Pipe, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [12.1982 - 08.1985] LH5#,6#,YH50,60..LHD..GEN |
88717-95J04 |
US $171.81 |
||
|
88717
|
88717
88717-95J18 Pipe, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1985 - 08.1987] LH51,61,YH50,51,60,61..LHD..GEN |
88717-95J18 |
US $171.81 |
||
|
88718A
|
88718A
88718-95J17
Clamp(For Cooler Refrigerant Pipe), No.1
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
88718-95J17 |
— | ||
|
88718F
|
88718F
88718-95J18
Clamp(For Cooler Refrigerant Hose), No.1
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
88718-95J18 |
— | ||
|
88718G
|
88718G
88718-95J02
Clamp(For Cooler Refrigerant Hose), No.2
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
88718-95J02 |
— | ||
|
88718J
|
88718J
88718-95J00
Clamp(For Cooler Refrigerant Hose), No.4
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
88718-95J00 |
— | ||
|
88895C
|
88895C
88895-12030
Insulator, Cooler Refrigerant Pipe, No.2
[12.1982 - 08.1987] YH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN |
88895-12030 |
— | ||
|
8871410010
|
8871410010
88714-10010
Insulator(For Water By-Pass Hose)
|
88714-10010 |
— | ||
|
8871422030
|
8871422030
88714-22030
Insulator, Cooler Refrigerant Hose, No.1
|
88714-22030 |
— | ||
| replacement | |||||
|
8871422030
|
8871422030
88714-12050
Insulator, Cooler Refrigerant Hose, No.1
|
88714-12050 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9165540816
|
9165540816
91655-40816 New Genuine Part |
91655-40816 |
US $1.89 |
||
| replacement | |||||
|
9165540816
|
9165540816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
