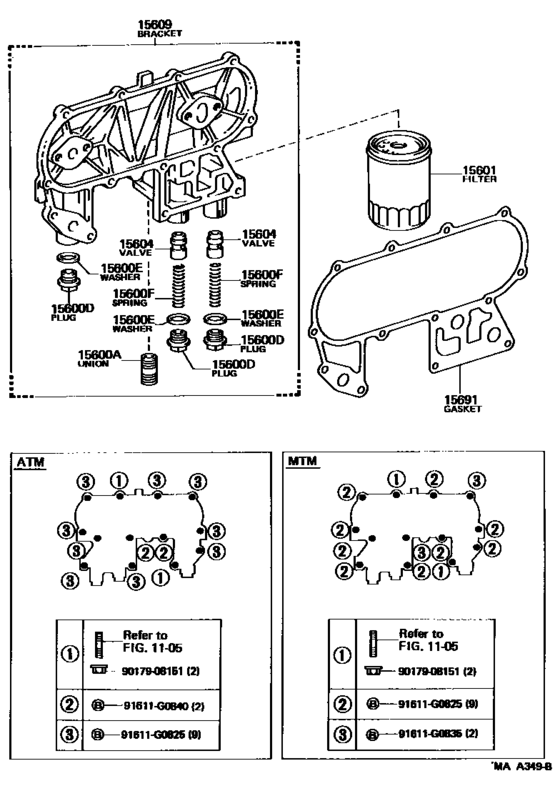

Oil Filter ([08.1987 - 08.1989] (8708-8908)2L) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
15116-54010
Screw, Oil Cooler Set
[08.1987 - 08.1989] 2L..LH51,61,71 |
15116-54010 |
— | ||
|
15600D
|
15600D
90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)[08.1987 - 08.1989] 2L..LH51,61,71 |
90341-18015 |
US $2.62 |
||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[07.1989 - 08.1989] 2L..LH51,61,71 |
90430-18001 |
US $3.05 |
||
|
15600E
|
15600E
90430-18011 Washer(For Oil Filter)[08.1987 - 07.1989] 2L..LH51,61,71 |
90430-18011 |
US $2.33 |
||
| replacement | |||||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[08.1987 - 07.1989] 2L..LH51,61,71 |
90430-18001 |
US $3.05 |
||
|
15600F
|
15600F
90501-16026 Spring, Compression(For Oil Filter)[08.1987 - 08.1989] 2L..LH51,61,71 |
90501-16026 |
from US $0.96 |
||
|
15601
|
15601
15600-41010
Filter Assy, Oil
[08.1987 - 08.1989] 2L..LH51,61,71 |
15600-41010 |
— | ||
| replacement | |||||
|
15601
|
15601
90915-40002 Filter Assy, Oil[08.1987 - 08.1989] 2L..LH51,61,71 |
90915-40002 |
US $24.70 |
||
|
15604
|
15604
15131-54010 Valve, Oil Pump Relief[08.1987 - 08.1989] 2L..LH51,61,71 |
15131-54010 |
from US $5.07 |
||
|
15609
|
15609
15609-54012
Bracket Sub-Assy, Oil Filter
[08.1987 - 06.1988] 2L..LH51,61,71 |
15609-54012 |
— | ||
|
15609
|
15609
15609-54013
Bracket Sub-Assy, Oil Filter
[06.1988 - 08.1989] 2L..LH51,61,71 |
15609-54013 |
— | ||
|
15691
|
15691
15692-54020 Gasket, Oil Filter[08.1987 - 06.1988] 2L..LH51,61,71 |
15692-54020 |
US $19.22 |
||
| replacement | |||||
|
15691
|
15691
15692-54040 Gasket, Oil Filter[08.1987 - 06.1988] 2L..LH51,61,71 |
15692-54040 |
US $18.70 |
||
|
15691
|
15691
15692-54030
Gasket, Oil Filter
[06.1988 - 08.1989] 2L..LH51,61,71 |
15692-54030 |
— | ||
| replacement | |||||
|
15691
|
15691
15692-54050 Gasket, Oil Filter[06.1988 - 08.1989] 2L..LH51,61,71 |
15692-54050 |
from US $8.33 |
||
|
91611G0825
|
91611G0825
91611-G0825
Bolt(for Clutch Release Cylinder Setting)
|
91611-G0825 |
— | ||
| replacement | |||||
|
91611G0825
|
91611G0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
91611G0835
|
91611G0835
91611-G0835
Bolt(For Clutch Release Cylinder Setting)
|
91611-G0835 |
— | ||
| replacement | |||||
|
91611G0835
|
91611G0835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
91611G0840
|
91611G0840
91611-G0840 New Genuine Part |
91611-G0840 |
US $2.18 |
||
| replacement | |||||
|
91611G0840
|
91611G0840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9017908151
|
9017908151
90179-08151 NUT |
90179-08151 |
US $1.25 |
||
