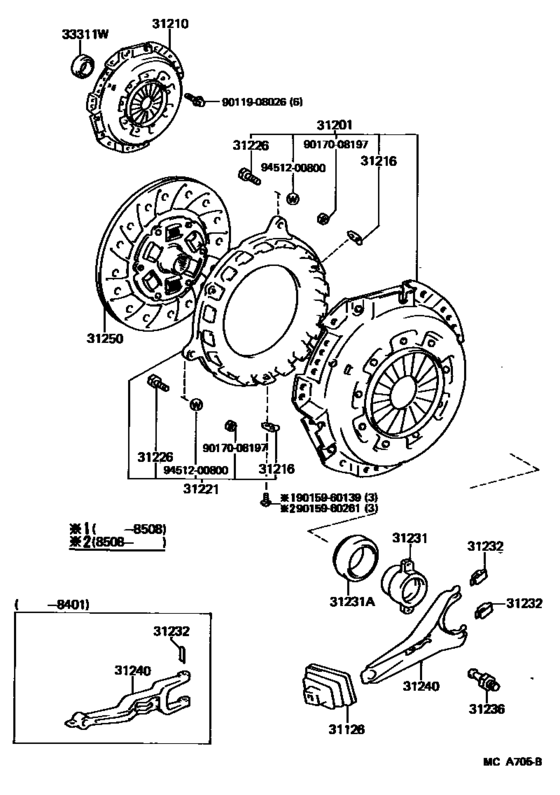

Clutch & Release Fork ([12.1982 - 08.1987] (8212-8708)LH5#,6#,7#..MTM) Diagram Toyota HIACE
- Year
- 1984 - 1986
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1986
- Gear Shift Type
- 5H
- No.of Doors
- V5D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[01.1984 - 08.1987] LH51,61,71..5H |
31126-20070 |
from US $12.69 |
||
|
31201
|
31201
31201-19095 Cover Sub-Assy, Clutch[01.1984 - 08.1987] LH5#,6#,71..MTM |
31201-19095 |
US $232.96 |
||
| replacement | |||||
|
31201
|
31201
31201-14110 Cover Sub-Assy, Clutch[01.1984 - 08.1987] LH5#,6#,71..MTM |
31201-14110 |
US $180.54 |
||
|
31210
|
31210
31210-14130 Cover Assy, Clutch[01.1984 - 08.1987] LH5#,6#,71..MTM |
31210-14130 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[01.1984 - 08.1987] LH5#,6#,71..MTM |
31210-22101 |
from US $155.47 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,60..MTM |
31216-30010 |
— | ||
|
31221
|
31221
31221-39056 Spring, Clutch Retracting[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,60..MTM |
31221-39056 |
US $80.08 |
||
| replacement | |||||
|
31221
|
31221
31221-36025
Spring, Clutch Retracting
[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,60..MTM |
31221-36025 |
— | ||
|
31226
|
31226
90101-08022
Bolt, Clutch Pressure Plate
[08.1983 - 08.1986] LH5#,6#,7#,YH5#,6#,71..MTM |
90101-08022 |
— | ||
|
31226
|
31226
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
[08.1986 - 07.1988] LH5#,6#,71,YH5#,6#,73..MTM |
91611-60816 |
— | ||
| replacement | |||||
|
31226
|
31226
91611-B0816 Bolt[08.1986 - 07.1988] LH5#,6#,71,YH5#,6#,73..MTM |
91611-B0816 |
from US $1.01 |
||
|
31231
|
31231
31231-20090 Hub, Clutch Release Bearing[01.1984 - 08.1987] LH51,61,71..5H |
31231-20090 |
US $21.77 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7#..MTM |
90363-40022 |
from US $40.89 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[12.1982 - 07.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
31232-22010 |
from US $1.60 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[01.1984 - 07.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20090 Fork Sub-Assy, Clutch Release[01.1984 - 08.1987] LH51,61,71..5H |
31204-20090 |
US $37.97 |
||
|
31250
|
31250
31250-26050
Disc Assy, Clutch
[12.1982 - 08.1984] LH5#,6#,7#..5H |
31250-26050 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [12.1982 - 08.1984] LH5#,6#,7#..5H |
31250-35410 |
from US $253.34 |
||
|
31250
|
31250
31250-26051 Disc Assy, Clutch[08.1984 - 08.1987] LH51,61,71..5H |
31250-26051 |
US $149.97 |
||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [08.1984 - 08.1987] LH51,61,71..5H |
31250-35410 |
from US $253.34 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7#..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7#..MTM |
90363-12024 |
from US $5.67 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9015960139
|
9015960139
90159-60139
New Genuine Part
|
90159-60139 |
— | ||
|
9015960261
|
9015960261
90159-60261 New Genuine Part |
90159-60261 |
US $1.46 |
||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
