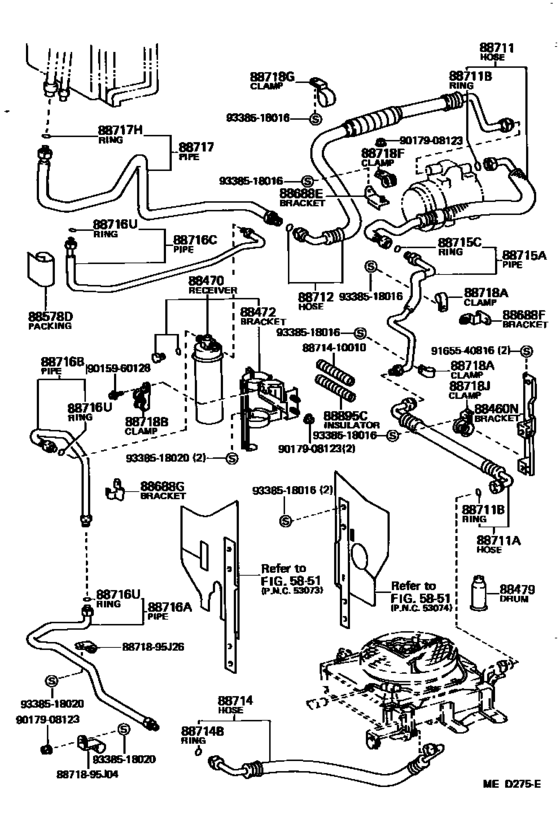

Heating & Air Conditioning - Cooler Piping ([12.1982 - ] (8212- )LH5#,6#..LHD..V) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- CATEGORY
- N1
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V5D
- Vehicle Model
- Hiace Van, Commuter Bus
- Seat Type
- R
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8871895J04
|
8871895J04
88718-95J04
Clamp(For Cooler Refrigerant Pipe), No.4
|
88718-95J04 |
— | ||
|
8871895J26
|
8871895J26
88718-95J26
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95J26 |
— | ||
|
8871410010
|
8871410010
88714-10010
Insulator(For Water By-Pass Hose)
|
88714-10010 |
— | ||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $2.15 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9165540816
|
9165540816
91655-40816 New Genuine Part |
91655-40816 |
US $1.89 |
||
| replacement | |||||
|
9165540816
|
9165540816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
