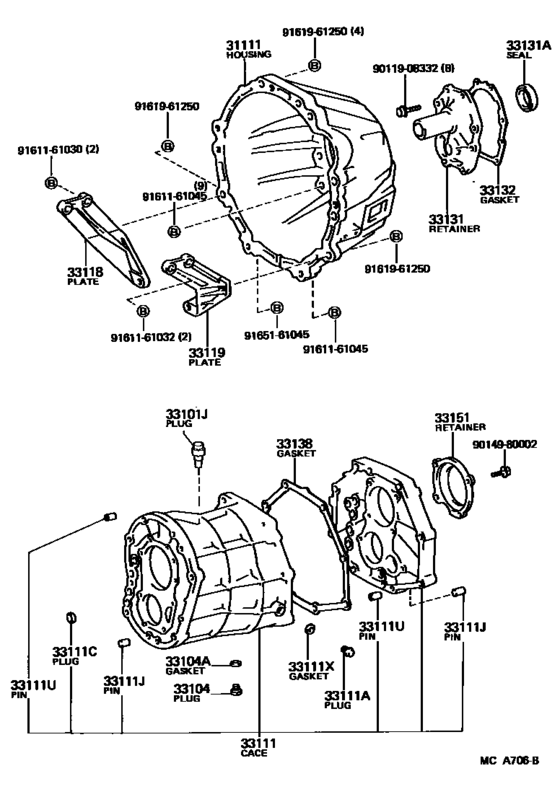

Clutch Housing & Transmission Case (Mtm) ([01.1984 - 02.1986] (8401-8602)LH51,61,71..5H) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- CATEGORY
- M1
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Vehicle Model
- Hiace Van, Commuter Bus
- Seat Type
- U
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-22111 Housing, Clutch[01.1984 - 08.1987] LH51,61,71..5H |
31111-22111 |
US $390.21 |
||
| replacement | |||||
|
31111
|
31111
31111-22114 Housing, Clutch[01.1984 - 08.1987] LH51,61,71..5H |
31111-22114 |
US $266.45 |
||
|
33101J
|
33101J
90930-03085 Plug, Breather[01.1984 - 07.1988] LH5#,6#,71,YH5#,6#,7#..MTM |
90930-03085 |
US $6.33 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1984 - 07.1988] LH5#,6#,71,YH5#,6#,7#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 07.1988] LH5#,6#,71,YH5#,6#,7#..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-26010 Case, Manual Transmission[01.1984 - 02.1986] LH51,61,71,YH5#,6#,71..MTM |
33101-26010 |
US $633.36 |
||
| replacements | |||||
|
33111
|
33111
33101-26060 Case, Manual Transmission[01.1984 - 02.1986] LH51,61,71,YH5#,6#,71..MTM |
33101-26060 |
US $438.55 |
||
|
33111
|
33111
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [01.1984 - 02.1986] LH51,61,71,YH5#,6#,71..MTM |
90341-18032 |
from US $3.76 |
||
|
33111
|
33111
33101-26900 Case, Manual Transmission[02.1986 - 04.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
33101-26900 |
US $628.99 |
||
| replacements | |||||
|
33111
|
33111
33101-26060 Case, Manual Transmission[02.1986 - 04.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
33101-26060 |
US $438.55 |
||
|
33111
|
33111
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [02.1986 - 04.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
90341-18032 |
from US $3.76 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[12.1982 - 07.1988] LH51,56,61,66,71,YH5#,6#,7#..MTM |
90341-18006 |
from US $3.23 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[01.1984 - 07.1988] LH5#,6#,71,YH5#,6#,7#..MTM OD=14 |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7#..MTM L=16,OD=12 |
90250-12002 |
from US $1.27 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[01.1984 - 07.1988] LH5#,6#,71,YH5#,6#,7#..MTM L=11,OD=11,L=11,OD=11 |
90253-11001 |
US $2.15 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[01.1984 - 07.1988] LH5#,6#,71,YH5#,6#,7#..MTM L=14,OD=15,L=14,OD=15 |
90253-15001 |
from US $1.07 |
||
|
33111X
|
33111X
90430-18008 Gasket[08.1984 - 07.1988] LH5#,6#,71,YH5#,6#,7#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 07.1988] LH5#,6#,71,YH5#,6#,7#..MTM |
90430-T0021 |
US $1.01 |
||
|
33118
|
33118
33118-25020 Plate, Stiffener, Rh(Mtm)[12.1982 - 08.1987] LH5#,6#,7#..MTM |
33118-25020 |
US $22.01 |
||
|
33119
|
33119
33119-25020 Plate, Stiffener, Lh(Mtm)[12.1982 - 08.1987] LH50,51,60,61,7#..5H |
33119-25020 |
US $31.62 |
||
|
33131
|
33131
33131-26020 Retainer, Bearing, Front(Mtm)[01.1984 - 07.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
33131-26020 |
US $70.41 |
||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..MTM |
90311-30115 |
from US $3.94 |
||
|
33132
|
33132
33132-28010 Gasket, Front Bearing Retainer(Mtm)[01.1984 - 07.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
33132-28010 |
from US $3.55 |
||
|
33138
|
33138
33138-28010 Gasket, Intermediate Plate[01.1984 - 07.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
33138-28010 |
US $9.76 |
||
|
33151
|
33151
33151-28010
Retainer, Output Shaft Rear Bearing(Mtm)
[01.1984 - 07.1988] LH51,61,71,YH50,51,53,60,61,63,7#..MTM |
33151-28010 |
— | ||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.23 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161161032
|
9161161032
91611-61032 New Genuine Part |
91611-61032 |
US $2.77 |
||
| replacement | |||||
|
9161161032
|
9161161032
91612-61032 New Genuine Part |
91612-61032 |
US $1.65 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165161045
|
9165161045
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
