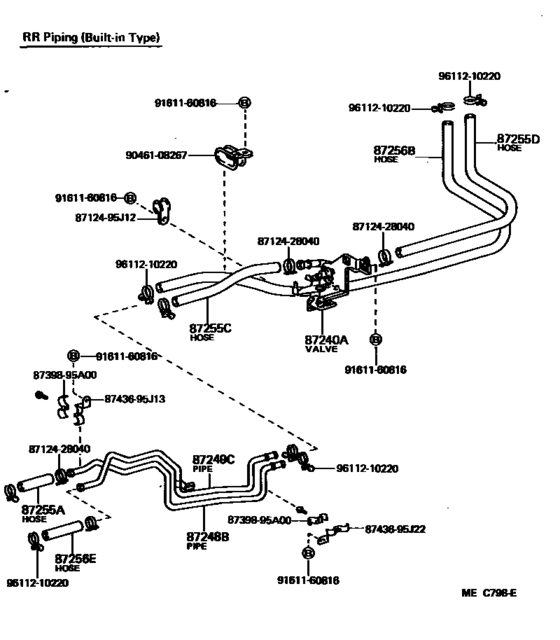

Heating & Air Conditioning - Water Piping ([12.1982 - ] (8212- )LH51,YH60,61,66..LHD..V..EUR) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- General
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- CATEGORY
- M1
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Vehicle Model
- Hiace Van, Commuter Bus
- Seat Type
- U
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87240A
|
87240A
87240-95J01 Valve Assy, Rear Heater WaterREAR HEATER WATER [12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..COM; YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50 ,60..VSG..(4HC,5H)..(03S,09S) |
87240-95J01 |
US $43.83 |
||
|
87248B
|
87248B
87248-95J53
Pipe, Heater Water Inlet, B
[08.1985 - 01.1986] LH51,61..M1; LH51,61..COM |
87248-95J53 |
— | ||
|
87248B
|
87248B
87248-95J66
Pipe, Heater Water Inlet, B
[01.1986 - 08.1987] LH51,61..M1; LH51,61..COM |
87248-95J66 |
— | ||
|
87249C
|
87249C
87248-95J52
Pipe, Heater Water Outlet, C
[08.1985 - 01.1986] LH51,61..M1; LH51,61..COM |
87248-95J52 |
— | ||
|
87249C
|
87249C
87248-95J65
Pipe, Heater Water Outlet, C
[01.1986 - 08.1987] LH51,61..M1; LH51,61..COM |
87248-95J65 |
— | ||
|
87255A
|
87255A
99556-20200 Hose, Water(For Lpg Regulator Outlet)[08.1985 - 08.1987] LH51,61,YH50,51,60,61..COM..(EUR,GEN) *H,L=130; LH51,61,YH51..5H..M1;YH50,61..LHD..V4D..VSG..5H *H,L=130 |
99556-20200 |
from US $6.32 |
||
|
87255C
|
87255C
99552-21000 Hose, Rear Heater Water Inlet, A(From Engine)[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..COM *H,L=520; YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50 ,60..VSG..(4HC,5H)..(03S,09S) *H,L=520 |
99552-21000 |
US $18.93 |
||
| replacement | |||||
|
87255C
|
87255C
99556-21000 Hose, Rear Heater Water Inlet, B[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD..COM *H,L=520; YH51..5H..U;YH51..J..EUR;YH50..V4D..R;LH51,60,61..M1;YH61..V4D..5H..(G,J,R,U);YH50 ,60..VSG..(4HC,5H)..(03S,09S) *H,L=520 |
99556-21000 |
US $21.99 |
||
|
87255D
|
87255D
99556-20490
Hose, Heater Water, Inlet B
[08.1985 - 08.1987] LH51,61,YH51..5H..M1;YH50,61..LHD..V4D..VSG..5H *H,L=380 |
99556-20490 |
— | ||
| replacement | |||||
|
87255D
|
87255D
99556-20500
Hose, Rear Heater Water Inlet, B
[08.1985 - 08.1987] LH51,61,YH51..5H..M1;YH50,61..LHD..V4D..VSG..5H *H,L=380 |
99556-20500 |
— | ||
|
87256B
|
87256B
87245-95J36 Hose, Rear Heater Water Inlet, E(To Heater Unit)REAR HEATER WATER OUTLET, B [08.1986 - 08.1987] LH51,61,YH51..M1;YH61..LHD..V4D..VSG..5H *H,L=980 |
87245-95J36 |
US $19.95 |
||
| replacement | |||||
|
87256B
|
87256B
87245-95761 Hose, Rear Heater Water Outlet, E (To Engine)[08.1986 - 08.1987] LH51,61,YH51..M1;YH61..LHD..V4D..VSG..5H *H,L=980 |
87245-95761 |
US $38 |
||
|
87256B
|
87256B
99556-21000 Hose, Rear Heater Water Inlet, B[08.1985 - 08.1986] YH50..V4D..VSG..N1;LH51,61,YH51,61..V4D..5H..(J,R,U)..EUR *H,L=980 |
99556-21000 |
US $21.99 |
||
|
87256E
|
87256E
99556-20200 Hose, Water(For Lpg Regulator Outlet)[08.1985 - 08.1987] LH51,61..COM *H,L=130; LH5#,61..U *H,L=130 |
99556-20200 |
from US $6.32 |
||
|
8712495J12
|
8712495J12
87124-95J12
New Genuine Part
|
87124-95J12 |
— | ||
| replacement | |||||
|
8712495J12
|
8712495J12
90461-08205 New Genuine Part |
90461-08205 |
US $8.15 |
||
|
8739895A00
|
8739895A00
87398-95A00
Band Assy (for Combustion Heater)
|
87398-95A00 |
— | ||
|
8743695J13
|
8743695J13
87436-95J13
New Genuine Part
|
87436-95J13 |
— | ||
|
8743695J22
|
8743695J22
87436-95J22
New Genuine Part
|
87436-95J22 |
— | ||
|
8712428040
|
8712428040
87124-28040
Clamp, Heater
|
87124-28040 |
— | ||
|
9046108267
|
9046108267
90461-08267
New Genuine Part
|
90461-08267 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9611210220
|
9611210220
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10220 |
US $0.61 |
||
