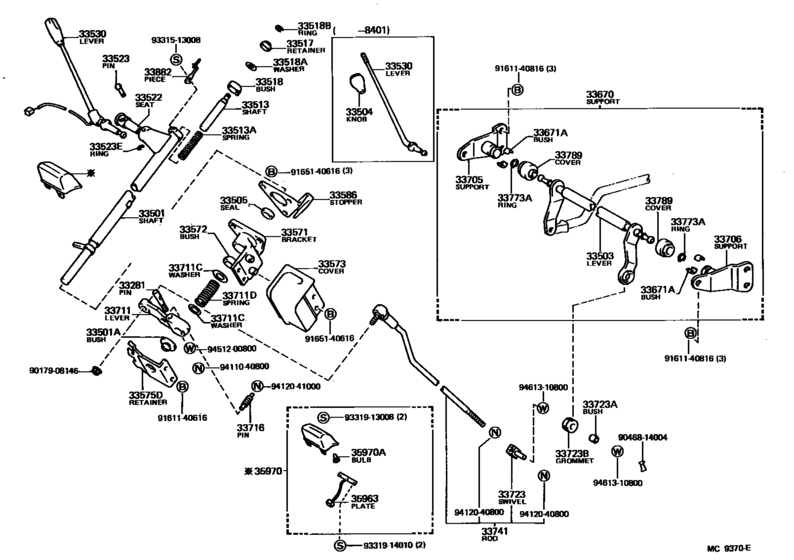

Control Shaft & Crossshaft ([12.1982 - 08.1987] (8212-8708)4HC..EUR) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- CATEGORY
- N1
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 4HC
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33281
|
33281
33281-30020 Pin, Lever Lock (For Column Shift)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
33281-30020 |
US $3.49 |
||
|
33501
|
33501
33501-26171 Shaft Sub-Assy, Control (For Column Shift)CONTROL (FOR COLUMN SHIFT) [01.1984 - 08.1987] LH51,61,YH51,61..4HC..EUR |
33501-26171 |
US $87.36 |
||
|
33501A
|
33501A
33615-26010 Bush (For Column Shift Control Shaft)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
33615-26010 |
US $9.46 |
||
|
33503
|
33503
33503-26100 Lever Sub-Assy, Shift(For Column Shift)SHIFT(FOR COLUMN SHIFT) [12.1982 - 08.1987] LH50,51,61,YH50,51,61..4HC..EUR |
33503-26100 |
US $41.35 |
||
|
33505
|
33505
33505-30010 Seal Sub-Assy, Control Shaft Dust (For Column Shift)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
33505-30010 |
US $2.45 |
||
|
33513
|
33513
33513-36020
Shaft, Control Shaft Bracket, Upper
[12.1982 - 07.1988] LH50,51,61,YH50,51,53,60,61,63..4H,4HC |
33513-36020 |
— | ||
|
33513A
|
33513A
90501-14395 Spring, Compression (For Bracket Upper Shaft)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
90501-14395 |
US $2.97 |
||
|
33517
|
33517
33517-30010 Retainer, Control Shaft Upper Spring[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
33517-30010 |
US $4.66 |
||
|
33518
|
33518
33518-36010
Bush, Upper Control Shaft Piece
[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
33518-36010 |
— | ||
| replacement | |||||
|
33518
|
33518
33518-35010 Bush, Upper Control Shaft Piece[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
33518-35010 |
US $12.54 |
||
|
33518A
|
33518A
33515-30010 Seat, Control Shaft Upper[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
33515-30010 |
US $5.73 |
||
|
33518B
|
33518B
90523-06019 Ring, E (For Upper Control Shaft Piece Bush)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
90523-06019 |
US $3.94 |
||
|
33522
|
33522
33522-36010 Seat, Shift Lever Plate (For Column Shift)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
33522-36010 |
from US $4.06 |
||
|
33523
|
33523
90249-07001 Pin, Shift Lever (For Column Shift)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
90249-07001 |
US $3.14 |
||
|
33523E
|
33523E
96160-00500 Ring, E(For Over Center Lever)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
96160-00500 |
from US $1.01 |
||
|
33530
|
33530
33530-26030 Lever Assy, Shift (For Column Shift)SHIFT (FOR COLUMN SHIFT) [01.1984 - 08.1987] LH51,61,YH51,61..4HC..EUR |
33530-26030 |
US $160.16 |
||
| replacement | |||||
|
33530
|
33530
33530-26031 Lever Assy, Shift (For Column Shift)SHIFT (FOR COLUMN SHIFT) [01.1984 - 08.1987] LH51,61,YH51,61..4HC..EUR |
33530-26031 |
US $160.16 |
||
|
33571
|
33571
33571-26030 Bracket, Control Shaft, Lower (For Column Shift)CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) [12.1982 - 08.1987] LH51,61,YH51,61..4HC..EUR |
33571-26030 |
US $54.31 |
||
|
33572
|
33572
33572-30020 Bush, Control Shaft Lower (For Column Shift)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
33572-30020 |
US $4.22 |
||
|
33573
|
33573
33573-26040 Cover, Control Shaft Dust, LowerCONTROL SHAFT DUST, LOWER [12.1982 - 08.1987] LH51,61,YH51,61..4HC..EUR |
33573-26040 |
US $40.91 |
||
|
33575D
|
33575D
33575-26030 Retainer, Control Shift Lever (For Column Shift)CONTROL SHIFT LEVER (FOR COLUMN SHIFT) [12.1982 - 08.1987] LH51,61,YH51,61..4HC..EUR |
33575-26030 |
US $42.22 |
||
|
33586
|
33586
33586-26011 Stopper, Control Shift Lever[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
33586-26011 |
US $19.36 |
||
|
33670
|
33670
33670-26311 Support Assy, Control Rod (For Column Shift)CONTROL ROD (FOR COLUMN SHIFT) [12.1982 - 08.1987] LH50,51,61,YH50,51,61..4HC..EUR |
33670-26311 |
US $94.64 |
||
|
33671A
|
33671A
33772-20010 Bush (For Control Rod Support)[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD |
33772-20010 |
from US $4.43 |
||
|
33705
|
33705
33705-26061 Support Sub-Assy, Cross Shaft (For Body Side)CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) [12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD |
33705-26061 |
US $15.87 |
||
|
33706
|
33706
33706-26040 Support Sub-Assy, Cross Shaft, No.2 (For Column Shift)CROSS SHAFT, NO.2 (FOR COLUMN SHIFT) [12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD |
33706-26040 |
US $15.43 |
||
|
33711
|
33711
33711-26010 Lever, Control Shaft (For Column Shift)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
33711-26010 |
US $23.88 |
||
|
33711C
|
33711C
90201-17044 Washer, Plate (For Control Shift Lever)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC T=1.2,T=1.2 |
90201-17044 |
US $1.46 |
||
|
33711C
|
33711C
90201-17048 Washer, Shift Lever Shaft Housing, No.2[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC T=1.0,T=1.0 |
90201-17048 |
US $2.48 |
||
|
33711D
|
33711D
90501-12061 Spring, Compression (For Control Shaft Lever)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
90501-12061 |
US $3.49 |
||
|
33716
|
33716
33716-26010 Pin, Control Shaft Lever Stopper[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
33716-26010 |
US $9.17 |
||
|
33723
|
33723
33723-10020 Swivel, Connecting Rod (For Column Shift)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
33723-10020 |
US $9.78 |
||
|
33723A
|
33723A
90389-08005 Bushing(For Gear Selecting Rod)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
90389-08005 |
from US $1.77 |
||
|
33723B
|
33723B
90480-17177 Grommet (For Transmission Control Rod)[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..4H,4HC,5H |
90480-17177 |
from US $2.07 |
||
|
33741
|
33741
33710-26110 Rod, Gear Shifting, No.1 (For Column Shift)GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) [12.1982 - 08.1987] LH50,51,61,YH50,51,61..4HC..EUR |
33710-26110 |
US $39.31 |
||
|
33773A
|
33773A
96151-01600
Ring, Snap
[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC CONTROL SUPPORT SIDE |
96151-01600 |
— | ||
|
33789
|
33789
33775-28040 Cover, Cross Shaft Dust (For Column Shift)[12.1982 - 08.1987] LH50,51,60,61,YH50,51,60,61..LHD |
33775-28040 |
from US $9.61 |
||
|
33882
|
33882
33882-26020 Piece, Control Shaft, UpperCONTROL SHAFT, UPPER [12.1982 - 08.1987] LH51,61,YH51,61..4HC..EUR |
33882-26020 |
US $19.22 |
||
|
35963
|
35963
35963-26030 Plate, Indicator Lamp Earth (For Column Shift)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC |
35963-26030 |
US $28.39 |
||
|
35970
|
35970
35970-26060-05 Housing Assy, Position Indicator (For Column Shift)POSITION INDICATOR (FOR COLUMN SHIFT) [12.1982 - 08.1985] LH5#,61,YH5#,61..4HC..EUR BEIGE,BEIGE |
35970-26060-05 |
US $183.46 |
||
|
35970
|
35970
35970-26060-06 Housing Assy, Position Indicator (For Column Shift)POSITION INDICATOR (FOR COLUMN SHIFT) [08.1985 - 08.1987] LH51,61,YH51,61..4HC..EUR BROWN,BROWN |
35970-26060-06 |
US $183.46 |
||
|
35970A
|
35970A
90981-11024 Bulb (For Column Shift Position Indicator Lamp)[12.1982 - 07.1988] LH50,51,61,YH50,51,53,61,63..4HC 12V 1.4W |
90981-11024 |
US $5.38 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9331513008
|
9331513008
93315-13008 New Genuine Part |
93315-13008 |
US $1.31 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
