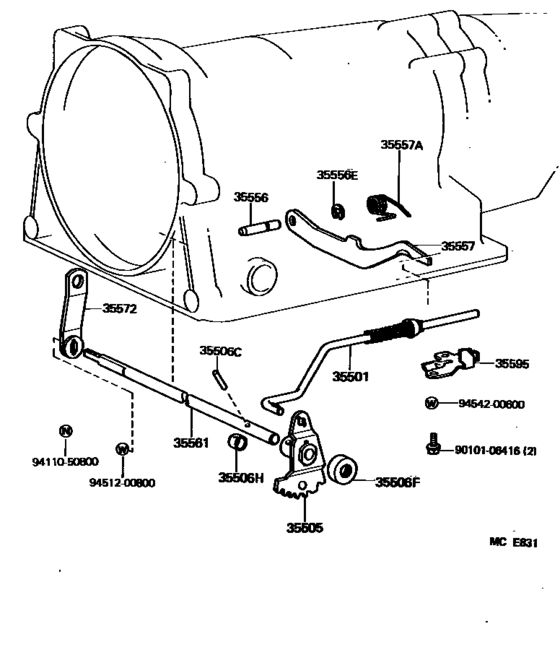

Throttle Link & Valve Lever (Atm) ([08.1987 - ] (8708- )4HC) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- LH51
- grade
- STD
- body
- V
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-26020 Rod Sub-Assy, Parking Lock[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
35501-26020 |
US $16.02 |
||
|
35505
|
35505
35505-22040 Lever Sub-Assy, Manual Valve[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
35505-22040 |
US $24.90 |
||
|
35506C
|
35506C
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-11001
Seal, Oil (For Manual Valve Lever Shaft)
[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
90311-11001 |
— | ||
| replacement | |||||
|
35506F
|
35506F
90311-11003 Seal, Oil (For Manual Valve Lever Shaft)[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
90311-11003 |
from US $4.66 |
||
|
35506H
|
35506H
90560-20003
Spacer (For Transfer Manual Valve Lever)
[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
90560-20003 |
— | ||
| replacement | |||||
|
35506H
|
35506H
90560-20025 Spacer (For Manual Valve Lever)[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
90560-20025 |
from US $1.66 |
||
|
35556
|
35556
35556-26010 Shaft, Parking Lock Pawl[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
35556-26010 |
US $8.15 |
||
|
35556E
|
35556E
90523-08021 Ring, E (For Parking Lock Pawl Shaft)[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
90523-08021 |
US $1.46 |
||
|
35557
|
35557
35557-26010 Pawl, Parking Lock[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
35557-26010 |
US $45.72 |
||
| replacement | |||||
|
35557
|
35557
35557-26020 Pawl, Parking Lock[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
35557-26020 |
US $29.99 |
||
|
35557A
|
35557A
90508-21001 Spring, Torsion (For Parking Lock Pawl)[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
90508-21001 |
US $2.62 |
||
|
35561
|
35561
35561-40010 Shaft Sub-Assy, Manual Valve Lever[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
35561-40010 |
US $38.88 |
||
|
35572
|
35572
35572-26010
Lever, Transmission Control Shaft, Rh
[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
35572-26010 |
— | ||
|
35595
|
35595
35595-40010 Bracket, Parking Lock Pawl[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
35595-40010 |
US $12.67 |
||
|
9010106416
|
9010106416
90101-06416 New Genuine Part |
90101-06416 |
US $2.33 |
||
| replacement | |||||
|
9010106416
|
9010106416
90101-06024 New Genuine Part |
90101-06024 |
US $0.87 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9454200600
|
9454200600
94542-00600 New Genuine Part |
94542-00600 |
US $3.20 |
||
