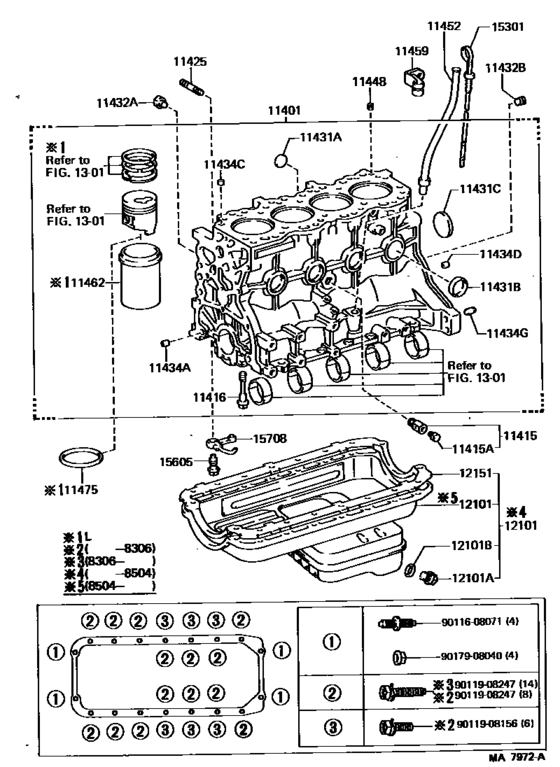

Cylinder Block ([04.1983 - ] (8304- )L,2L) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- General
- Frame
- LH51
- grade
- STD
- body
- COM
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- Seating Capacity
- 12S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59245 Block Sub-Assy, Cylinder[01.1984 - 07.1984] 2L..LH51,61,71 |
11401-59245 |
US $3,785.60 |
||
| replacements | |||||
|
11401
|
11401
11401-59247 Block Sub-Assy, Cylinder[01.1984 - 07.1984] 2L..LH51,61,71 |
11401-59247 |
US $3,741.92 |
||
|
11401
|
11401
31349-26020 Insulator, Clutch Cable Heat[01.1984 - 07.1984] 2L..LH51,61,71 |
31349-26020 |
US $29.70 |
||
|
11401
|
11401
11401-59246 Block Sub-Assy, Cylinder[07.1984 - 08.1987] 2L..LH5#,6#,71 |
11401-59246 |
US $3,960.32 |
||
| replacements | |||||
|
11401
|
11401
11401-59247 Block Sub-Assy, Cylinder[07.1984 - 08.1987] 2L..LH5#,6#,71 |
11401-59247 |
US $3,741.92 |
||
|
11401
|
11401
31349-26020 Insulator, Clutch Cable Heat[07.1984 - 08.1987] 2L..LH5#,6#,71 |
31349-26020 |
US $29.70 |
||
|
11415
|
11415
96431-03833
Cock Sub-Assy, Water Drain(For Cylinder Block)
[12.1982 - 06.1984] L,2L..LH5#,6#,7#; 2Y#,3Y..YH5#,6#,71 |
96431-03833 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[12.1982 - 06.1984] L,2L..LH5#,6#,7#; 2Y#,3Y..YH5#,6#,71 |
96431-53828 |
US $8.12 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[04.1985 - 07.1988] 2L..LH5#,6#,71; 2Y,3Y,4Y..YH5#,6#,71 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[12.1982 - 06.1984] L,2L..LH5#,6#,7#; 2Y#,3Y..YH5#,6#,71 |
96431-23814 |
from US $6.94 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[04.1985 - 07.1988] 2L..LH5#,6#,71 L=24; 2Y,3Y,4Y..YH5#,6#,71 L=24 |
96432-23814 |
— | ||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[12.1982 - 08.1987] L,2L..LH5#,6#,7# *12-1.25PX80-24 |
90910-02061 |
US $4.12 |
||
|
11425
|
11425
90116-08157 Bolt, Stud(For Oil Filter)[12.1982 - 08.1987] L,2L..LH5#,6#,7# L=36,S=11&14 |
90116-08157 |
US $1.75 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[12.1982 - 08.1987] L,2L..LH5#,6#,7# OD=25 |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[12.1982 - 07.1988] L,2L..LH5#,6#,7# OD=35; 2Y#,3Y,4Y..YH5#,6#,71 OD=35 |
96411-43500 |
from US $3.59 |
||
|
11431C
|
11431C
96411-45000 Plug, Tight, No.1(For Cam Housing)[12.1982 - 07.1988] L,2L..LH5#,6#,7# OD=50; 2Y#,3Y,4Y..YH5#,6#,71 OD=50 |
96411-45000 |
from US $3.84 |
||
|
11432A
|
11432A
90345-51006 Plug, W/head Taper Screw, No.2[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
90345-51006 |
from US $0.87 |
||
|
11432B
|
11432B
90344-53002 Plug, W/head Taper Screw, No.1[06.1983 - 08.1987] L,2L..LH5#,6#,7# |
90344-53002 |
US $2.18 |
||
|
11434A
|
11434A
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[12.1982 - 08.1987] L,2L..LH5#,6#,7# L=11,OD=11,L=11,OD=11 |
90253-11001 |
US $2.15 |
||
|
11434C
|
11434C
90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)[12.1982 - 08.1987] L,2L..LH5#,6#,7# L=7,OD=14.5,L=7,OD=14.5 |
90253-15005 |
from US $1.56 |
||
|
11434D
|
11434D
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[12.1982 - 08.1987] L,2L..LH5#,6#,7# L=11,OD=11,L=11,OD=11 |
90253-11001 |
US $2.15 |
||
|
11434G
|
11434G
90250-10192 Pin, Straight(For Timing Gear Cover Set)[12.1982 - 08.1987] L,2L..LH5#,6#,7# L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
11448-54020 |
US $3.32 |
||
|
11452
|
11452
11452-54010
Guide, Oil Level Gage
[12.1982 - 08.1987] L,2L..LH50,51,60,61,7# |
11452-54010 |
— | ||
|
11459
|
11459
90461-10271 Support, Oil Level Gage Guide[12.1982 - 08.1987] L,2L..LH50,51,60,61,7# |
90461-10271 |
US $1.14 |
||
|
12101
|
12101
12101-54041 Pan Sub-Assy, Oil[04.1985 - 08.1985] 2L..LH51,61,71 |
12101-54041 |
US $607.15 |
||
| replacements | |||||
|
12101
|
12101
90430-12031 Gasket (For Oil Pan Drain Plug)[04.1985 - 08.1985] 2L..LH51,61,71 |
90430-12031 |
from US $0.84 |
||
|
12101
|
12101
12101-54043 Pan Sub-assy, Oil[04.1985 - 08.1985] 2L..LH51,61,71 |
12101-54043 |
US $610.06 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[04.1985 - 08.1985] 2L..LH51,61,71 |
90341-12012 |
from US $2.87 |
||
|
12101
|
12101
12101-54042 Pan Sub-Assy, Oil[02.1986 - 08.1987] 2L..LH51,61,71..ARL,GEN |
12101-54042 |
US $610.06 |
||
| replacements | |||||
|
12101
|
12101
90430-12031 Gasket (For Oil Pan Drain Plug)[02.1986 - 08.1987] 2L..LH51,61,71..ARL,GEN |
90430-12031 |
from US $0.84 |
||
|
12101
|
12101
12101-54043 Pan Sub-assy, Oil[02.1986 - 08.1987] 2L..LH51,61,71..ARL,GEN |
12101-54043 |
US $610.06 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[02.1986 - 08.1987] 2L..LH51,61,71..ARL,GEN |
90341-12012 |
from US $2.87 |
||
|
12101
|
12101
12101-59105 Pan Sub-Assy, Oil[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
12101-59105 |
US $604.24 |
||
| replacements | |||||
|
12101
|
12101
12101-54043 Pan Sub-assy, Oil[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
12101-54043 |
US $610.06 |
||
|
12101
|
12101
90033-41020 Plug(For Oil Pan Drain)[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
90033-41020 |
from US $2.18 |
||
|
12101
|
12101
12151-54020 Gasket, Oil Pan[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
12151-54020 |
from US $28.86 |
||
|
12101
|
12101
90430-18023 Gasket(For Oil Pan)[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
90430-18023 |
from US $1.03 |
||
|
12101
|
12101
90430-12031 Gasket (For Oil Pan Drain Plug)[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
90430-12031 |
from US $0.84 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[12.1982 - 04.1985] L,2L..LH5#,6#,7# |
90341-12012 |
from US $2.87 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[12.1982 - 04.1985] L,2L..LH5#,6#,7#; 2Y#,3Y..YH5#,6#,71 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[12.1982 - 04.1985] L,2L..LH5#,6#,7#; 2Y#,3Y..YH5#,6#,71 |
90033-41020 |
from US $2.18 |
||
|
12101B
|
12101B
90430-18013
Gasket(For Oil Pan Drain Plug)
[11.1984 - 08.1987] 2L..LH5#,6#,71 |
90430-18013 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[11.1984 - 08.1987] 2L..LH5#,6#,71 |
90430-18023 |
from US $1.03 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[12.1982 - 11.1984] L,2L..LH5#,6#,7# ID=18; 2Y#,3Y..YH5#,6#,71 ID=18 |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[12.1982 - 11.1984] L,2L..LH5#,6#,7# ID=18; 2Y#,3Y..YH5#,6#,71 ID=18 |
90430-18023 |
from US $1.03 |
||
|
12151
|
12151
12151-54020 Gasket, Oil Pan[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
12151-54020 |
from US $28.86 |
||
|
15301
|
15301
15301-54030
Gage Sub-Assy, Oil Level
[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
15301-54030 |
— | ||
|
15605
|
15605
15605-54010 Valve Sub-Assy, Oil Check[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
15605-54010 |
from US $9.36 |
||
|
15708
|
15708
15708-54010 Nozzle Sub-Assy, Oil, No.1[12.1982 - 08.1987] L,2L..LH5#,6#,7# |
15708-54010 |
from US $18.51 |
||
|
9011608071
|
9011608071
90116-08071 New Genuine Part |
90116-08071 |
US $2.77 |
||
| replacement | |||||
|
9011608071
|
9011608071
90116-08279 BOLT STUD |
90116-08279 |
from US $1.29 |
||
|
9011908156
|
9011908156
90119-08156 New Genuine Part |
90119-08156 |
US $3.20 |
||
|
9011908247
|
9011908247
90119-08247 Bolt(For Manual Transmission Oil Pan Setting) |
90119-08247 |
US $1.75 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
