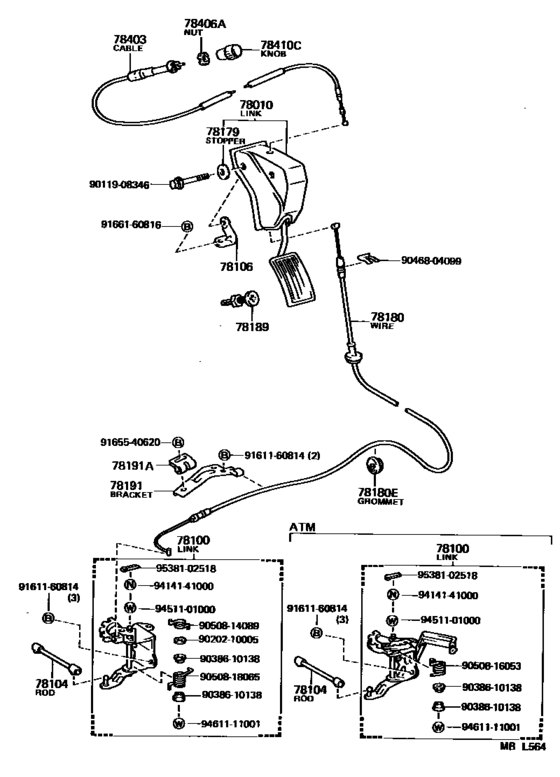

Accelerator Link ([12.1982 - ] (8212- )LH50,51,60,61,7#..RHD) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- General
- Frame
- LH51
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78202-95J00 Link, Accelerator[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD |
78202-95J00 |
US $176.47 |
||
|
78100
|
78100
78100-95J06 Link Assy, Accelerator[01.1984 - 08.1987] LH5#,6#,71..MTM |
78100-95J06 |
US $51.11 |
||
|
78104
|
78104
78104-30120 Rod Sub-Assy, Accelerator Connecting, No.2[12.1982 - 08.1987] LH5#,6#,7# |
78104-30120 |
US $11.36 |
||
|
78106
|
78106
78012-95J00
Bracket Sub-Assy, Accelerator Pedal Rod
[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD |
78012-95J00 |
— | ||
|
78179
|
78179
78119-95J00 Stopper, Accelerator Pedal Rod[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD |
78119-95J00 |
US $2.62 |
||
| replacement | |||||
|
78179
|
78179
78119-37010 Stopper, Accelerator Pedal Rod[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD |
78119-37010 |
US $0.58 |
||
|
78180
|
78180
78150-95J01
Wire Assy, Accelerator Flexible
[12.1982 - 08.1987] LH50,51,60,61,7#..RHD |
78150-95J01 |
— | ||
|
78180E
|
78180E
90480-26043
Grommet (For Accelerator Wire)
[12.1982 - 07.1988] LH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD |
90480-26043 |
— | ||
|
78189
|
78189
78208-95J00 Bolt, Accelerator Pedal Stopper[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7# |
78208-95J00 |
US $8.21 |
||
|
78191
|
78191
78109-95J00 Bracket Sub-Assy, Accelerator Wire Clamp[12.1982 - 08.1987] LH5#,6#,7# |
78109-95J00 |
US $22.57 |
||
|
78191A
|
78191A
90461-10434 Clamp (For Accelerator Wire Set)[12.1982 - 08.1987] LH5#,6#,7# |
90461-10434 |
US $3.06 |
||
|
78403
|
78403
78403-95J00 Cable Sub-Assy, Throttle Control[12.1982 - 08.1985] LH5#,6#,7#..RHD |
78403-95J00 |
US $77.17 |
||
|
78403
|
78403
78403-95J03 Cable Sub-Assy, Throttle Control[08.1985 - 08.1987] LH51,61,71..RHD |
78403-95J03 |
US $46.88 |
||
|
78406A
|
78406A
78314-95010 Nut, Choke[08.1985 - 08.1987] LH5#,6#,71 |
78314-95010 |
from US $1.88 |
||
|
78406A
|
78406A
78413-95J00 Nut, Choke[12.1982 - 08.1985] LH5#,6#,7# |
78413-95J00 |
US $3.35 |
||
|
78410C
|
78410C
78411-22010 Knob, Throttle Cable[12.1982 - 08.1987] LH5#,6#,7# |
78411-22010 |
US $8.91 |
||
|
9011908346
|
9011908346
90119-08346 New Genuine Part |
90119-08346 |
US $11.36 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $4.30 |
||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9050814089
|
9050814089
90508-14089
New Genuine Part
|
90508-14089 |
— | ||
|
9050816053
|
9050816053
90508-16053 Spring, Torsion (For Accelerator Link) |
90508-16053 |
US $4.22 |
||
|
9050818065
|
9050818065
90508-18065
New Genuine Part
|
90508-18065 |
— | ||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9166160816
|
9166160816
91661-60816 Bolt |
91661-60816 |
US $2.33 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $3.23 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.43 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
