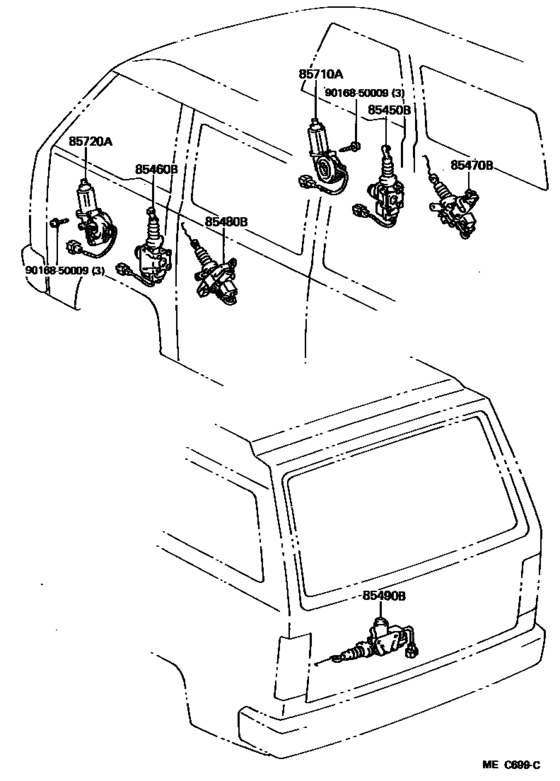

Door Motor & Door Solenoid ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85460B
|
85460B
85460-95J00 Motor Assy, Door Control, Front Lh[01.1984 - 08.1987] LH51,YH51..07S,08S; LH5#,6#,YH50,51,61..GL |
85460-95J00 |
US $221.31 |
||
|
85480B
|
85480B
85480-95J00 Motor Assy, Door Control, Rear Lh[01.1984 - 08.1987] LH51,YH51..07S,08S; LH5#,6#,YH50,51,61..GL |
85480-95J00 |
US $221.31 |
||
|
85490B
|
85490B
85490-95J00 Motor Assy, Back Door Control[01.1984 - 08.1987] LH51,YH51..07S,08S; LH5#,6#,YH50,51,61..GL |
85490-95J00 |
US $221.31 |
||
|
85710A
|
85710A
85720-95J00 Motor Assy, Power Window Regulator, Front Rh[12.1982 - 07.1985] LH5#,YH51..08S |
85720-95J00 |
US $342.16 |
||
| replacement | |||||
|
85710A
|
85710A
85720-95J01 Motor Assy, Power Window Regulator, Front Rh[12.1982 - 07.1985] LH5#,YH51..08S |
85720-95J01 |
US $345.07 |
||
|
85710A
|
85710A
85720-95J01 Motor Assy, Power Window Regulator, Front Rh[07.1985 - 08.1987] LH51,YH51..07S,08S |
85720-95J01 |
US $345.07 |
||
|
85720A
|
85720A
85710-95J00 Motor Assy, Power Window Regulator, Front Lh[12.1982 - 07.1985] LH5#,YH51..08S |
85710-95J00 |
US $342.16 |
||
| replacement | |||||
|
85720A
|
85720A
85710-95J01 Motor Assy, Power Window Regulator, Front Lh[12.1982 - 07.1985] LH5#,YH51..08S |
85710-95J01 |
US $345.07 |
||
|
85720A
|
85720A
85710-95J01 Motor Assy, Power Window Regulator, Front Lh[07.1985 - 08.1987] LH51,YH51..07S,08S |
85710-95J01 |
US $345.07 |
||
|
9016850009
|
9016850009
90168-50009 New Genuine Part |
90168-50009 |
US $1.89 |
||
