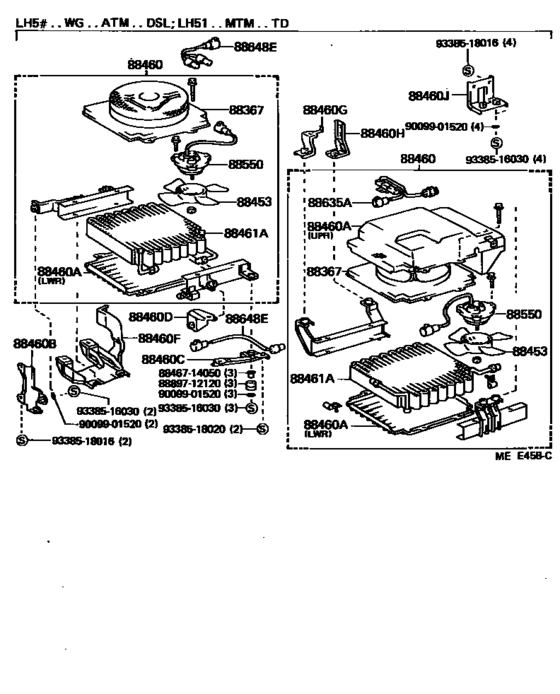

Heating & Air Conditioning - Cooler Piping ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88367
|
88367
88454-95J00
Shroud, Cooler Blower Fan
[12.1982 - 04.1986] YH51,61,71..07S,08S,09S,10S,15S; LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
88454-95J00 |
— | ||
|
88367
|
88367
88454-95J03
Shroud, Cooler Blower Fan
[04.1986 -] YH51,61,71..07S,08S,09S,10S,15S; LH51,61,71..MTM..DSL FR CROSS MEMBER |
88454-95J03 |
— | ||
|
88453
|
88453
11690-17702 Fan, Cooling (For Condenser)[12.1982 - 04.1986] YH51,61,71..07S,08S,09S,10S,15S; LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
11690-17702 |
US $42.08 |
||
|
88453
|
88453
88453-10010
Fan, Cooling (For Condenser)
[04.1986 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S; LH51,61,71..MTM..DSL FR CROSS MEMBER; LH51..4FC..TD FR UNDER FLOOR |
88453-10010 |
— | ||
|
88453
|
88453
88453-28010
Fan, No.2
[09.1986 - 08.1987] LH51..07S,08S |
88453-28010 |
— | ||
|
88453
|
88453
88453-87001
Fan, Cooling (For Condenser)
[12.1982 - 08.1987] LH50,51,60,61,7#..(08S,09S,10S,15S)..DSL FR & RR UNDER FLOOR |
88453-87001 |
— | ||
|
88460
|
88460
88460-95J03 Condenser Assy, Cooler[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER; LH50,51,60,61,7#..MTM..(08S,09S,10S,15S)..DSL FR CROSS MEMBER,W/*ODAC |
88460-95J03 |
US $805.17 |
||
|
88460
|
88460
88460-95J06 Condenser Assy, Cooler[12.1982 - 08.1987] LH50,51,60,61,7#..MTM..(08S,09S,10S,15S)..DSL FR UNDER FLOOR,W/*ODAC |
88460-95J06 |
US $805.17 |
||
|
88460A
|
88460A
88890-95J00
Cover, Cooler Condenser
[12.1982 - 08.1987] LH50,51,60,61,7#..MTM..(08S,09S,10S,15S)..DSL |
88890-95J00 |
— | ||
|
88460B
|
88460B
88688-95J06
Bracket, Cooler Condenser, No.1
[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S; LH50,51,60,61,7#..MTM..DSL |
88688-95J06 |
— | ||
|
88460C
|
88460C
88688-95J05
Bracket, Cooler Condenser, No.2
[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S; LH50,51,60,61,7#..MTM..DSL |
88688-95J05 |
— | ||
|
88460D
|
88460D
88688-95J56
Bracket, Cooler Condenser, No.3
[12.1982 - 08.1987] LH50,51,60,61,YH51,61..WG; LH50,51,60,61,7#..COM,V; YH61,71..09S,15S |
88688-95J56 |
— | ||
|
88460F
|
88460F
88688-95J00
Bracket, Cooler Condenser, No.4
[12.1982 - 08.1987] LH50,51,60,61,7#..(08S,09S,10S,15S)..DSL |
88688-95J00 |
— | ||
|
88460G
|
88460G
88688-95J12
Bracket, Cooler Condenser, No.5
[12.1982 - 08.1987] LH50,51,60,61,7#..MTM..(08S,09S,10S,15S)..DSL |
88688-95J12 |
— | ||
|
88461A
|
88461A
88461-95J01 Core, Cooler Condenser[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S FR CROSS MEMBER; LH50,51,60,61,7#..MTM..(08S,09S,10S,15S)..DSL FR CROSS MEMBER,W/*ODAC |
88461-95J01 |
US $524.16 |
||
|
88461A
|
88461A
88461-95J02 Core, Cooler Condenser[12.1982 - 08.1987] LH50,51,60,61,7#..MTM..(08S,09S,10S,15S)..DSL FR UNDER FLOOR,W/*ODAC |
88461-95J02 |
US $521.25 |
||
| replacement | |||||
|
88461A
|
88461A
88461-95J08 Core, Cooler Condenser[12.1982 - 08.1987] LH50,51,60,61,7#..MTM..(08S,09S,10S,15S)..DSL FR UNDER FLOOR,W/*ODAC |
88461-95J08 |
US $524.16 |
||
|
88550
|
88550
88550-10040 Motor Assy, Blower (For Condenser)[04.1986 - 08.1987] LH51..4FC..TD; YH51,61,71..07S,08S,09S,10S,15S; LH51,61,71..MTM..DSL FR CROSS MEMBER |
88550-10040 |
US $232.96 |
||
|
88550
|
88550
88550-87002 Motor Assy, Blower (For Condenser)[09.1986 - 08.1987] LH51..08S..DSL |
88550-87002 |
US $145.60 |
||
|
88550
|
88550
88550-95J01 Motor Assy, Blower (For Condenser)[12.1982 - 04.1986] YH51,61,71..07S,08S,09S,10S,15S; LH5#,6#,7#..MTM..DSL FR CROSS MEMBER |
88550-95J01 |
US $257.71 |
||
|
88550
|
88550
88550-95J02 Motor Assy, Blower (For Condenser)[12.1982 - 08.1987] LH50,51,60,61,7#..(08S,09S,10S,15S)..DSL FR & RR UNDER FLOOR |
88550-95J02 |
US $259.17 |
||
|
88648E
|
88648E
88648-95J00
Wiring, Cooler
[12.1982 - 08.1987] LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
88648-95J00 |
— | ||
| replacement | |||||
|
88648E
|
88648E
88648-95J20
Wiring, Cooler
[12.1982 - 08.1987] LH50,51,60,61,7#..MTM..(08S,09S,10S,15S) W/*ODAC |
88648-95J20 |
— | ||
|
8846714050
|
8846714050
88467-14050
Cushion, Cooler Condenser, No.1
|
88467-14050 |
— | ||
|
8889712120
|
8889712120
88897-12120
Valve, Cooler Magnet
|
88897-12120 |
— | ||
|
9009901520
|
9009901520
90099-01520
New Genuine Part
|
90099-01520 |
— | ||
|
9338516030
|
9338516030
93385-16030 Lever, Cooler Control, No.1 |
93385-16030 |
US $1.60 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
