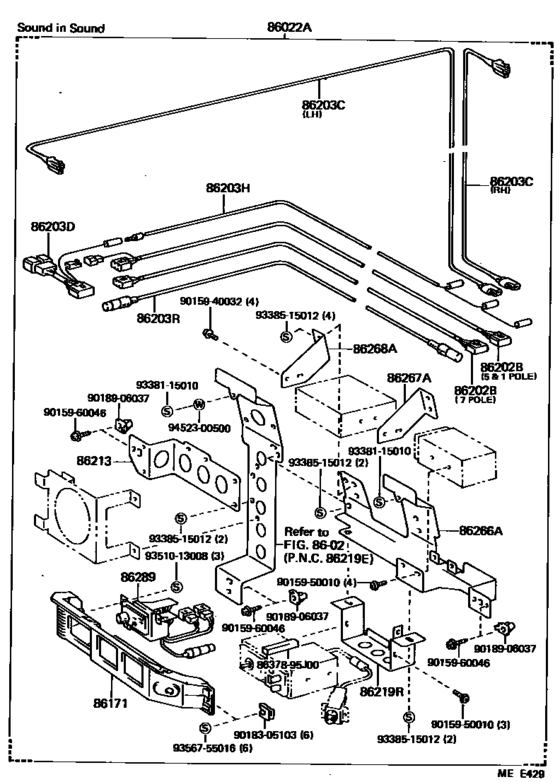

Radio Receiver & Amplifier & Condenser ([01.1984 - ] (8401- )LH51,YH51..07S,08S) Diagram Toyota HIACE
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- LH51G
- grade
- SCM
- body
- WG
- Roof
- SRF
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- DSL
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86022A
|
86022A
86022-29105
Parts Set, Stereo Component Setting
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86022-29105 |
— | ||
|
86171
|
86171
86171-95J01 Base, Radio Remote Control[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86171-95J01 |
US $50.67 |
||
|
86202B
|
86202B
86202-95J11
Wire, Tape Player
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS,5 & 1 POLE |
86202-95J11 |
— | ||
|
86202B
|
86202B
86202-95J13
Wire, Tape Player
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS,7 POLE |
86202-95J13 |
— | ||
|
86203C
|
86203C
86202-95J14
Wire, Speaker, No.5
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS,RH |
86202-95J14 |
— | ||
|
86203C
|
86203C
86202-95J15
Wire, Speaker, No.5
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS,LH |
86202-95J15 |
— | ||
|
86203D
|
86203D
86202-95J10
Wire, Stereo Component, No.1
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86202-95J10 |
— | ||
|
86203R
|
86203R
86202-95J12
Wire Sub-Assy, Rr
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86202-95J12 |
— | ||
|
86213
|
86213
86274-95J01
Bracket, Radio, No.3
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86274-95J01 |
— | ||
|
86219R
|
86219R
86276-95J00
Bracket, Speaker Controller
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86276-95J00 |
— | ||
|
86266A
|
86266A
86275-95J00
Bracket, Stereo Component, No.5
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86275-95J00 |
— | ||
|
86267A
|
86267A
86277-95J00
Bracket, Stereo Component, No.6
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86277-95J00 |
— | ||
|
86268A
|
86268A
86277-95J01
Bracket, Stereo Component, No.7
[01.1984 - 08.1987] LH51,YH51..07S,08S W/*SIS |
86277-95J01 |
— | ||
|
86289
|
86289
86289-95J03 Controller, Stereo Component Speaker[01.1984 - 08.1987] LH51,YH51..07S,08S *SIS RR CONTROLLER |
86289-95J03 |
US $187.82 |
||
|
8637895J00
|
8637895J00
86378-95J00 Spacer, Antenna |
86378-95J00 |
US $4.08 |
||
|
9015940032
|
9015940032
90159-40032
New Genuine Part
|
90159-40032 |
— | ||
|
9015950010
|
9015950010
90159-50010 New Genuine Part |
90159-50010 |
US $1.97 |
||
|
9015960046
|
9015960046
90159-60046 New Genuine Part |
90159-60046 |
US $0.87 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9018906037
|
9018906037
90189-06037 New Genuine Part |
90189-06037 |
US $3.20 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $1.08 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.87 |
||
|
9351013008
|
9351013008
93510-13008 New Genuine Part |
93510-13008 |
US $2.18 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9452300500
|
9452300500
94523-00500 New Genuine Part |
94523-00500 |
US $2.33 |
||
